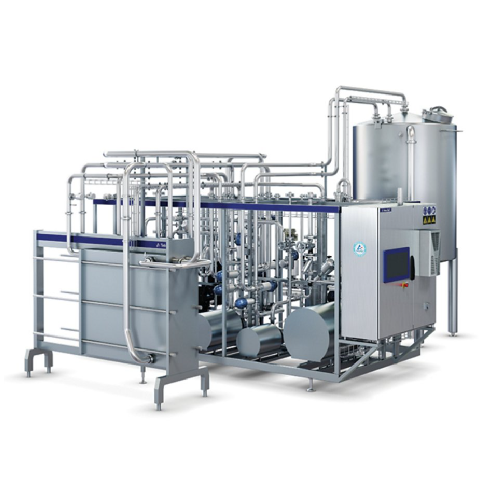

Continuous sugar dissolver for beverage production

Optimize your production line with a system that efficiently dissolves sugar crystals, reducing energy consumption and operational costs while ensuring precise concentration levels for consistent quality in still drinks, carbonated beverages, and confectionary products.

Dissolves and Mixes Sugar for Liquid Products

The Tetra Pak® Continuous Sugar Dissolver effectively addresses the challenges of high-volume sugar integration in liquid food and beverage production. By employing a patented injector system combined with a radial jet mixer, it continuously dissolves crystalline sugar in water, achieving concentrations of up to 65°Brix. Capable of processing 7,000, 15,000, or 25,000 liters per hour, the system is a key asset for efficient production of still drinks, carbonated beverages, ketchup, jam, and a variety of confectionery and dairy products. Its smart hydraulic conveying technology reduces energy consumption by 25% through lower dissolving temperatures and offers unmatched flexibility in plant layout by accommodating several sugar feeding points. The unit’s advanced °Brix set point control maintains precise sugar concentrations, optimizing raw material use and reducing waste. Designed for seamless integration, the Tetra Pak® dissolver’s automatic operations and filling capabilities ensure minimal operator intervention, while negating the need for ATEX requirements due to isolated placement options. Ideal for food, beverage, confectionery, and dairy processors, this solution stands out for its energy efficiency and operational versatility.

Benefits

  • Minimizes operational costs with efficient energy use and reduced temperature requirements.
  • Allows flexible plant layout through independent sugar feeding points and hydraulic conveying.
  • Ensures precise product quality with advanced °Brix accuracy for consistent sugar concentration.
  • Increases production efficiency with continuous and automated sugar dissolving and mixing.
  • Reduces capital investment and maintenance demands by eliminating ATEX requirements.

General


Applications
Carbonated beverages,Ketchup,Confectionary products,Jam,Still drinks,Formulated dairy products
End products
Lemonade,Dairy desserts,Milk chocolate,Strawberry jam,Hard candies,Flavored yogurt,Sparkling water,Cola,Tomato ketchup
Steps before
Crystallization,Sugaring,Big Bag unloading,Silo feeding
Steps after
Filling,Packaging,Bottling,Canning
Input ingredients
crystalline sugar,water
Output ingredients
sugar solution,still drinks,carbonated beverages,ketchup,jam,confectionary products,formulated dairy products
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
7,000–25,000 L/h
Concentration
Up to 65°Brix
Energy Reduction
25%
Dosing Accuracy
Guaranteed °Brix accuracy
Automation
Automatic filling and control
Dissolving Temperature
Lowered for energy efficiency
Integration
Flexible layout with multiple feeding points

Operating Characteristics


Working Mechanism
Continuous
Energy Efficiency
Reduced by 25%
Automation Level
Automatic
Integration Flexibility
Flexible plant layout
Temperature Management
Lower dissolving temperature
Flow Type
Inline Continuous
Control System
Advanced °Brix set point control
Cleaning Method
Automatic filling
Automation Level
PLC

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Tank shape
Cylindrical
Feed method
Hydraulic conveying
Discharge method
Automatic filling
Control panel type
Automated with PLC control

Custom Options


Integration possibilities
Flexible integration and placement
Hydraulic conveying
Flexible plant layout
