Continuous motion packaging for short-cut pasta
Optimize your packing line with a high-speed solution designed for efficiently packaging short-cut pasta and dry granular foods, ensuring superior sealing quality and flexibility in bag types for maximum productivity.
Packs and Seals Dry Granular Food Products

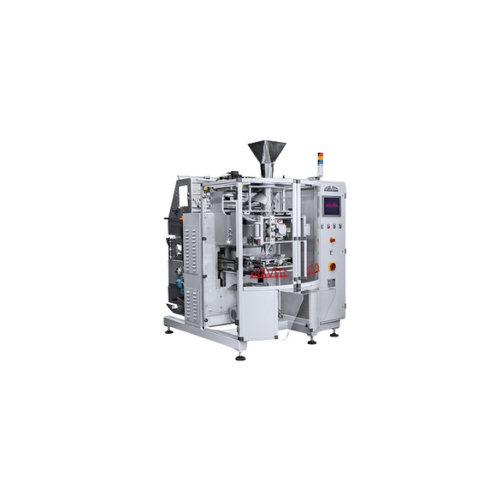

The GEA V-Packer LM Series is engineered by GEA for food manufacturers who demand high-speed and precise packaging of dry granular products. Utilizing a continuous motion system, it efficiently packs and seals various bag formats, including pillow and flat bottom styles. The double motion sealing jaw combines horizontal and vertical movements in a single action, enhancing both speed and sealing quality. The V-Packer LM handles up to 120 bags per minute for pillow bags and features advanced motion control integrated in the PLC, driven by independent brushless motors for consistent operation. Suitable for applications involving short-cut pasta, cereals, and snacks, this machine supports film widths up to 800 mm and adapts to different bag sizes, from 500 g to 5 kg. With options for hot air blast, rotating band, or hot bar seam sealing, the equipment integrates seamlessly into diverse production lines, offering flexibility, efficiency, and maintained product quality.
Benefits
- Enhances production efficiency with high-speed packaging of up to 120 bags per minute.
- Maintains packaging integrity with precise sealing, reducing wastage and rework.
- Accommodates various product sizes, enabling flexibility in production from small to large bag formats.
- Decreases operational costs with independent brushless motors and integrated motion control.
- Simplifies product changeover with easy-to-use touchscreen interface for quick adjustments.
- Applications
- Snacks,Breakfast cereals,Dry granular food,Pasta
- End products
- Cornflakes,Sugar,Rigatoni,Lentils,Rice puffs,Potato chips,Flour,Short-cut pasta,Elbow macaroni,Penne,Granola,Popcorn,Muesli,Rice,Couscous,Pretzels,Fusilli
- Steps before
- Mixing,Forming,Cutting,Drying
- Steps after
- Sealing,Labeling,Palletizing
- Input ingredients
- short-cut pasta,dry granular food,film roll
- Output ingredients
- pillow bags,flat bottom bags,flat bottom bags with 4-side seals,brick bags,double square bottom bags,pillow type bags
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Packaging speed
- up to 120 bags per minute (pillow bags)
- Packaging speed
- up to 100 bags per minute (flat bottom bags)
- Film width
- 600 mm max
- Sealing method
- Double motion sealing jaw
- Sealing type
- Hot air blast / Rotating band heat sealer / Hot bar seam sealer
- Motor type
- Independent brushless motors
- Control system
- Motion control integrated in the PLC
- Bag type
- Flat bottom / Flat bottom with 4-side seals / Pillow
- Electrical control
- SVML Series
- Packaging speed (GEA V-Packer LM-K)
- up to 100 bags per minute (500 g pillow bags)
- Packaging speed (GEA V-Packer LM-K)
- up to 20 bags per minute (5 kg pillow bags)
- Film width (GEA V-Packer LM-K)
- 800 mm max
- Sealing jaw (GEA V-Packer LM-K)
- Interchangeable high-speed hot bar / Heat impulse
- Packaging speed (GEA V-Packer LM-BB)
- up to 90 bags per minute (double square bottom bags)
- Packaging speed (GEA V-Packer LM-BB)
- up to 110 bags per minute (pillow type)
- Carousel system (GEA V-Packer LM-BB)
- Motor-driven DFQ Carousel
- Working mechanism
- Continuous motion
- Sealing method
- Hot air blast/rotating band/hot bar seam
- Automation level
- PLC-controlled
- Bag type flexibility
- Flat bottom,pillow,double square bottom
- Motion control
- Integrated in PLC
- Motor type
- Independent brushless motors
- Packaging speed
- Up to 120 bags/min
- Changeover process
- Touchscreen controlled
- Bag size range
- 500 g to 5 kg
- Film width
- 600 mm - 800 mm
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact design
- Bags types supported
- Flat bottom,pillow,brick
- Film width
- 600 mm
- Film width (evolution model)
- 800 mm
- Sealing type
- Hot air blast,rotating band,hot bar seam
- Packaging machine body
- Vertical
- Bags size capability
- 500 g to 5 kg
- Control panel
- Touchscreen interface
- Motor type
- Brushless motors
- Bag closure options
- Adhesive tape,label
- Control panel type
- Touchscreen panel
- Integration possibilities
- Motion control integrated in PLC
- Sealing options
- Hot air blast / Rotating band heat sealer / Hot bar seam sealer
- Film width adaptability
- 600 mm to 800 mm max
- Sealing jaw type
- Double motion with hot bar or impulse
