Continuous mixers for feed mill applications
Optimize your liquid incorporation process with continuous mixers that ensure precise dosing and even distribution of additives into your compound feeds and pet food formulations, enhancing the quality and consistency of your final products.
Incorporates Liquids into Powders for Uniform Mixtures

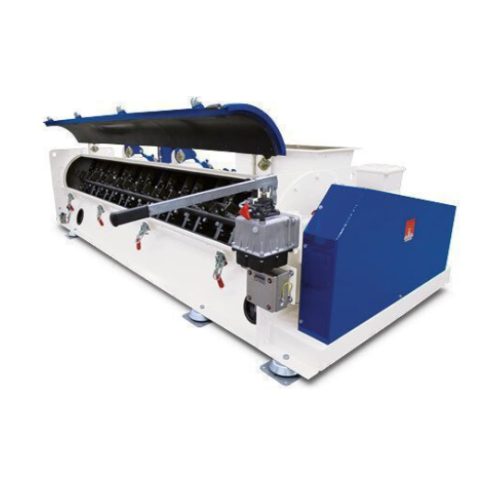

The Ottevanger Continuous Mixers, available in models like the MM 20 and MM 80, seamlessly integrate liquids into powders using a precise dosing pump and flowmeter for automated control. Primarily used in compound feed, pet food, and aqua feed production, these mixers ensure consistent molasses feed blends and feed pellets. With capacities ranging from 20 to 80 tons per hour, they deliver high throughput in continuous, automated operations. Energy efficiency is enhanced with low power consumption at approximately 0.7 kW per ton. The mixers feature a rigid construction with a plastic liner to minimize contamination and wear, while large access doors facilitate easy part replacements. Available material options include stainless steel, meeting ATEX 22 safety standards, and customization options are supported for specific production needs.
Benefits
- Ensures uniform mixing for consistent product quality in high-volume feed production.
- Minimizes operational costs with low power consumption of approximately 0.7 kW per ton.
- Facilitates easy maintenance, reducing downtime with large access doors for quick part replacements.
- Enhances durability and contamination prevention with a robust construction and optional plastic liner.
- Supports safety and regulatory compliance with availability in ATEX 22 certified components.
- Applications
- Pet food,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
- End products
- Molasses feed blend,Soy meal,Protein concentrate,Cat kibble,Vitamin-mineral premix,Tilapia feed pellets
- Steps before
- Dosing,Weighing,Pre-cleaning,Grinding,Product intake
- Steps after
- Coating,Pelleting,Drying,Cooling
- Input ingredients
- molasses,powdered material,meal
- Output ingredients
- mash with evenly divided liquids
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Capacity
- 20-80 t/h
- Motor Power
- 2.2 - 55 kW
- Weight
- 750 - 2025 kg
- Power Consumption
- Approx. 0.7 kW/T
- Mixing Type
- Continuous
- Mixing mechanism
- Screw feeder with adjustable paddles
- Flow control
- Even meal flow into mixer
- Automation level
- Automatic flowmeter control
- Batch vs. continuous operation
- Continuous
- Power consumption
- Approx. 0.7 kW/T
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Liquid integration
- Molasses,oils
- ATEX certification
- ATEX 22 components
- CE marking
- Yes
- Discharge method
- Screw feeder
- Material
- Stainless steel / Custom coatings
- Component Options
- ATEX 22 components
- Drive Type
- V-belt / Direct drive
- Power Options
- Adjustable motor capacity
- Plastic Liner
- Included for contamination reduction
- Mixing Paddle Adjustment
- Adjustable for optimum mixing
- Liquid Dosing
- Dosing pump with adjustable drive
