Continuous level measurement system for powdery or granular materials

Ensure precise inventory management and enhanced safety in your silos with this system that offers real-time level detection for all powdery and granular materials, minimizing material waste and optimizing storage space.

Monitors and Measures Levels of Bulk Solids

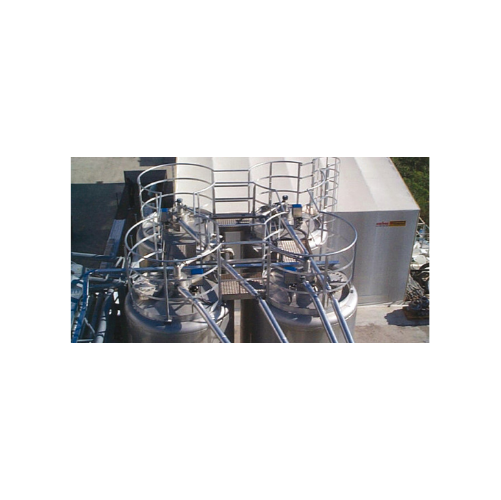

The Continuous Level Measurement System ILS from WAMGROUP offers precise level detection for powdered and granular materials stored in silos. Utilizing a microprocessor-controlled mechanism, it accurately measures material levels by lowering a feel weight into the silo and retracting upon impact. Suitable for industries such as construction and glass processing, it is effective for materials like cement, lime powder, and ready-mix concrete. The ILS features an output of 0/4-20 mA and is ATEX-certified for zone 20/21 environments, ensuring safe operation. With a robust IP65 die-cast casing and intelligent supervision, it efficiently integrates into existing processes, minimizing maintenance and installation efforts. The system’s design eliminates mechanical stress on silo roofs and remains unaffected by dust or moisture variations, making it a reliable choice for high-accuracy applications in diverse industrial settings.

Benefits

  • Enhances inventory accuracy by providing precise level measurements.
  • Reduces labor costs with microprocessor-controlled, automated monitoring.
  • Ensures operational safety with ATEX zone 20/21 certification.
  • Minimizes maintenance needs with a robust, dust and moisture-resistant design.
  • Simplifies integration into existing systems with versatile application support.

General


Applications
Chemicals,Lime,Drymix materials,Construction materials,Powdered materials,Building materials,Granular materials,Glass,Ad-mixtures,Bulk solids
End products
Glass beads,Plastic pellets,Cement powder,Silica sand,Lime powder,Gypsum,Dry mortar,Ready-mix concrete,Building adhesive,Fertilizer granules
Steps before
Material Loading,Silo Filling,Powder Handling,Granular Mixing
Steps after
Material Discharging,Bulk Solids Packaging,Silo Management,Level Data Analysis
Input ingredients
powdery material,granular material,bulk solids
Output ingredients
material level measurement,4-20 mA output
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Output
0/4-20 mA
Certification
ATEX,zone 20/21
Measurement Control
Microprocessor-controlled
Protection Class
IP65
Installation
Simple
Sensitivity
Insensitivity to di-electricity,conductivity,dust,and moisture
Material Compatibility
Suitable for powdery and granular materials
Automation
Microprocessor-controlled
Internal Tape Cleaner
Yes,for tape version
Feel Weights
Different types for various applications

Operating Characteristics


Automation level
Microprocessor-controlled
Batch vs. continuous operation
Continuous
Cleaning method
Internal tape cleaner
Energy efficiency
0/4-20 mA output
Material accommodation
Powdery or granular materials
Sensor Operation
No mechanical force on silo roof

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Protection Class
IP65
Discharge method
Gravity
Casing material
Robust die-cast

Custom Options


Control panel type
Microprocessor-controlled
Integration possibilities
0/4-20 mA Output
Protection class
IP65
Customization of feel weights
Different weights for various applications
Internal tape cleaner
Tape version only
