Continuous freezer for ice cream processing

Achieve exceptional product uniformity and optimal texture with a continuous freezer designed to streamline your ice cream and specialty food production, enhancing efficiency through precise air incorporation and consistent output.

Freezes and Incorporates Air in Ice Cream

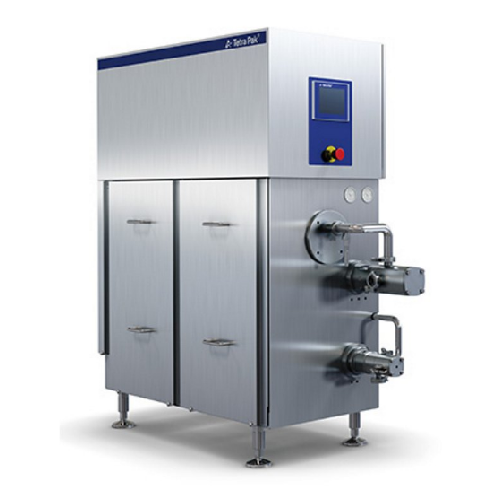

The Tetra Pak® Continuous Freezer S700 A2 is designed for ice cream manufacturers and specialty food producers seeking consistent quality and precise control in their production processes. This self-contained unit is engineered for high-speed, continuous freezing, mixing, and air incorporation, essential for creating diverse products such as ice cream bars, gelato, and sorbet. With a capacity ranging from 150 to 700 liters per hour, it accommodates varying production needs with ease.

Its working principle involves using a mass flow meter to accurately incorporate air, allowing for customizable texture control and minimizing production fluctuations with up to 140% overrun capabilities. The use of IE3 motors ensures high energy efficiency by significantly minimizing power consumption, while a compact footprint maximizes space utilization. The hygienic design features an automatic CIP cycle and a shaft seal that reduces downtime and ensures food safety.

Advanced automation is facilitated through an operator-friendly touch screen control panel, which supports quick start-up processes and stores up to 100 product recipes. Additional options such as dual outlet pumps and variable dasher speeds offer flexibility in production, enabling cost savings and tailored product results. Heavy-duty shaft seal kits and a low-temperature kit enhance durability and energy efficiency, providing optimized production conditions for enhanced texture and mouthfeel of ice cream products.

Benefits

  • Ensures consistent product quality and texture, reducing production variability and waste.
  • Lowers operational costs with energy-efficient IE3 motors and minimized power consumption.
  • Enhances production flexibility with adjustable air incorporation and variable dasher speeds.
  • Increases space efficiency with a compact design, optimizing production area usage.
  • Simplifies cleaning and maintenance, prolonging operational uptime and ensuring food safety.

General


Applications
Coffee,Ice cream,Food products
End products
Gelato,Sorbet,Coffee-flavored ice cream,Ice cream bars
Steps before
Mixing,Ingredient preparation,Batch formulation
Steps after
Hardening,Packaging,Distribution,Quality Control
Input ingredients
ice cream mix,coffee,food mixtures
Output ingredients
ice cream,enhanced texture products,products with air incorporation
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
150 – 700 litres/hr
Energy Efficiency
High,IE3 motors
Bulk Density of Product
Up to 140% overrun
Footprint
1.25 m²
Standard Deviation for Texture
< 2 %
Cycle time
Average start-up process is quick
Discharge method
Dual outlet pumps
Cooling capability
Low Temperature kit freezes an additional -3°C
Overrun Control
Precision with mass flow meter
Operator Control
Touch screen control panel
Automation Level
PLC-controlled

Operating Characteristics


Air incorporation control
Mass flow meter
Batch vs. continuous operation
Inline Continuous
Automation level
PLC / User-friendly touch screen
CIP/SIP
CIP cleaning of rotary pumps
Cleaning method
CIP
Energy efficiency
High efficiency with IE3 motors

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
1.25 m²
Product throughput
150–700 litres/hr
Space efficient design
630 litres product per m²
Discharge method
Dual outlet pumps
Control panel type
User-friendly touch screen

Custom Options


Control panel type
Touch screen
Dual outlet pumps
Available
Variable dasher speed
Adjustable
Heavy-duty shaft seal kits
Available
Low Temperature kit
Available
