Containment system for product loading

Ensure safe handling of hazardous materials with this containment system, designed to prevent dust and contamination during product unloading and feeding. Ideal for processes requiring precise transfer and containment of sensitive powders and granulates.

Ensures Dust-Free Unloading and Containment

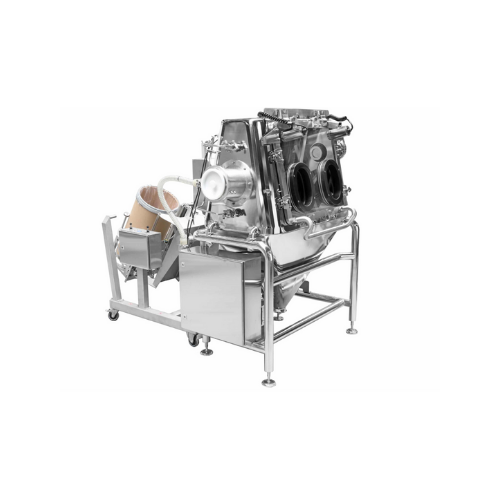

The RNT-CON system by Volkmann provides a robust solution for the safe handling of highly potent and toxic materials. This contained product loading station features a modular design, allowing seamless integration into existing production lines involved in pharmaceuticals, chemicals, and nutraceuticals. It facilitates the dust-free unloading, emptying, and conveying of powders and granulates through a vacuum method, ensuring both product integrity and operator safety. The RNT-CON’s glove box isolator and optional dust lock enhance containment, minimizing exposure to hazardous dust.

Designed for operations within demanding environments, the system accommodates semi-automatic processes and includes options such as lump breakers, continuous Multijector de-dusting, and filtration systems. This ensures efficient processing without sacrificing accuracy or safety.

Volkmann’s RNT-CON also supports comprehensive cleaning protocols, featuring integrated WIP/CIP/SIP systems to maintain hygiene standards and minimize cross-contamination risks. Its adaptability extends to the material handling, offering additional components like roller conveyors, vacuum lifting hoists, and bag compactors for streamlined operations. The system complies with regulations pertinent to pharmaceutical and chemical industries, supporting GMP and FDA standards, making it an ideal choice for maintaining high production quality and compliance.

Benefits

  • Enhances workplace safety with dust-free handling of hazardous materials.
  • Increases operational efficiency through modular integration and semi-automatic processes.
  • Simplifies maintenance with integrated cleaning systems to ensure hygiene compliance.
  • Reduces contamination risks with effective containment solutions and glove box isolators.
  • Supports regulatory compliance, meeting GMP and FDA standards for critical applications.

General


Applications
Chemicals,Nutraceuticals,Bulk materials,Toxic powders,Granulates,Powders,Pharmaceuticals
End products
Steps before
Bag loading,Container loading,Material weighing
Steps after
Material transfer,Vacuum conveying,Batch processing
Input ingredients
highly potent materials,toxic materials,bulk materials,bags,boxes,small containers
Output ingredients
safe unloaded powder,discharged materials,contained materials,empty bags
Market info
Volkmann is known for manufacturing vacuum conveying systems, specializing in pneumatic conveying of bulk materials. Their reputation for innovative and reliable equipment solutions in various industries positions them as a trusted provider for engineered-to-order material handling systems.

Technical Specifications


Containment Level
Dust-free operation
Automation
Semi-automatic
Bag/Container Size
Various
Material Discharge
Vacuum conveying
Modular Design
Customizable
Pressure
Negative pressure unloading
WIP/CIP/SIP
Available
Filtration
Continuous Multijector de-dusting
Capacity
Adaptable to installation requirements
Optional Features
Lump breakers/crushers,agitators

Operating Characteristics


Working Mechanism
Vacuum conveying
Containment Level
Dust and contamination free
Automation level
Semi-automatic
Batch vs. continuous operation
Batch
Integrated Cleaning
WIP/CIP/SIP system
Loading Method
Roller conveyor with dust lock
Material Handling
Glove box isolator
Safety Features
Explosion Risk Prevention / ATEX

Material Compatibility


Abrasion resistance
High
Biological compatibility
Compliant
Corrosive resistance (e.g. acids)
Available
Cleanability
Easy to clean
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Modular design
Yes
Glove box isolator
Integrated
Roller conveyor
Optional
Negative pressure unloading chamber
Included
Batch unloading
Semi-automatic
Bag compactor
Optional
Isolator with glove ports
Included

Custom Options


Modular Design
Flexible functional units and options
Lump Breakers/Crushers and Material Agitators
Available
Flushing Connection
With washing-gun or spray balls
Continuous Multijector De-dusting and Filtration
Available / Central extraction preparation
Door Lock Operation
Foot pedal operated
Inlet Tunnel with Dust Lock
Separate dust extraction option
Roller Conveyor for Bags
Bag separation,vacuum lifting hoist,and extended buffer zone options
Material Discharge with Lump Breaker
Available
Modular Connection for Emptied Bags
Options include bag compactor,endless liner
