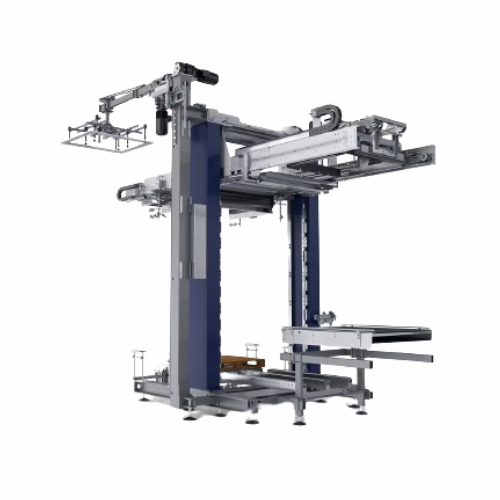

Container sweep-off depalletiser

Enhance your beverage production line efficiency with a high-performance depalletising solution that ensures gentle and precise handling of cans, glass, and PET containers, minimizing the risk of damage while optimizing throughput.

Automates Container Sweep-Off and Depalletising

The Pressant Universal container sweep-off depalletiser from Krones is engineered to provide seamless integration into your beverage production line. Specializing in the gentle handling and precise depalletising of cans, glass, and PET containers, this versatile system supports beverage manufacturers, bottling plants, and packaging companies in streamlining operations. Utilizing servo-controlled motors, it delivers meticulous height detection, positioning, and secure transfer, optimizing throughput up to 400 layers per hour. With applications spanning soda cans to whiskey bottles, it features a modular design for easy customization and installation within existing line layouts. Energy efficiency is enhanced by counterweight-assisted lifting, while maintenance is minimized through wear-proof components. The system offers automated PLC control and customizable configurations to meet specific production requirements, ensuring efficient, uninterrupted operation.

Benefits

  • Enhances operational efficiency by automating container depalletising, reducing manual handling.
  • Minimizes energy consumption with counterweight-assisted lifting.
  • Improves production flexibility with a modular design adaptable to various container types and line configurations.
  • Extends equipment longevity through low-maintenance, wear-proof toothed belts.
  • Ensures gentle, reliable container handling, reducing damage and waste.

General


Applications
Plant-based beverages,Water,Bottled beverages,Pet containers,Spirits,Glass containers,Cans,Juices,Soft drinks,Dairy products
End products
Soda cans,Spring water bottles,Wine bottles,Sparkling water bottles,Beer cans,Vodka bottles,Plant-based milk bottles,Fruit juice pet bottles,Whiskey bottles,Flavored water bottles,Juice bottles,Milk bottles,Carbonated soft drinks pet bottles
Steps before
Palletizing,Unstrapping of pallets
Steps after
Container discharge,Packing,Filling
Input ingredients
pallets with inverted trays,pallets with layer pads,pallets with top frames,unstrapped pallets
Output ingredients
depalletised cans,depalletised glass containers,depalletised PET containers,container discharge table,layer pad remover
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Output speed
up to 400 layers per hour
Container diameter compatibility
50–200 mm
Automation
Servo-controlled motors
Design type
Modular design
Container handling
Gentle handling
Drive technology
Servo drive technology
Energy efficiency
Low energy requirement due to counterweights
Maintenance
Maintenance-free toothed belts
Safety feature
Integrated safety stop

Operating Characteristics


Automation level
Servo-controlled
Batch vs. continuous operation
Continuous
Energy efficiency
Low energy consumption
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Container diameter
50–200 mm
Modular design
Yes
Height-adjustable sweep-off station
Yes
Container discharge table level
High / Low
Base frame
Yes
Column
Yes
Transfer plate
Yes
Layer pad remover
Yes
Centring shaft for pallet stack
Yes

Custom Options


Control panel type
PLC-driven
Integration possibilities
Modular design for existing line layouts
Layout flexibility
Adjustable to line output and product range
Sweep-off unit adjustment
Height-adjustable,servo-controlled
Lifting unit height
Height-adjustable with counterweights
Sweep-off station type
Stationary/travel design
Container discharge table option
High or low-level
