Conical mill for particle size reduction and homogenization
Achieve precise particle size reduction and homogenization with a specialized conical mill designed to optimize production efficiency and consistency, crucial for ensuring high-quality output in demanding applications.
Reduces and Homogenizes Particles in Processing

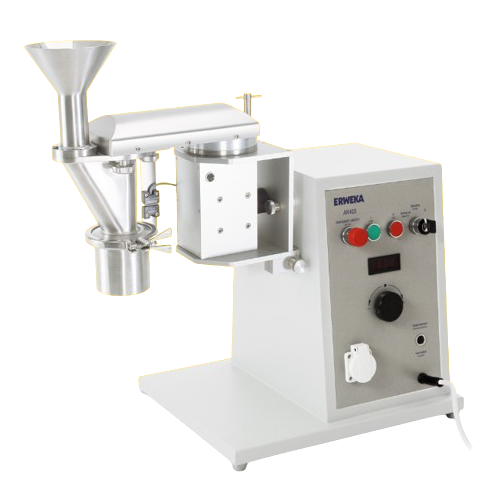

The Conical Mill CM from ERWEKA GmbH is a versatile piece of equipment designed to handle the demanding needs of pharmaceutical and chemical processing. Utilizing a rotor and screen system with adjustable clearance, it efficiently reduces and homogenizes particles, making it ideal for producing pharmaceutical tablets, supplements, and chemical powders. Capable of processing up to 40 kg/h with a rotor speed of 0-1200 rpm, it integrates seamlessly into existing production lines, offering manual, bench-top, and high-speed operation modes. The mill supports various materials, including pharmaceutical powders, enzymes, and metal powders, while ensuring consistent particle size distribution necessary for quality end-products. Designed with safety in mind, it includes a safety interlock feature to prevent accidents during operation. Furthermore, it offers flexibility with shims for rotor clearance adjustments. Configured to meet GMP standards, the Conical Mill CM provides robust performance and engineering support to meet specific production requirements.
Benefits
- Ensures consistent product quality through precise particle size distribution.
- Enhances safety with built-in interlock to prevent operator injury.
- Reduces processing time with adjustable rotor speed up to 1200 rpm.
- Adapts to varied production needs with configurable throughput up to 40 kg/h.
- Complies with GMP standards for reliable pharmaceutical and chemical applications.
- Applications
- Supplements,Metal powders,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Enzymes,Granulates
- End products
- Protein powders,Pharmaceutical tablets,Active pharmaceutical ingredients (apis),Metallurgical powders,Enzyme blends,Vitamin powders,Herbal supplements,Effervescent tablets,Catalyst powders,Dietary supplements
- Steps before
- Drying,Agglomeration
- Steps after
- Homogenization,Particle Size Reduction,Milling,Tablet Pressing
- Input ingredients
- dry products,oversized particles,agglomerates
- Output ingredients
- specified particle size,desired particle size,initial size,homogenized particles
- Market info
- ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.
- Flow rate
- up to 40 kg/h
- Rotor speed
- 0 - 1200 rpm
- Adjustable clearance
- 0.5 mm to 3.0 mm
- Particle size reduction
- Specified size
- Safety feature
- Safety interlock
- Working mechanism
- Rotor and screen milling
- Flow rate
- Up to 40 kg/h
- Rotor speed
- 0 - 1200 rpm
- Automation level
- Manual
- Batch vs. continuous operation
- Batch
- Safety interlock
- Included
- Particle size control
- Adjustable rotor-to-screen clearance
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Agglomerate Milling
- Back to initial size
- Screen size
- 0.5 mm to 3.0 mm
- Flow rate
- up to 40 kg/h
- Rotor speed
- 0 - 1200 rpm
- Safety interlock
- Yes
- Shim adjustment
- 0.5 mm to 3.0 mm
- Rotor speed adjustment
- 0 - 1200 rpm
