Conical mill for particle size reduction

Achieve precise particle size control and reduce thermal stress on materials with this robust milling solution, ideal for high-capacity powder processing and scaling production efficiency.

Achieves Efficient Particle Size Reduction

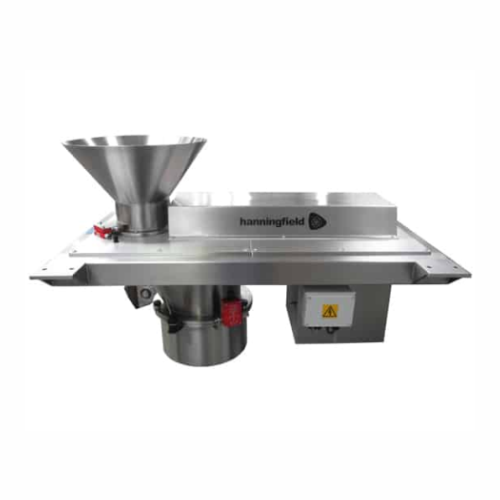

The Uni-Mill B-Series from Hanningfield is an over-driven conical milling solution that excels in efficient particle size reduction across pharmaceutical, nutraceutical, and chemical industries. Utilizing a belt-driven impeller inside a 60º inclusive screen, it ensures precise comminution through compression and shearing. This conical mill accommodates both dry and wet milling, supporting diverse applications such as powder processing and oral solid dosage production. Capable of achieving particle sizes as low as 150 microns, the Uni-Mill models offer varying throughputs—up to 7200 kgs/hr. Designed for seamless integration into production lines, the mill can be customized with options like nitrogen purging and temperature monitoring. Constructed with 316L stainless steel contact parts, and FDA-compliant seals, it complies with stringent industry standards, including ATEX for explosive environments. With customization available for inlet/outlet configurations, it supports efficient CIP systems for easy and contamination-free cleaning, backed by engineering support for tailored solutions.

Benefits

  • Enhances production efficiency by achieving precise particle size control with minimal heat generation.
  • Operates quietly due to belt-driven design, reducing workplace noise levels.
  • Ensures compatibility with stringent regulatory standards by using FDA-compliant materials and offering ATEX certification.
  • Adapts to various processing needs with customizable inlet/outlet configurations and optional integration features.
  • Minimizes contamination risk with easy-to-clean design equipped for CIP operations.

General


Applications
Oral solid dosage,Fine chemicals,Nutraceuticals,Supplement industries,Bulk materials,Chemical,Food and beverage,Powder processing,Cannabis,Pharmaceuticals
End products
Steps before
Material Feeding,Pre-Breaking,Weighing
Steps after
Particle Size Classification,Dust Collection,Packaging
Input ingredients
bulk materials,heat sensitive materials,dry materials,wet materials
Output ingredients
comminuted particles,reduced particle size,various particle sizes,150 microns (80 mesh) particles
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Max Throughput (Uni-Mill M10-B)
360 kgs/hr (800 lbs/hr)
Max Throughput (Uni-Mill M20-B)
1800 kgs/hr (4000 lbs/hr)
Max Throughput (Uni-Mill M30-B)
3600 kgs/hr (8000 lbs/hr)
Max Throughput (Uni-Mill M60-B)
7200 kgs/hr (16000 lbs/hr)
Screen Diameter (Uni-Mill M10-B)
127mm (5")
Screen Diameter (Uni-Mill M20-B)
203mm (8")
Screen Diameter (Uni-Mill M30-B)
305mm (12")
Screen Diameter (Uni-Mill M60-B)
609mm (24")
Standard Motor (Uni-Mill M10-B)
1.5 kW (2 HP)
Standard Motor (Uni-Mill M20-B)
4.0 kW (5 HP)
Standard Motor (Uni-Mill M30-B)
7.5 kW (10 HP)
Standard Motor (Uni-Mill M60-B)
15 kW (20 HP)
Approx. Weight (Uni-Mill M10-B)
150 kgs (330 lbs)
Approx. Weight (Uni-Mill M20-B)
200 kgs (400 lbs)
Approx. Weight (Uni-Mill M30-B)
250 kgs (550 lbs)
Approx. Weight (Uni-Mill M60-B)
475 kgs (1045 lbs)
Standard Speed (Uni-Mill M10-B)
2440 RPM
Standard Speed (Uni-Mill M20-B)
1480 RPM
Standard Speed (Uni-Mill M30-B)
960 RPM
Standard Speed (Uni-Mill M60-B)
480 RPM
Lowest Achievable Particle Size
Approx. 150 microns (80 mesh)
Typical Noise Level
<78dB
Contact Parts
316L stainless steel (1.4404)
Non-Contact Parts
304 stainless steel (1.4301)
Country of Manufacture
United Kingdom
Material,Construction
Stainless Steel 316L contact parts,304 non-contact parts
Design,Operation
Over-driven,belt-driven impeller
Mounting Solutions
Various available
Upgrade Options
Temperature monitoring,CIP,WIP,pre-breakers,nitrogen purging,ATEX execution
Pattern of Milling
Comminution by compression and shearing
Available Models
M10-B,M20-B,M30-B,M60-B
Documentation
Validation documentation FS/DS,FAT,SAT,IQ/OQ and 3.1 mill certificates to EN10204

Operating Characteristics


Working Mechanism
Belt-driven conical mill
Heat Sensitivity
Low heat generation
Particle Size Range
150 microns (80 mesh)
Noise Level
<78dB
Material Flow Type
Inline continuous
Comminution Principle
Compression and shearing
Clean-In-Place (CIP)
Optional upgrade available
Batch vs Continuous Operation
Batch
Automation Level
Configurable
Impeller and Screen Adjustment
Variable with spacers

Material Compatibility


Abrasion resistance
Yes
Cleanability
High (CIP/WIP support)
Corrosive resistance (e.g. acids)
316L stainless steel
Density/particle size
Low density,fine particles (150 microns)
Biological compatibility
FDA compliant

Product type Characteristics


Particle size reduction
As low as 150 microns (80 mesh)

Physical Characteristics


Screen Diameter
127mm (5") for M10-B,203mm (8") for M20-B,305mm (12") for M30-B,609mm (24") for M60-B
Max Throughput
360 kgs/hr (800 lbs/hr) for M10-B,1800 kgs/hr (4000 lbs/hr) for M20-B,3600 kgs/hr (8000 lbs/hr) for M30-B,7200 kgs/hr (16000 lbs/hr) for M60-B
Standard Motor
1.5 kW (2 HP) for M10-B,4.0 kW (5 HP) for M20-B,7.5 kW (10 HP) for M30-B,15 kW (20 HP) for M60-B
Approx. Weight
150 kgs (330 lbs) for M10-B,200 kgs (400 lbs) for M20-B,250 kgs (550 lbs) for M30-B,475 kgs (1045 lbs) for M60-B
Standard Speed
2440 RPM for M10-B,1480 RPM for M20-B,960 RPM for M30-B,480 RPM for M60-B
Lowest Achievable Particle Size
Approx. 150 microns (80 mesh)
Typical Noise Level
<78dB
Construction Material
316L stainless steel for contact parts,304 stainless steel for non-contact parts
Screen Design
60º inclusive screen angle
Mounting Solutions
Customizable with a selection of inlet and outlet configurations
Customization Options
Temperature monitoring,CIP,WIP,pre-breakers,nitrogen purging,ATEX execution

Custom Options


Mounting solutions
Custom inlet/outlet configurations
Inlet,outlet configurations
Hand-feed chute,valve assemblies,tri-clover connections,vacuum adaptors
Optional upgrade features
Temperature monitoring,CIP,WIP,pre-breakers,nitrogen purging,ATEX execution
Tooling options
Various screens and impellers
Material of construction
316L stainless steel,304 stainless steel
