Compact filling system for retortable carton packages

Simplify your production of ready meals and soups with a space-saving machine that seamlessly integrates forming, filling, and sealing processes for up to 6,000 packages per hour.

Forms, Fills, and Seals Liquid Products

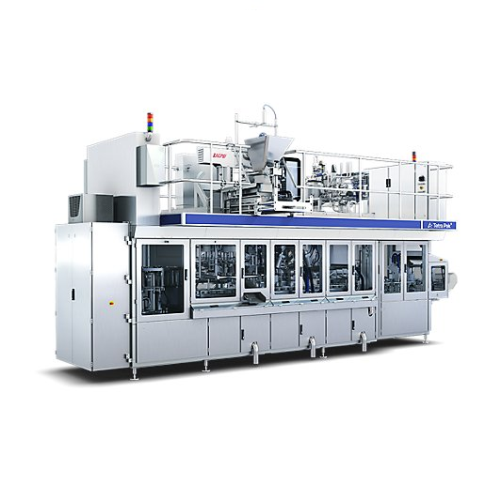

The Tetra Pak® R2 from Tetra Pak is a compact, integrated filling machine designed for the seamless production of retortable liquid-based products. This space-efficient solution integrates forming, filling, and sealing within a mere 60 m², reducing the need for extensive floor space. Key applications include sauces, soups, vegetables, ready meals, and pet food, addressing the demands of manufacturers in the food, beverage, and dairy industries.

With the ability to quickly switch between package volumes, the Tetra Pak R2 offers flexibility for producing a range of end products, from tomato ketchup to lasagna. Capable of processing up to 6,000 packages per hour, this machine supports continuous, high-speed operations, minimizing manual oversight through its advanced automation.

Operators benefit from an intuitive touch-screen interface for seamless control, while encased working parts ensure low noise levels. The use of induction sealing enhances the integrity of packaging through precise heat and pressure controls. Additionally, flat-packed carton blanks optimize packaging logistics, significantly reducing storage and distribution costs.

The Tetra Pak R2 is compatible with various filler types—pocket, piston, liquid, and weight—for expanding product options. This machine not only streamlines production but also supports efficiency improvements with PLMS data monitoring, ensuring sustained performance and optimal efficiency.

Benefits

  • Enhances production efficiency with seamless volume changes, reducing downtime.
  • Minimizes labor requirements, needing only one operator for high-speed operations.
  • Lowers distribution costs by fitting 32,000 cartons per pallet compared to 3,120 cans.
  • Maintains a quiet production environment with noise levels at 74 dB.
  • Increases production flexibility with a range of filler options to cater to diverse product viscosities.

General


Applications
Soups,Ready meals,Sauces,Pet food,Vegetables
End products
Lasagna,Chunky vegetable soup,Pea and carrot mix,Tomato ketchup,Canned dog food
Steps before
Ingredient preparation,Recipe formulation,Mixing,Blending
Steps after
Retort sterilization,Quality control check,Secondary packaging,Warehousing
Input ingredients
smooth sauces,chunky soups,vegetables,ready meals,pasta bolognese,pet food,carton blanks
Output ingredients
Tetra Recart carton packages,100 ml cartons,200 ml cartons,340 ml cartons,390 ml cartons,440 ml cartons,500 ml cartons
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 6,000 packages/hour
Space Efficiency
60 m²
Volume Change Time
30 minutes
Format Change Time
4 hours
Noise Level
74 dB
Package Types
100 ml,200 ml,340 ml,390 ml,440 ml,500 ml
Automation Level
High,One-Person Operation
PLMS Data
Control and Analysis
Sealing Method
Induction Sealing
Carton Blank Storage
32,000 cartons on a 1150 x 800 mm pallet
Machine Functions
Forming,Filling,Sealing

Operating Characteristics


Automation level
High level of automation (one person operation)
Changeover time
30 minutes for same bottom format,4 hours for different formats
Batch vs. continuous operation
Continuous
Cleaning method
Manual
Carton feeding method
Carton blanks from cardboard boxes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
60 m²
Integration
Forming,filling,sealing integrated
Carton capacity on pallet
32,000 Tetra Recart cartons
Noise levels
74 dB
Operator Interface
Intuitive touch-screen
Volume change time
30 minutes for same format,4 hours for different formats

Custom Options


Control panel type
Touch-screen interface
Integration possibilities
Integrated forming,filling,and sealing
Space efficiency
Compact footprint,60 m²
Flexibility
Quick volume change in 30 minutes,format change in 4 hours
Noise level
Low noise,74 dB
Package type compatibility
Entire Tetra Recart packaging portfolio
Filling options
Different types of fillers
