Combi x-ray and checkweigher for vertical products

Ensure precise weight control and contamination detection for vertical packaging lines with integrated X-ray and checkweighing technology, ideal for maintaining product integrity and safety.

Inspects and Weighs Small Vertical Products

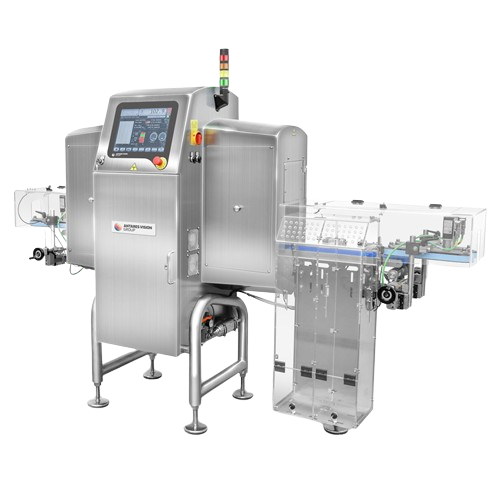

The Combi X-Ray + Checkweigher from Antares Vision Group offers an integrated solution for precise inspection and weighing of small vertical products. Designed to efficiently manage juice cartons, canned food, and other similar goods, this system utilizes side-scanning beam X-ray technology combined with a dynamic weighing module for comprehensive quality control. Its innovative monoblock design eliminates the need for separate units, streamlining operations with a single 15-inch color touchscreen interface. Capable of operating at linear speeds up to 70 m/min and production rates of up to 300 products per minute, it reliably detects foreign materials such as metals, glass, and dense plastics while weighing items up to 3200 grams with a high degree of accuracy. Integration into existing production lines is straightforward, thanks to tangential belts that facilitate seamless product transition. Engineered for Industry 4.0 compatibility, it includes remote assistance via Ethernet and USB, complies with CE, MID, and other international standards, and offers IP65 protection. This system is ideal for food and beverage manufacturers requiring enhanced quality assurance and operational efficiency.

Benefits

  • Enhances production line efficiency by combining X-ray inspection and weighing in one compact system.
  • Increases detection accuracy with advanced sensors, preventing foreign body contamination.
  • Streamlines operations with a unified interface, reducing operator training time.
  • Supports high-speed processes, handling up to 300 products per minute for increased productivity.
  • Integrates seamlessly into existing lines, minimizing installation and setup time.

General


Applications
Food,Beverages,Rigid containers,Snacks,Sweets,Baby food,Plant-based milk
End products
Tetra pak beverages,Pet bottles,Juice cartons,Chocolate bars,Canned food,Almond milk cartons,Soy milk containers,Infant formula tins,Instant noodle cups,Protein bars
Steps before
Filling,Bricking,Packaging
Steps after
Labelling,Cartoning,Distribution
Input ingredients
small-sized vertical products,briks,standing cases,square-based vertical envelopes
Output ingredients
inspected products,weighed products
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Linear Speed
up to 70 m/min
Production
up to 300 ppm
Weight Range
up to 3200 g
Display Division
starting from 0.1 – 0.2 g
Protection Degree
IP65
Control Panel
15" colour touchscreen
Data Processing Electronics
RISC Embedded FPGA
Generator
up to 100W,electronic and integrated cooling module
Sensor
RISC Embedded FPGA 300 mm with pixel 0.8 mm

Operating Characteristics


Integration Method
Inline Monoblock System
Automation Level
Single Operator Interface
System Functionality
Synchronised Operation/Disjoined Mode
Safety Features
Foreign Body Detection
Inspection Method
Side Beam X-Ray Inspection
Operational Speed
Up to 70 m/min
Production Capacity
Up to 300 ppm
Control Interface
15” Color Touch-Screen

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Briks,standing cases,square-based vertical envelopes

Physical Characteristics


Compact footprint
Yes
Control panel type
15” color touch-screen
Discharge method
Tangential belts

Custom Options


Control panel type
15” colour touchscreen
Integration possibilities
Ethernet and USB data collection
Remote Assistance
Included kit for remote assistance
Automation level
Self-learning system and calibration
Footprint
Compact monoblock design
Modular operation
Systems can work in disjoined mode
