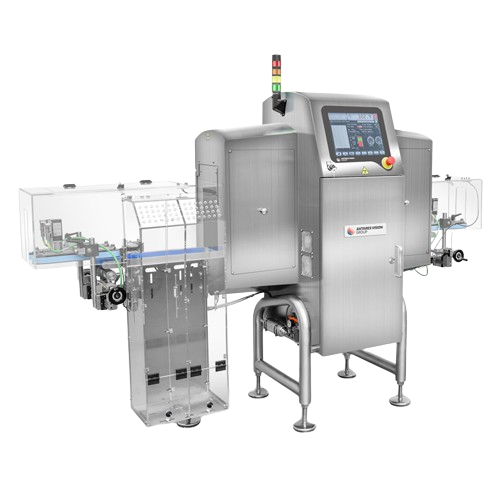

Combi x-ray and checkweigher for vertical products

Ensure accurate weight control and safety by detecting foreign bodies in medium vertical packaging with integrated X-ray and checkweighing technology, designed to streamline your production line.

Inspects and Weighs Medium Vertical Products

The Combi X-Ray Checkweigher for Medium Vertical Products by Antares Vision Group offers a unique compact system that combines weight control and X-ray inspection in a single unit. This innovative solution provides seamless integration into your production line, particularly for beverage and food industries focusing on vertical products like juice cartons and Tetra Paks. The monoblock design ensures efficient space utilization, reducing costs and footprint compared to separate units.

Utilizing side scanning X-ray beams, it detects foreign bodies such as metals, glass, stones, and dense plastics, ensuring product safety and quality. Integrated with a dynamic weighing unit, it precisely measures products up to 3200g with a fast throughput of up to 300 items per minute, catering to high-speed production demands.

Controlled via a 15” color touchscreen interface, the system allows easy setup and monitoring through user-friendly product recipes. The equipment meets international standards, including CE, MID, and HACCP, ensuring compliance across multiple sectors from food to life sciences. With its IP65 protection, it offers durability in demanding environments, and its powerful generator requires no regular maintenance, enhancing operational efficiency.

Antares Vision Group supports Industry 4.0 with bidirectional protocol capabilities, enabling remote assistance and data integration for smart manufacturing. The system’s modular ejection mechanism is customizable, providing tailored solutions to diverse production needs, ensuring consistent, reliable, and high-quality inspection and weighing across your operation.

Benefits

  • Ensures product safety with precise detection of foreign bodies.
  • Increases operational efficiency with a single interface for simultaneous control of inspection and weighing.
  • Reduces space and cost by integrating two functions into one compact unit.
  • Meets international compliance standards for wide industry applicability.
  • Enhances production line flexibility with synchronized or independent operation modes.

General


Applications
Beverages,Vertical packaging,Standing cases,Briks,Packaged foods,Square-based vertical products
End products
Waffles boxes,Juice cartons,Packaged pasta boxes,Milk cartons,Juice boxes,Milk boxes,Breakfast cereal packs,Crackers packs,Soup cartons,Tetra paks,Rice packages,Wine boxes
Steps before
Sorting,Product alignment
Steps after
Packaging,Labeling
Input ingredients
briks,standing cases,square-based vertical envelopes,medium-sized vertical products
Output ingredients
products free of foreign bodies,products with verified weight,inspected products
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
Colour touchscreen 15”
Data Processing Electronics
RISC Embedded FPGA
Generator Power
Up to 100W
Sensor Pixels
0.8 mm
Protection Degree
IP65
Linear Speed
Up to 70 m/min
Production Capacity
Up to 300 ppm
Weight Range
Up to 3200 g
Display Division
Starting from 0.1 – 0.2 g
X-ray Inspection
Side beam

Operating Characteristics


Integration of X-Ray and Checkweighing
Combined in a single monoblock
Control Interface
15” color touch-screen panel
Operation Mode
Synchronized or disjoined mode
Product Handling
Unique product recipes
Safety
Detects metals,glass,stones,bones,dense plastics
Ease of Use
Single operator interface
Ejection Modules
Split and compact
Line Compatibility
No limit to line functionalities

Material Compatibility


Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
High-density plastics

Product type Characteristics


Container size and shape
Vertical products,briks,standing cases,square-based vertical envelopes
Product Height
Medium-sized vertical products
Product Integrity
Detection of foreign bodies such as metals,glass,stones,bones,and high-density plastics
Weight Range
up to 3200 g

Physical Characteristics


Control panel type
colour touchscreen 15”
Conveyors width
140 mm
Discharge method
Infeed and outfeed tangential belts

Custom Options


Control panel type
15” color touchscreen
Integration possibilities
Ethernet and USB
Kit for Remote Assistance
Included
