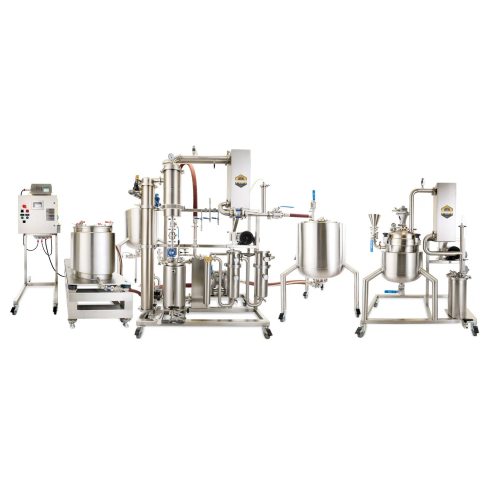

Cold processed ethanol extraction system
Streamline your extraction process by integrating an all-in-one system that combines extraction, filtration, and solvent recovery, ensuring consistent quality and efficiency in cannabinoid and essential oil production.
Processes and Recovers Ethanol for Extracts
The EFR platform is a comprehensive closed-loop ethanol extraction system designed by ExtractionTek to optimize cannabis and hemp extraction processes. By integrating extraction, filtration, and solvent recovery, the EFR simplifies operations and enhances yield without compromising compliance. This system accommodates 30-60 lbs of biomass per hour, with a high ethanol recovery rate of 95-98%, making it ideal for producing CBD oil, THC distillate, and full-spectrum hemp extracts. Its semi-automated batch operation is user-friendly, fitting seamlessly into C1D1 and C1D2 compliant environments, with modular design for easy integration into existing setups. The system’s compact 10’x8’ footprint and stationary setup eliminate the need for moving heavy kegs or vessels, while the in-line chilling option provides efficient cooling to -40°C. The EFR, proudly engineered in Denver, Colorado, adheres to strict GMP and GPP compliance standards and features a UL Listed control panel, ensuring reliability and safety in demanding industrial applications.
Benefits
- Enhances production efficiency by integrating extraction, filtration, and solvent recovery into a single system.
- Minimizes operational costs with high ethanol recovery rates of up to 98%.
- Ensures regulatory compliance with C1D1 and C1D2 certifications.
- Reduces footprint and physical strain with stationary, compact, modular design.
- Simplifies user operation with a semi-automated, user-friendly interface.
- Applications
- Cannabis,Hemp,Essential oils
- End products
- Hemp oils,Essential oil extracts,Cannabis tinctures,Cbd oil,Hemp-derived terpenes,Cannabis concentrates,Thc distillate,Full-spectrum hemp extract
- Steps before
- Biomass Harvesting,Biomass Drying,Biomass Grinding,Loading of Biomass,Ethanol Preparation
- Steps after
- Oil Distillation,Product Refinement,Product Testing,Product Packaging,Waste Disposal
- Input ingredients
- biomass,ethanol
- Output ingredients
- oil,recovered ethanol
- Market info
- Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.
- System Design
- Closed Loop Centrifugal System
- Biomass Processing Capacity
- 30-60 lbs per hour
- Ethanol Recovery
- 95-98%
- Footprint
- 10'x8'
- Ethanol in Process per Batch
- 35 Gallons
- User Operation
- User-friendly,Single-Operator System
- Filtration
- Down to 0.5 Micron
- Temperature Control
- In-Line Chilling Option to -40°C
- Electrical Compatibility
- 208V or 240V Compatible-3 Phase
- Compressed Air Requirement
- 60 CFM at 85 PSI
- System Compliance
- C1D1 and C1D2 Compliant
- Working Mechanism
- Closed Loop Centrifugal System
- Integrated Steps
- Extraction,Filtration,Solvent Recovery
- Flow Type
- Batch
- User Operation
- Single-Operator System
- Compliance Level
- C1D1 Compliant
- Automation Level
- Semi-Automated
- Temperature Control
- In-Line Chilling to -40°C
- Capacity per Batch
- 35 Gallons of Ethanol
- Biomass Processing
- 30-60 lbs per hour
- Corrosion resistance
- Stainless steel components
- Biological compatibility
- GMP compliant
- Cleanability
- CIP/SIP capable
- Density/particle size
- 0.5–2.5 g/cm³
- 3A Sanitary Standard
- Yes
- ASME Section VIII
- Yes
- C1D1 and C1D2 Compliance
- Yes
- GMP Compliance
- Yes
- GPP Compliance
- Yes
- NFPA 1
- 38.6.1.5.6.1 Compliance
- NSF Certification
- Yes
- UL Listed
- Yes
- Compact footprint
- 10’x8’ Base Footprint
- Design type
- Closed Loop Centrifugal System
- Modular design
- Yes
- System configuration
- Batch style method
- User operation
- User-friendly,Single-Operator System
- Tank capacity
- 35 Gallons of Ethanol
- Compact footprint
- 10’x8’ Base Footprint
- Control panel type
- UL Listed
- Integration Possibilities
- In-line distillation without additional refinement
