Coffee capsule filling and sealing solution

Optimize your production with a high-speed solution designed to fill and seal versatile beverage capsules, significantly reducing foil waste while ensuring product freshness through advanced atmospheric control.

Fills and Seals Beverage Capsules Precisely

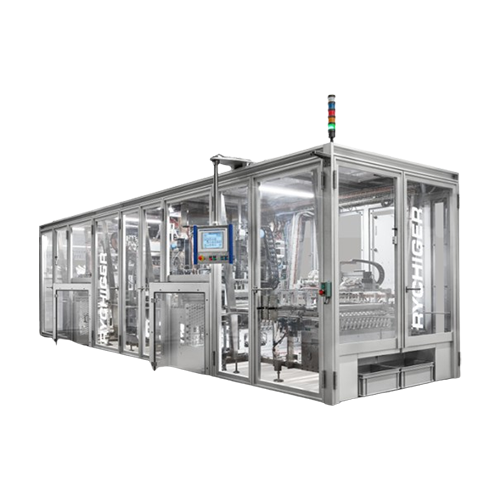

The FS 910 from Rychiger is a robust coffee capsule filling and sealing machine tailored for high-speed production, serving coffee, tea, and beverage manufacturers who demand precision and efficiency. Its standout feature includes the ability to handle up to 1,440 capsules per minute with minimal foil waste due to its diagonal punching technology. This machine seamlessly integrates into continuous operations, supporting various materials including plastic, aluminum, and paper, and caters to popular capsule types like Nespresso, K-Cup, and Dolce Gusto. The FS 910’s modular design allows for flexible upgrades, such as integrated secondary packaging units, while maintaining ease of dry cleaning access. This ensures rapid maintenance and reduced downtime. Additionally, the machine can operate in a shielded gas atmosphere to minimize residual oxygen, enhancing product freshness. With Rychiger’s commitment to continuous improvement, the FS 910 is equipped to meet the evolving needs of the food and beverage industry with extended features for customization and comprehensive engineering support.

Benefits

  • Maximizes production efficiency with 1,440 capsules per minute capability.
  • Minimizes material waste by up to 30% through diagonal foil punching.
  • Enhances product freshness with low residual oxygen through gas-shielded sealing.
  • Offers flexibility for future upgrades with modular design.
  • Simplifies maintenance with easy-access dry cleaning features.

General


Applications
Supplements,Snacks,Multi beverage,Pet food,Confectionary,Coffee,Baby food,Tea,Dairy products
End products
Protein shake pods,Flavored water pods,Milk froth capsules,Espresso capsules,Loose leaf tea capsules,Vitamin-enriched beverage capsules,Cold coffee brew pods,Flavored tea capsules,Nespresso coffee capsules,K-cup coffee pods,Instant tea capsules,Dolce gusto capsules
Steps before
Coffee roasting,Grinding
Steps after
Secondary packaging,Sealing,Labelling
Input ingredients
coffee,tea,multi beverage,plastic,aluminum,paper,shielded gas atmosphere
Output ingredients
coffee capsules,tea capsules,multi beverage capsules,Nespresso,K-Cup,Dolce Gusto,compatibles
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Speed
65 cycles/min
Capacity
1,440 capsules/min
Number of Lanes
12 lanes
Unit Size (LxWxH)
12 x 4 x 2.5 m
Weight
4,500 - 13,000 kg
Connected Load
3 x 400 V + Pe / 50 Hz
Rated Power
15 - 30 kW
Compressed Air
≥ 5 bar,55 Nm³/h
Nitrogen Requirement
≥ 5 bar,80 Nm³/h
Cooling Water
5 - 10 l/min
Material Compatibility
Plastic,Aluminum,Paper
Foil Waste Reduction
Up to 30%
Dry Cleaning Access
Optimized

Operating Characteristics


Working mechanism
Inline flow
Integrated steps
Filling,sealing,and secondary packaging
Changeover time
Optimized for quick changeover
Cleaning method
Dry cleaning
Automation level
PLC-controlled
Foil wastage reduction
Up to 30% reduction
Process extension capability
Flexible extendability

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine size (LxWxH)
12 x 4 x 2.5 m

Custom Options


Control panel type
Touchscreen / PLC / HMI
Integration possibilities
Modular upgrades / Additional stations
Extendability
Flexible / Modular design
Foil waste reduction
Diagonal punching / 30% reduction
Dry cleaning access
Optimized accessibility
