Coffee capsule filling and sealing line

Elevate your capsule production with a high-speed filling and sealing solution that minimizes downtime and maximizes output, achieving up to 2,000 capsules per minute while ensuring precise quality control for each step in your line.

Fills and Seals Beverage Capsules Efficiently

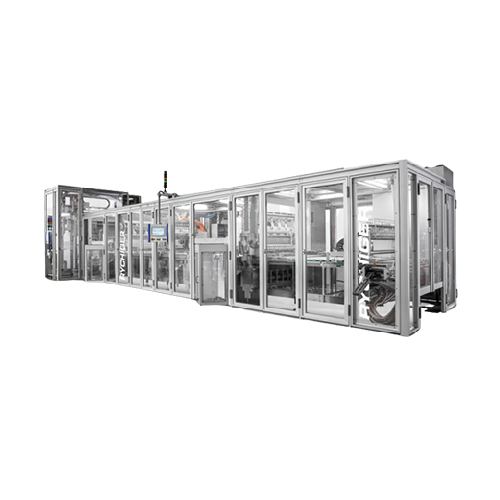

The FS 960 HV from Rychiger is a high-volume filling and sealing machine tailored for large coffee producers and beverage manufacturers. This machine stands out with its capability to produce up to 2,000 capsules per minute, suitable for Nespresso, Dolce Gusto, K-Cup, and other popular capsules. Its linear transport system enables continuous 24/7 operation, reducing reliance on operator intervention and minimizing downtime thanks to its efficient design and zero-stop feature. Applications extend beyond coffee to include tea, multi-beverage, and even niche items like protein shake pods and infant formula capsules. The FS 960 HV supports a range of packaging processes including filling, sealing, cutting, and inspection, all tightly integrated for seamless production flow. For enhanced maintenance, it includes features designed for easy cleaning and troubleshooting. Optional upgrades support additional processes, including integrated secondary packaging, ensuring scalability and future-proofing your production line. The FS 960 HV is engineered for minimum scheduled downtimes, offering a reliable solution for high-demand scenarios.

Benefits

  • Maximizes production efficiency with a capacity of up to 2,000 capsules per minute.
  • Minimizes operational costs through reduced downtime and maintenance requirements.
  • Offers flexibility for multi-beverage applications, from coffee to dairy and supplements.
  • Facilitates 24/7 operation with continuous feed systems, ensuring consistent output.
  • Enhances production scalability with upgradeable integration for secondary packaging processes.

General


Applications
Supplements,Snacks,Multi beverage,Pet food,Confectionary,Coffee,Baby food,Tea,Dairy products
End products
Protein shake pods,Dog treat pods,Herbal tea capsules,Infant formula capsules,Dolce gusto coffee pods,Vitamin supplement capsules,Hot chocolate pods,Cat food supplement capsules,Powdered milk tea capsules,Nespresso coffee capsules,K-cup coffee pods,Yogurt capsules
Steps before
Transport,Forming,Filling
Steps after
Labeling,Secondary Packaging,Tray Packing,Case Packing,Cartoning,Palletizing
Input ingredients
coffee capsules,tea capsules,multi beverage capsules,plastic materials,aluminum materials,paper materials
Output ingredients
filled coffee capsules,filled tea capsules,filled multi beverage capsules,sealed capsules,packaged capsules,inspected product
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Output per minute
2,000 capsules/min
Cycles per minute
65 cycles/min
Number of lanes
12 lanes
Unit height
65 mm
Outer unit diameter
45 - 55 mm
Machine size (WxH)
12 x 4 m
Weight
4,000 - 12,000 kg
Connected load
3 x 400 V + Pe / 50 Hz
Rated power
30 kW
Compressed air
≥ 6 bar,60 - 120 Nm³/h
Nitrogen
≥ 5 bar,65 - 130 Nm³/h

Operating Characteristics


Continuous operation
24/7
Capsule feed
Continuous
Foil feed
Continuous
Automation level
High
Minimum operator intervention
Yes
Cleaning cycles required
Reduced
Troubleshooting and repair
Easy access
Production type
Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Plastic compatibility
Yes
Aluminum compatibility
Yes
Paper compatibility
Yes

Product type Characteristics


Container type
Plastic / Aluminum / Paper
Capsule types
Nespresso / Dolce Gusto / K-Cup

Physical Characteristics


Machine footprint
12 x 4 m
Weight
4'000 - 12'000 kg

Custom Options


Control panel type
Advanced HMI / Touchscreen interface
Integration possibilities
Secondary packaging unit integration
Number of lanes
12 to 16 adjustable lanes
Capsule type compatibility
Nespresso,Dolce Gusto,K-Cup
