Cocoa bean winnower

Transform roasted cocoa beans into nibs efficiently, ensuring precise separation of cocoa from its shell, essential for high-quality chocolate production.

Crushes and Separates Roasted Cocoa Beans

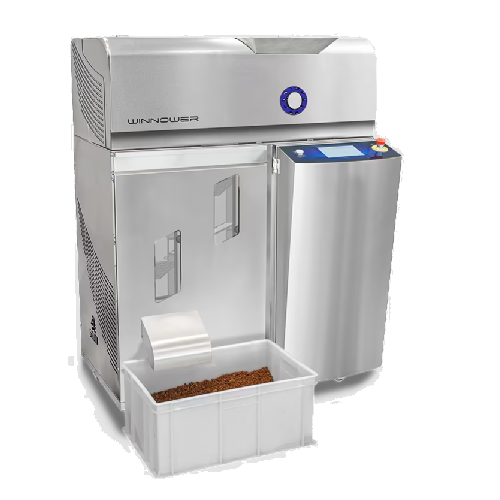

The Selmi Winnower is a cutting-edge machine that efficiently transforms roasted cocoa beans into nibs. Utilizing stainless steel roller crushers, it ensures precise crushing and separation in a compact unit. Ideal for chocolatiers and patisseries, the Winnower can process up to 50 kg of cocoa beans per hour, optimizing the primary stages of chocolate production. Its adjustable airflow system effectively separates the nibs from the husk, ensuring purity and quality of the end product. The machine is constructed from durable materials for corrosion resistance, and its design supports seamless integration into medium to large-scale chocolate production lines. Users benefit from low energy consumption, making it a cost-effective addition to your chocolate processing capabilities.

Benefits

  • Improves processing efficiency by handling up to 50 kg of cocoa beans per hour.
  • Enhances product quality with precise separation of cocoa nibs and husk.
  • Minimizes operational costs through energy-efficient motor design.
  • Offers easy integration into existing production lines for versatile applications.
  • Lowers maintenance efforts with durable stainless steel construction.

General


Applications
Cocoa products,Chocolatiers,Spreadable creams,Patisseries,Dried nuts,Chocolate
End products
Chocolate truffles,Almond paste,Chocolate pralines,Cocoa nibs,Chocolate bars,Chocolate-coated nuts,Cocoa mass,Hazelnut spread
Steps before
Roasting,Cleaning,Sorting
Steps after
Grinding,Mixing,Conching,Tempering,Moulding
Input ingredients
roasted cocoa beans,cocoa beans
Output ingredients
cocoa nibs,processing waste
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Power required
2 Kw
Electrical specification
220 V single phase - 50 Hz
Hourly production rate
50 kg
Dimensions
1100x1150x1450 mm
Max. capacity
5 kg
Material
Stainless steel
Automation
Adjustable airflow
Hopper capacity
5 kg
Phase version
Also available in 220 V three phase version
Aspiration levels
Two levels
Number of hoppers
Two separate hoppers
Production cycle
Includes air filter and peels seal

Operating Characteristics


Working mechanism
Crushing and airflow separation
Integrated steps
Peel separation
Batch vs. continuous operation
Batch
Automation level
Adjustable airflow
Hopper capacity
5 kg of cocoa beans

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Stainless steel material
Cleanability
Easily cleaned
Biological compatibility
Yes
Density/particle size
Compatible with cocoa nibs and shell separation

Physical Characteristics


Dimensions
1100x1150x1450 mm (LxWxH)
Machine Footprint
Compact size
Material
Stainless steel roller crushers
Hopper Capacity
5 kg of cocoa beans
Discharge Method
Two separate hoppers for nibs and processing waste
Airflow Control
Adjustable airflow with two levels of aspiration

Custom Options


Control panel type
Manual / Automated
Integration possibilities
Bean to Bar production line
Airflow adjustment
Two levels of aspiration
Power supply options
Single phase / Three phase
Material handling
Two separate hoppers for nibs and waste
Compact size
Suitable for medium to large laboratories
