Coating dryers for breakfast cereal production
Achieve precise moisture control in coated cereal production with these modular dryers, ensuring optimal texture and flavor retention for high-quality end products.
Dries and Coats Snacks and Cereals

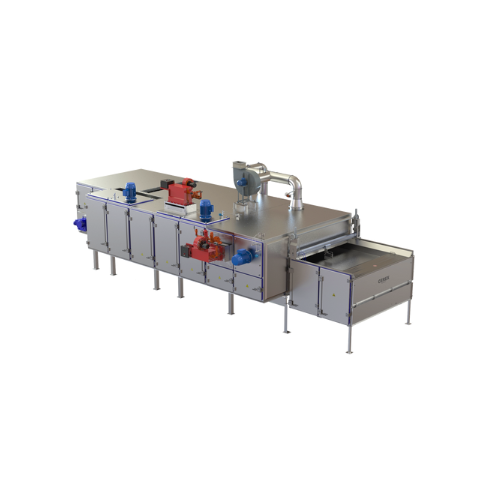

The COD 1040 and COD 2680 modular coating dryers from Cerex AG redefine drying precision for food processing, integrating seamlessly into cereal and snack production lines. These dryers specialize in efficiently drying and coating cereals, granola clusters, and coated nuts. With conveyor widths ranging from 1,000 mm to 2,600 mm, the units offer eight standard sizes to match your production needs, with custom sizes available on request.
Each dryer operates continuously, employing a conveyor system that minimizes energy loss through advanced modular air-up and air-down zones. All modules, built with hygienic design principles, feature lubricating-free stainless steel chains and a full wash-down facility for ease of cleaning. Enhanced by a unique direct-driven shaft design, they eliminate belts and chains, improving operational reliability.
Designed for easy integration, the dryers include configurable utility and cooling zones, and seamless inline incorporation with upstream coating drums or downtream puffing systems. Optional features such as high-pressure conveyor wash systems and customizable feeding mechanisms provide tailored solutions to meet specific manufacturing challenges. These dryers support high-throughput processes, delivering consistent quality for a wide range of granule and solid snack products.
Benefits
- Enhances product quality with precise moisture control for uniform coating and drying.
- Lowers maintenance costs through lubrication-free stainless steel chain design.
- Simplifies cleaning processes with hygienic wash-down facility and CIP support.
- Increases production efficiency with seamless modular integration.
- Reduces energy consumption via optimized modular air control systems.
- Applications
- Cereals,Bars,Coated products,Nuts,Granola,Seeds,Muesli
- End products
- Muesli base flakes,Seed snack bars,Cornflakes,Granola clusters,Coated corn puffs,Roasted and coated almonds,Yogurt-coated granola bites,Chocolate-coated nuts,Protein bars
- Steps before
- Coating,Distribution
- Steps after
- Cooling,Packing
- Input ingredients
- raw grain products,breakfast cereals,nuts,seeds
- Output ingredients
- coated products,puffed products,flakes,crispies,müsli,granola,bars,instant food
- Market info
- CEREX is known for specializing in the production of engineered-to-order (ETO) equipment, providing customized industrial solutions with a strong emphasis on innovation, quality, and customer satisfaction in niche market segments.
- Modular Design
- Yes
- Standard Sizes
- COD 1040 - COD 2680
- Custom Size Options
- Available upon request
- Conveyor Widths
- 1'000 mm,1'400 mm,2'000 mm,2'600 mm
- Number of Legs per Module
- 2 legs
- Lubrication Free Chain
- Yes
- Direct-driven Shafts
- Yes
- Airtight Doors and Panels
- New compression hinge design
- Conveyor Washing
- High pressure wash system
- Cooling Option
- Forced cooling using chill coil
- Working mechanism
- Modular design
- Conveyor type
- Lubrication free stainless steel chain
- Automation level
- Integrated automation
- Cleaning method
- Hygienic wash-down facility
- Batch vs. continuous operation
- Continuous
- Access design
- Full access to all units and areas
- Support structure
- Two legs per module
- Door access
- 180° opening
- Cooling option
- Forced cooling using chill coil
- Cleanability
- Hygienic wash-down facility
- Corrosive resistance (e.g. acids)
- Stainless steel
- Modular design
- Yes
- Standard sizes
- COD 1040 - COD 2680
- Conveyor widths
- 1'000 mm,1'400 mm,2'000 mm,2'600 mm
- Feed hopper
- Spacious for feeding and buffer zone
- Access
- Full access to all units and areas
- Legs per module
- 2 legs
- Structural design
- No bolts or nuts above conveyor
- Chain
- Lubrication free stainless steel
- Wash-down facility
- Hygienic
- Insulated panels
- Roof,floor,door,and end panels
- Door opening
- 180°
- Shafts
- Direct-driven
- Panel air-tightness
- Compression hinge design
- Compact footprint
- 0
- Conveyor width
- 1,000 mm,1,400 mm,2,000 mm,2,600 mm
- Design type
- Modular
- Modules
- Feed End,Air Up,Air Down,Utility Zone,Cooling Zone,Delivery End
- Options
- Rotating Pin roll,Feed hopper,Handrails,Access ladder,High pressure conveyor wash system,Helical rotating dry brush,Various feeding and distribution systems,Forced cooling using chill coil
- Custom size machines
- Available upon request
