Chemical filter dryer for fine chemical production
When processing chemical intermediates, precise filtration and drying are crucial to ensure product integrity and achieve optimal moisture levels for further manufacturing steps.
Filters, Dries, and Separates Solid and Slurry Products

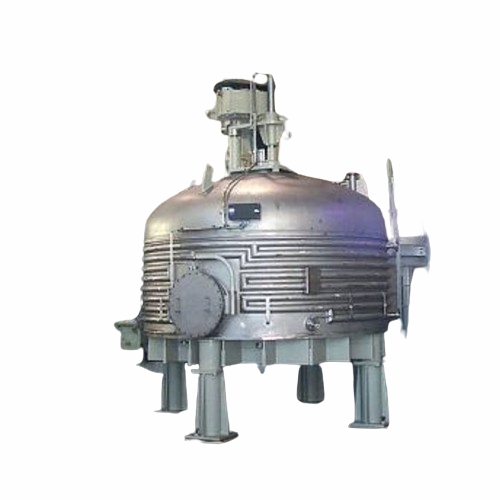

The Pressofiltro® Series PF 2000 – PF 16000 from COMBER is a versatile filter dryer designed for pharmaceutical, chemical, and food product manufacturers. This equipment combines filtration and drying processes within a closed unit, optimizing production efficiency and reducing contamination risks. Its unique agitator blade design ensures effective and even product movement during the drying process, while the narrow agitator-to-wall clearances enhance emptying characteristics. Suitable for both batch and continuous operations, it handles solid, powder, slurry, and cake products, making it ideal for producing APIs, chemical intermediates, or powdered metals. With a control cabinet featuring PLC and HMI, it supports seamless integration with existing production lines. Constructed from materials like stainless steel and Hastelloy, it offers excellent corrosion resistance for handling aggressive substances. Certified for operation under the EU-Type Examination Certificate and capable of UL-approved installations, it meets high safety standards. The inclusion of a CIP system ensures thorough, contamination-free cleaning, making maintenance efficient while minimizing downtime.
Benefits
- Enhances operational efficiency with integrated filtration and drying in one unit.
- Minimizes contamination risks through closed-system design and effective product handling.
- Offers flexibility for diverse product types, from slurries to powders.
- Ensures high safety standards and compliance with EU and UL certifications.
- Simplifies maintenance with an efficient CIP system, reducing downtime.
- Applications
- Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
- End products
- Powdered metals,Specialty chemicals,Food additives,Active pharmaceutical ingredients (apis),Chemical intermediates,Polymer powders
- Steps before
- Slurry Preparation,Filtration,Chemical Reaction
- Steps after
- Drying,Product Discharge,Packing
- Input ingredients
- slurry,liquids,solids
- Output ingredients
- dry product,filtered solids
- Market info
- Heinkel (Comber) is renowned for manufacturing industrial engineered-to-order equipment, specializing in filtration, centrifugal, and mixing solutions. They are recognized for their precision engineering, quality, and ability to tailor solutions for pharmaceutical and chemical industries.
- Filter area
- 2.0 to 16 m²
- Slurry volume
- 2,000 – 40,000 liters
- Design temperature
- -10 to 150°C (14 to 302°F)
- Design pressure
- -1 to +4 barg (FV to 60 psig)
- Material Compatibility
- Stainless steels,Nickel based alloys such as Hastelloy C 22 or Alloy 59,Titanium
- Sealing materials
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
- Area classification
- Class 1,Division 1 or 2,Groups C,D
- Controls
- Control cabinet with PLC,HMI with touch screen,MCC,interface for DCS
- Shaft seal
- Externally accessible stuffing box
- Emptying characteristics
- Narrow agitator to wall/bottom clearances
- Accessory options
- Heated vessel and agitator,openable filter bottom,dust filter with automatic back cleaning,sampling valve,CIP system,sight glass with vessel light,vacuum system with condenser,heating and cooling unit
- Batch vs. continuous operation
- Batch
- Automation level
- PLC-controlled
- Cleaning method
- CIP / Manual
- Agitator design
- Narrow clearances
- Access type
- Manhole / Openable filter base
- Corrosive resistance (e.g. acids)
- Stainless steels,Nickel-based alloys,Titanium
- Cleanability
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
- EU-Type Examination Certificate
- INERIS
- Electrical Components Certification
- UL approved for Class 1,Division 1 or 2,Groups C,D environment
- Pressure Equipment Directive (PED)
- 2014/68/EU
- ASME Pressure Vessel Code
- Section VIII with U-Stamp
- Filter area
- 2.0 to 16 m²
- Slurry volume
- 2,000 – 40,000 liters
- Design temperature
- -10 to 150°C (14 to 302°F)
- Design pressure
- -1 to +4 barg (FV to 60 psig)
- Discharge method
- Narrow agitator to wall/ bottom clearances
- Material
- Stainless steels,Nickel based alloys such as Hastelloy C 22 or Alloy 59,Titanium
- Sealing materials
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
- Control panel type
- Control cabinet with PLC,HMI with touch screen,MCC,interface for DCS
- Shaft seal type
- Externally accessible stuffing box
- Openability
- Openable filter base
- Materials of construction
- Stainless steels,Nickel based alloys (Hastelloy C 22,Alloy 59),Titanium
- Sealing materials
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
