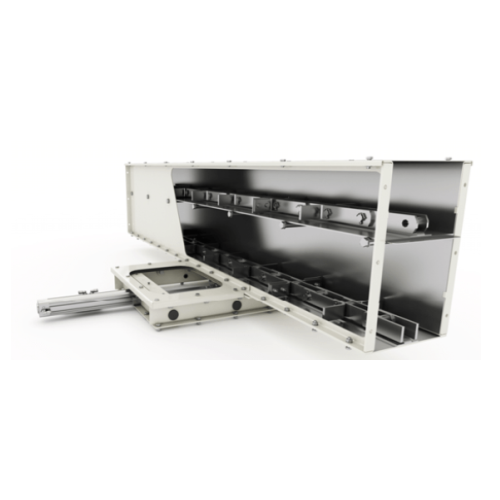

Chain conveyors for long-distance bulk material transport

Efficiently transport challenging bulk materials across long distances with these robust chain conveyors, designed to handle a variety of free-flowing products seamlessly within high-capacity operations.

Transports and Discharges Bulk Solid Materials

The Chain Conveyors from Ottevanger Milling Engineers offer a robust solution for the transportation and discharge of bulk materials, designed specifically for challenging conditions in feed mills, grain storage, and food processing facilities. These versatile conveyors are built to handle materials such as grains, pellets, and soybean meal efficiently over long distances. Constructed with an enclosed S235 steel trough and available with optional AISI304 execution, they ensure durability and corrosion resistance. Their high capacity, reaching up to 400 m³/h, makes them suitable for continuous operations in high-demand environments.

Chain conveyors integrate seamlessly into production lines, working effectively with upstream equipment like batch weighers and downstream systems such as hammer mills. They feature geared drive units and flexible couplings for reliable performance, as well as advanced speed sensing and flow regulation options to optimize throughput. Additionally, the systems are equipped with protective chain hoods and wear plates to minimize maintenance efforts while ensuring operational safety.

Ottevanger’s chain conveyors also support remote monitoring and automation via PLC, enhancing integration within your facility’s control systems. For those dealing with ATEX-restricted zones, the chain conveyors are available with ATEX22 zoned drive units, meeting stringent compliance requirements. Whether conveying pet food, aquafeed, or granola, these conveyors deliver efficiency in various industry processes.

Benefits

  • Enhances material flow efficiency with capacities up to 400 m³/h.
  • Minimizes maintenance with durable steel construction and protective design features.
  • Integrates into existing systems via PLC for streamlined operations.
  • Supports ATEX compliance for safe operations in hazardous environments.
  • Offers flexibility with customizable materials to suit various processing needs.

General


Applications
Grains,Meals,Pet food,Pellets,Granulates,Oilseed processing,Soybean processing,Aqua feed,Flakes,Compound feed
End products
Muesli base flakes,Dog biscuits,Cornflakes,Vegetable oil,Fish pellets,Granola,Cattle feed blend,Animal feed pellets,Pet kibbles,Soybean meal
Steps before
Product intake,Cleaning,Grinding
Steps after
Storage,Batch Weighing,Mixing
Input ingredients
grains,granulates,pellets,flakes,meals
Output ingredients
grains,granulates,pellets,flakes,meals
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Capacity
up to 400 m³/h
Material
S235 steel,AISI304,galvanized S235 steel
Design
Fully enclosed
Special Features
ATEX22 zoned drive units,intermediate outlets,recirculation head
Drive Units
Geared drive units,flexible coupling
Wear Protection
HPME wear plate,guide strips (C45)
Chain Width
220,320,420,520 mm
Speed
0.3–0.6 m/s
Overflow Valve
Included
Paint Finish
Primer and paint finish
Inlet Flow Regulation
Slide gate
Chain Hood
Protective for intake applications
Spotfilter
Included

Operating Characteristics


Working mechanism
Chain-driven
Conveying method
Continuous conveyance
Capacity range
Up to 400 m³/h
Material handling
Free-flowing products
Distance capability
Long-distance conveying
Automation level
Geared drive units with flexible coupling
Protection features
Overflow valve,protective chain hood
Speed regulation
Speed sensor incorporated
Environment suitability
All-weather features available

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Free-flowing products
Grains,Granulates,Pellets,Flakes,Meals


ATEX certification
ATEX22 zoned drive units

Physical Characteristics


Machine footprint
Not specified
Conveyor capacity
Up to 400 m³/h
Chain width
Varies (220mm to 520mm)
Design
Fully enclosed S235 steel trough
Chain tensioner
Included
Material construction
S235 steel,AISI304,galvanized S235 steel
Speed
0.3 to 0.6 m/s
Discharge method
Overflow valve,Recirculation head

Custom Options


Material of Construction
S235 steel,AISI304,Galvanized S235 steel
Flexible Coupling
Included
Drive Unit Housing
All-weather features
Speed Sensor
Available
Intermediate Outlets
Available
Recirculation Head
With intermediate bottom
Inlet Flow Regulation
Slide
Protective Chain Hood
For intake applications
Overflow Valve
Included
ATEX22 Zoned Drive Units
Available
Guide Strips
C45
