Centrifugal sifter for particle size classification

Achieve precise particle size control with high output efficiency, ensuring consistent quality of powders and granules across your production line while enhancing separation reliability.

Screens and Classifies Powders and Granules

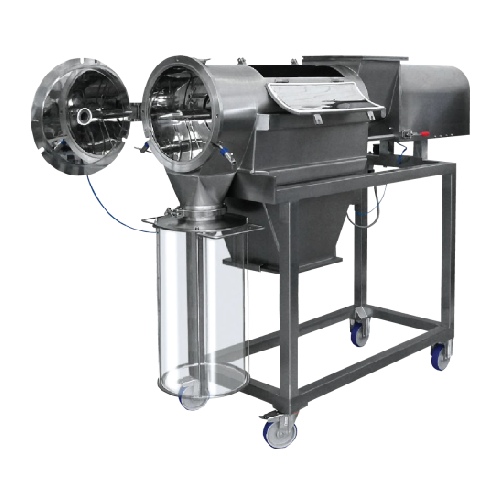

The Centrifugal Sifter from FREUND is designed to enhance the screening and classification processes in your production line. It effectively classifies powdered or granulated products by size, using a mechanical system where a screw transports the material into a sifting chamber. Slightly inclined blades on the shaft push the product against a nylon mesh, allowing fine particles to pass through while larger ones are separated and ejected.

Ideal for industries such as pharmaceuticals, food, chemicals, and biotech, this sifter processes a variety of applications, from pharmaceutical tablets and protein supplements to metal alloy and vitamin powders. With models like the S40, S65, and S85, you can achieve throughput capacities ranging from 1,000 to 3,000 kg/hr, tailored based on your specific product needs.

Constructed with 316L stainless steel for product contact surfaces and offering options like pneumatic transport connectivity and discharge into a conical mill, the sifter integrates seamlessly into existing operations. The equipment also offers an Ex-Proof version compliant with ATEX directives for intelligent safeguarding in potentially explosive environments. Additionally, it is designed for quick disassembly and reassembly without tools, streamlining cleaning and maintenance processes while minimizing downtime.

Benefits

  • Ensures consistent product quality by achieving precise particle size distribution.
  • Increases production efficiency with high throughput capacities up to 3,000 kg/hr.
  • Minimizes downtime with tool-free disassembly and reassembly for quick cleaning.
  • Enhances safety with options for ATEX-compliant, explosion-proof versions.
  • Offers versatile integration using connections for pneumatic transport and downstream processes.

General


Applications
Vitamins,Metal powders,Fine chemicals,Detergents,Nutraceuticals,Pharmaceutical powder,Enzymes,Spices
End products
Metal alloy powders,Laundry detergent powder,Pharmaceutical tablets,Aspirin tablets,Baking soda,Ground cinnamon,Protein supplements,Iron supplements,Aspartame,Vitamin c powder
Steps before
Grinding,Emulsification
Steps after
Coating,Packing
Input ingredients
powdered product,granulated product,large volumes,complex processes
Output ingredients
fine particles,separated large particles,classified particles by size
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Power (Model S40)
1.1 kW
Capacity (Model S40)
1000 kg/hr
Power (Model S65)
1.5 kW
Capacity (Model S65)
2000 kg/hr
Power (Model S85)
3 kW
Capacity (Model S85)
3000 kg/hr
Seals
Stainless Steel/PTFE
Construction Material (Product Contact)
316L Stainless Steel
Construction Finish (Product Contact)
Mirror Finish
Construction Material (Non-Product Contact)
304 Stainless Steel
Construction Finish (Non-Product Contact)
Fine Satin Finish
Disassembly
Tool-free
Ex-Proof Version
ATEX Directive

Operating Characteristics


Sifting mechanism
Centrifugal force by inclined blades
Automation level
Manual
Batch vs. continuous operation
Continuous
Cleaning method
Manual disassembly
Disassembly/Reassembly
Tool-free

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Compact design
Feed Method
Screw conveyor
Discharge Method
Continuous separation and transport to scrap exit
Support Options
Wheeled or Fixed Support
Sieve Material
Nylon sieve on steel support
Material Contact Surface
316L Stainless Steel,Mirror Finish
Non-Product Contact Surface
304 Stainless Steel,Fine Satin Finish
Design for Assembly
Quick disassembly and reassembly without tools
Air/Nitrogen Flow System
Mechanical seals flowed with air or nitrogen
Optional Connection
For Pneumatic Transport System
Optional Discharge Connection
Into Conical Mill
Electrical Component Protection
ATEX Directive compliant

Custom Options


Disassembly and reassembly
Tool-less
Sealing
Stainless Steel/PTFE Seals with air or nitrogen
Material compatibility
316L Stainless Steel,Mirror Finish for product contact
304 Stainless Steel,Fine Satin Finish for non-product contact
Transport system integration
Connection for Pneumatic Transport System
Support type
Wheeled or Fixed
Discharge connection
Connection for Discharge into Conical Mill
Explosion-proof version
ATEX Directive Compliance
Loading method
Material Loading by Rotobutterfly Valve
