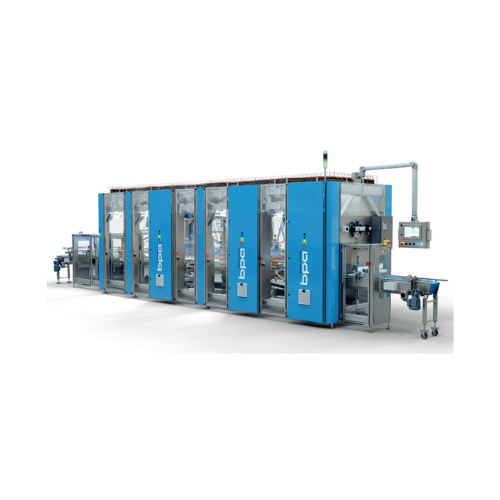

Case packing system for bags and cases

Streamline your secondary packaging process with a compact, fully integrated system capable of handling diverse case and bag formats with high speed and precision, while minimizing changeover time to enhance production efficiency.

Performs Case Erecting, Packing, and Sealing

The Spider Q Series from BluePrint Automation is a fully integrated vision-guided case packing system designed for industries such as bakery, confectionery, and pharmaceuticals. This system excels in versatility and compactness, handling various case and bag configurations with ease thanks to its mono block frame design. The automated process begins with bag quality checks and culminates in a securely filled and sealed case. Featuring a single HMI for seamless operation integration, it drastically reduces manual intervention and provides swift recipe changeovers, with 90% of the transitions automated, cutting changeover time to under ten minutes. Designed for continuous operation, it ensures high-speed, efficient packing without compromising on space. The Spider Q Series is engineered to be customizable to your specific production needs, providing engineering support for tailored configurations, making it a strategic asset in optimizing packaging lines.

Benefits

  • Increases production efficiency with automated bag quality checks and seamless case sealing.
  • Minimizes labor requirements through a single HMI interface, enhancing operational oversight.
  • Reduces changeover times to under ten minutes, maximizing line uptime.
  • Conserves floor space with its ultra-compact design, ideal for high-demand setups.
  • Adaptable to diverse product lines, catering to various industries and packaging needs.

General


Applications
Personal care,Protein,Pet food,Snacks,Bakery,Confectionery,Pharma
End products
Chicken breasts,Bread loaves,Vitamin supplements,Potato chips,Chocolate bars,Dog treats,Lip balm
Steps before
Bag Quality Checks
Steps after
Checked,Filled,Closed Case
Input ingredients
bags,cases
Output ingredients
checked filled cases,closed cases
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Automation
90% automated changeovers
Changeover time
Less than 10 minutes
Footprint
Ultra-compact
Frame design
Mono block
Control interface
Single HMI
Production speed
High
Case Handling
Variety of cases and bags

Operating Characteristics


Automation level
High (90% changeover settings automated)
Changeover time
Less than ten minutes
Footprint
Compact (mono block frame design)
Integration
Fully integrated Vision Guided Robotics
Versatility
High (processes large variety of cases and bags)
Control Interface
Single HMI for all integrated controls

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Flexibility
Variety of Cases and Bags

Physical Characteristics


Compact footprint
Ultra-compact design
Mono block frame design
Integrated packing process
Control panel type
Single HMI for system control

Custom Options


Control panel type
HMI
Compact footprint
Yes
Integration possibilities
Vision Guided Robotics
Changeover time
Less than ten minutes
Frame design
Mono block
