Carbon/nitrogen analyzer for organic samples

Optimize your lab’s efficiency with fast, reliable nitrogen and carbon determination in diverse samples using advanced Dumas analysis.

Automates Carbon/Nitrogen/Protein Analysis Using Dumas Method

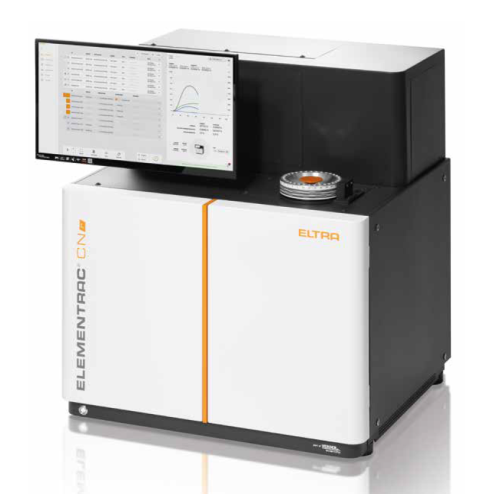

The ELEMENTRAC CN-r from ELTRA is a cutting-edge analyzer tailored for laboratories demanding efficient and reliable carbon, nitrogen, and protein determination. Utilizing the Dumas combustion method, it provides a swift alternative to Kjeldahl analysis, ensuring complete oxidation in a pure oxygen atmosphere for robust accuracy. Ideal for applications in food testing, feed analysis, soil nutrient evaluation, and pharmaceutical quality control, it accommodates both solid and liquid samples. Capable of delivering results in under three minutes, the ELEMENTRAC CN-r integrates seamlessly into high-throughput environments with its automated sampling and intelligent network-capable data management. Its ergonomic design includes an integrated PC with a touchscreen interface, promoting user-friendly operation and quick maintenance. Additionally, it operates cost-effectively with advanced gas-saving features, making it a preferred choice for modern laboratories seeking precision and efficiency.

Benefits

  • Accelerates sample analysis, delivering results in less than three minutes to boost laboratory productivity.
  • Enhances safety by utilizing non-aggressive chemicals, reducing hazards associated with traditional methods.
  • Lowers operational costs through efficient gas utilization and consumable management.
  • Ensures precise and consistent results with Dumas combustion in a controlled oxygen environment.
  • Facilitates easy maintenance, minimizing downtime and ensuring continuous high-throughput operation.

General


Applications
Food,Fuels,Chemical products,Environmental samples,Feed stuff,Pharmaceutical products,Fertilizers
End products
Muesli base flakes,Soil nutrients,Sample ash analysis,Granola bars,Cornflakes,Biodiesel blends,Chicken feed mix,Organic fertilizers,Synthetic detergents,Aspirin tablets,Gasoline components,Cattle feed pellets,Dog food kibble,Synthetic fertilizers
Steps before
Sample Preparation,Weighing,Homogenization
Steps after
Data Analysis,Sample Grouping,Exporting Results,Calibration Check,Quality Control Verification
Input ingredients
food,feed stuff,fuels,coal,coke,environmental samples,fertilizers,organic samples,inorganic samples,natural products,chemical products,pharmaceutical products,soil samples
Output ingredients
nitrogen content,protein content,carbon content,nutrient composition,fertilizer quality,quality control,product specifications
Market info
ELTRA Elemental Analysers is renowned for producing high-quality elemental analyzers, specializing in precise carbon, sulfur, oxygen, nitrogen, and hydrogen measurement in inorganic samples. Their reputation is built on reliability and accuracy in analytical instrumentation.

Technical Specifications


Speed
Less than 3 minutes per analysis
Capacity
Up to 1.0 g
Measurement Range (Nitrogen)
0.03 mg to 300 mg
Measurement Range (Carbon)
0.02 mg to 175 mg
Automation
Fully automated
Detector Type
Thermal conductivity detector (N),NDIR (C)
Power Supply
230 VAC ±10%,50/60 Hz
Required Gas
Oxygen (99.999% purity),Helium (99.996% purity),Compressed air
Weight
135 kg
Dimensions
75.7 x 78.5 x 62 cm
Software
ELEMENTS software,FDA 21 CFR Part 11 compliant

Operating Characteristics


Automation level
Fully Automated
Batch vs. continuous operation
Continuous
Changeover time
Minimal
Energy efficiency
Low Operating Costs
Cleaning method
Non-aggressive chemicals
Sample handling
Clear sample identification

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
75.7 x 78.5 x 62 cm
Weight
135 kg
Compact design
Space-saving
Control panel type
Integrated PC with tiltable touchscreen
Discharge method
Automated with autosampler

Custom Options


Compact footprint
Yes
