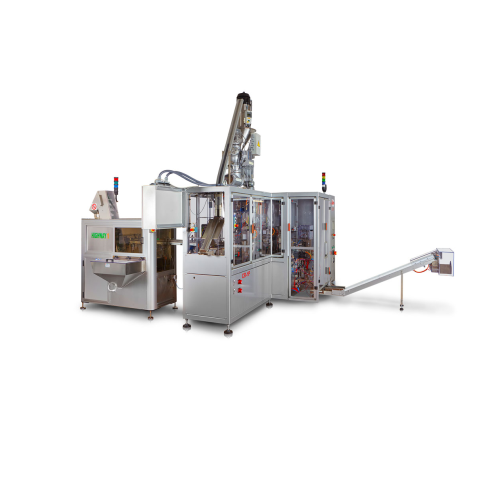

Capsule filling system with in-line weight control

Experience precise capsule filling with high-speed accuracy, designed for beverage manufacturers seeking efficient and reliable production.

Fills and Packages Beverage Capsules Efficiently

The CR-1P Linear Capsule Filling System from Opem is designed to meet the high demands of coffee and beverage capsule production. This system excels in precise dosing with a screw dispenser driven by a brushless servo motor, ensuring consistent filling accuracy of ± 0.2g. Capable of processing up to 75 capsules per minute, it is ideal for producing espresso, cappuccino, tea, hot chocolate, and energy drink capsules. Integrated inline weight control and feedback adjustment enhance product consistency, while its robust design allows for seamless integration into existing production lines. The CR-1P employs an empty capsule feeding system, featuring a random feeding mechanism and a denester for stacked capsules. It is engineered for continuous high-speed operations, making it suitable for the food and beverage, coffee, and packaging industries. Its design facilitates easy cleaning and maintenance, with options for upgrading with an integrated packaging machine for single or double bagging with inert gas injection, enhancing freshness and shelf-life.

Benefits

  • Enhances production efficiency with a throughput of up to 75 capsules per minute.
  • Maintains consistent product quality with precise filling accuracy of ± 0.2g.
  • Integrates smoothly into existing lines, reducing setup times and operational interruptions.
  • Improves product shelf-life with inert gas injection for packaging.
  • Minimizes waste through in-line weight control and out-of-tolerance capsule rejection.

General


Applications
Instant beverages,Powdered drinks,Beverage capsules,Coffee capsules
End products
Espresso coffee capsules,Hot chocolate capsules,Cappuccino capsules,Instant coffee capsules,Tea capsules,Protein drink capsules,Energy drink capsules
Steps before
Random feeding of empty capsules,Denesting of stacked capsules
Steps after
In-line weight control,Rejection of out-of-tolerance capsules,Packaging in single/double bag,Inert gas injection
Input ingredients
empty capsules,inert gas
Output ingredients
filled capsules,packed capsules,single bag,double bag
Market info
Opem specializes in designing and manufacturing customized packaging machinery, particularly for the food and beverage industries. They are known for their innovative, high-quality, engineered-to-order systems that emphasize advanced technology and precision.

Technical Specifications


Automation
Integrated packaging machine
Filling Accuracy
± 0.2 g
Output
Up to 75 capsules / minute
Capsule Filling System
Screw dispenser driven by brushless servo motor
Empty Capsules Feeding System
Random feeding
In-line Weight Control
Feedback adjustment and rejection of out-of-tolerance capsules
Packaging Options
Single and/or double bag with inert gas injection

Operating Characteristics


Working Mechanism
Linear system with one lane
Integrated Steps
Denester for stacked capsules,Screw dispenser
Automation Level
Brushless servo motor control
Output Capacity
Up to 75 capsules/minute
Filling Accuracy
± 0.2g
Feedback Mechanism
In-line weight control
Rejection System
Out-of-tolerance capsules
Packaging Integration
Single/double bag with inert gas injection

Physical Characteristics


Feed method
Random feeding
Denester
For stacked capsules
Screw dispenser
Driven by brushless servo motor

Custom Options


Dispenser type
Screw dispenser with brushless servo motor
Capsule feeding system
Random feeding
Denesting system
Denester for stacked capsules
Weight control
In-line weight control with feedback adjustment
Rejection system
Rejection of out-of-tolerance capsules
Bagging option
Single and/or double bag with inert gas injection
