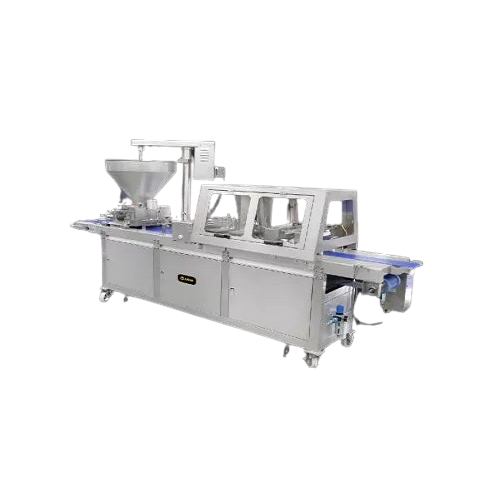

Burrito forming equipment

Streamline your burrito production by automating the delicate tasks of filling, folding, and wrapping, ensuring consistent quality and increasing capacity while significantly reducing labor costs in high-demand food manufacturing environments.

Automates Burrito Filling, Folding, and Wrapping

The BR-1500 Burrito Wrapping and Forming Machine from ANKO revolutionizes burrito production by automating the complete process of filling, folding, and wrapping. It employs sensor-based technology to accurately deposit ingredients and perform consistent wrapping at a capacity of up to 1,000 burritos per hour, catering to a variety of end-products including cheese, meat, and vegetarian burritos. The semi-automatic design integrates seamlessly into existing food production lines, minimizing labor while maximizing output. This machine’s robust construction allows for efficient operation in continuous production environments common in food manufacturing and restaurant industries. Engineered with easy-to-clean surfaces, the BR-1500 supports rigorous hygiene standards, making it ideal for producing halal and other specialty food items. ANKO offers engineering support to customize machine settings and mold options to fit specific production requirements.

Benefits

  • Boosts production efficiency by automating up to 1,000 burritos per hour.
  • Lowers labor expenses with sensor-controlled, precise ingredient deposition.
  • Ensures consistent product quality through uniform, automated folding and wrapping.
  • Integrates easily with existing lines, enhancing overall operational workflow.
  • Offers flexible customization options to meet diverse food production needs.

General


Applications
Meat products,Wraps,Mexican food,Snacks,Vegetarian products,Sweets,Frozen foods,Latin american food,Halal products
End products
Burrito bowls,Beef burritos,Cheese burritos,Sausage burritos,Chicken burritos,Bean burritos,Breakfast burritos,Vegetarian burritos,Halal burritos,Burritos
Steps before
Tortilla Preparation,Filling Preparation,Ingredient Pre-Cooking
Steps after
Burrito Packing,Quality Inspection,Distribution
Input ingredients
tortilla,filling,pre-cooked ingredients,different ingredients
Output ingredients
burrito,burrito wrap,sealed burrito
Market info

Technical Specifications


Capacity
1,000 pcs/hr
Dimensions
3,400 (L) x 680 (W) x 2,000 (H) mm
Power
1.5 kW
Product Dimension
150–160 mm (L)
50–60 mm (W)
25–30 mm (H)
Product Weight
125–145 g/pc
Filling Hopper Capacity
80 kg
Suggested Wrapper Size
9.5–10.5 inches

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Continuous
Changeover time
Minimal due to automation
Cleaning method
Manual
Energy efficiency
Optimized for high production rate

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Type
Burrito

Physical Characteristics


Machine footprint
3,400 (L) x 680 (W) x 2,000 (H) mm
Product weight
125–145 g/pc
Weight (net)
375 kg

Custom Options


Recipe Optimization
Yes
Mold Customization
Available
Control Panel Type
HMI with customizable interface
Wrapper Size
9.5–10.5 inches
