Blow-fill-cap solution for low/medium batch production

Streamline your production line with a compact blow-fill-cap system that reduces both operational costs and footprint, ideal for efficiently processing high-value liquid products in low to medium batch sizes.

Blows, Fills, and Caps Liquid Products

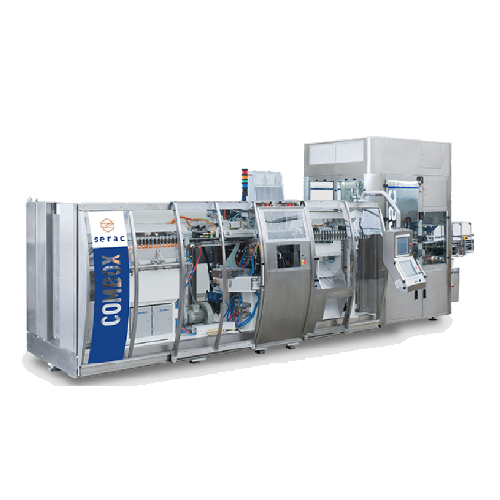

The COMBOX series from Serac provides a compact, engineered-to-order solution for liquid packaging with its integrated blow-fill-cap capabilities. Ideal for industries like dairy, beverages, and household products, this equipment is designed for low to medium batch sizes and high-value products, minimizing over-sizing and investment needs. The COMBOX H2F and COMBOX-SAS models offer packaging solutions tailored for chilled and aseptic products, respectively. The system’s integrated design eliminates the need for additional silos, unscramblers, and air conveyors, reducing labor costs by requiring only one operator for two machines and decreasing material costs through lighter bottles. The direct transfer from PET preform heating to filling improves hygiene by limiting dust exposure. This solution supports a variety of applications, handling end-products such as milk, juices, vegetable oils, shampoos, and automotive fluids. Its semi-automated operation allows easy integration into existing production lines, while maintaining a reduced footprint and conserving energy through optimized processes. Customization options and engineering support are available to fit particular production needs.

Benefits

  • Reduces investment with compact design, eliminating the need for additional silos and conveyors.
  • Lowers labor costs by minimizing operator requirements to one person for two machines.
  • Enhances hygiene by reducing dust exposure through direct PET preform heating and filling.
  • Decreases material costs with lighter bottles due to optimized system design.
  • Integrates seamlessly into existing production lines, supporting varied applications and industries.

General


Applications
Personal care,Sauces,Automotive products,Agrochemicals,Household products,Oils,Lube oils,Drinks,Thinners,Syrups,Paints,Dairy products
End products
Interior wall paint,Pesticides,Soft drinks,Wood varnish,Conditioner,Household cleaning sprays,Yogurt,Motor oil,Fruit juices,Flavored milk drinks,Olive oil,Milk,Liquid detergents,Ketchup,Antifreeze,Mayonnaise,Shampoo,Herbicides,Vegetable oils
Steps before
Preform heating,PET preform preparation
Steps after
Packing,Labeling,Distribution
Input ingredients
PET preform
Output ingredients
filled bottle,chilled products,aseptic packaged products,home and personal care products
Market info
Serac Group is known for its expertise in designing and manufacturing cutting-edge filling and capping machines for various industries, including food, beverage, and cosmetics, renowned for innovative technology and reliable, high-quality equipment.

Technical Specifications


Automation
Integrated Blowing-Filling-Capping
Labor Efficiency
1 operator for 2 machines
Bottle Hygiene Level
Insured by PET preform heating
Footprint
Reduced,no additional equipment needed
Bottle Weight Reduction
Yes,reduced in transport
Application Type
High value products,low/medium size batches
Investment Cost
Lower due to integrated system

Operating Characteristics


Automation level
High level due to integrated system
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP (Cleaning in Place) possible due to integrated filling system
Changeover time
Reduced due to integrated systems
Labor efficiency
1 operator for 2 machines
Integrated steps
Blowing,Filling,Capping
Footprint
Compact,reduced footprint

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
Low/Medium
Container type
PET
Container size
Small/Medium

Physical Characteristics


Compact footprint
Reduced footprint due to integrated systems
Discharge method
Direct transfer from preform to filler

Custom Options


Operator requirements
1 operator for 2 machines
