Bin tumbler for efficient mixing

Achieve precise blending and homogenizing of powders and granules with dual-inclination design, optimizing efficiency and reducing process time in demanding production environments.

Blends and Homogenizes Powders and Granules

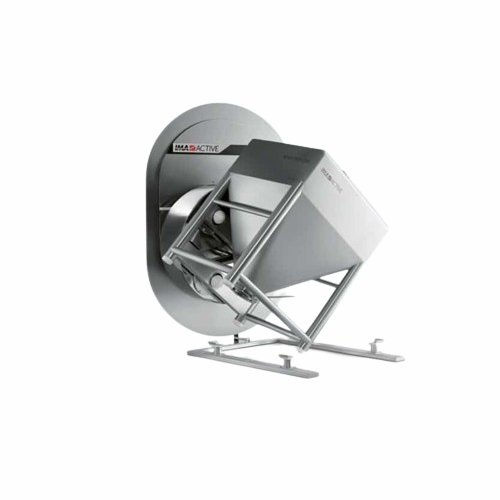

The CYCLOPS Bin Tumbler from IMA Active is a versatile blending and homogenizing solution tailored for the pharmaceutical, food, and chemical industries. Operating on a 15° rotation axis, it ensures efficient mixing while reducing process times. The hallmark Trigon System securely blocks bins, enabling high productivity without frequent tumbler cleanups. Designed for through-the-wall installation, it saves valuable space in processing areas. The CYCLOPS accommodates a range of bin sizes, with models catering from small lab batches to high-speed production runs up to 2,000 liters. Its robust design facilitates the blending of complex materials, such as tablet powders and instant soup mixes. Offering speed adjustments between 4 to 20 rpm, it suits various batch requirements. The entire system supports GMP compliance, vital for maintaining high standards in sensitive production environments. Additionally, it requires minimal maintenance and is configurable to specific manufacturing needs, providing a scalable solution for any production scale.

Benefits

  • Enhances batch consistency with efficient blending and homogenizing.
  • Saves processing space through intuitive through-the-wall installation.
  • Minimizes cleaning with the hermetically closed design of IBCs.
  • Adapts to various production scales with versatile model options.
  • Ensures GMP compliance for maintaining product quality standards.

General


Applications
Chemical powders,Granules,Food powders,Pharmaceutical powders,Chemical granules
End products
Baking mixes,Protein powders,Tablet powders,Chemical additives,Instant soup mixes,Capsule fillers,Detergent granules,Pharmaceutical excipients,Fertilizer granules
Steps before
Grinding,Drying,Purification
Steps after
Packing,Coating
Input ingredients
powders,granules
Output ingredients
blended powders,homogenized granules
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Capacity of standard containers
5÷20 / 30÷300 / 300÷600 / 700÷2,000 L
Recommended filling coefficient
30÷75%
Maximum working load
bin + product
Rotation speed
4÷20 rpm
Power supply
400 V 50 Hz – 3 phase AC
Maximum electric power absorbed
0.25 / 8 / 11 / 15 kW
Empty machine weight
350 / 1,600 / 2,300 / 3,600 kg
Full-load machine weight
375 / 1,900 / 3,000 / 5,400 kg
Dual blending inclination
Yes

Operating Characteristics


Dual blending inclination
Dual-axis rotation
Automation level
PLC-controlled
Batch vs. continuous operation
Batch
Changeover time
No cleaning required between batches
Cleaning method
Hermetically sealed bins
Through-the-wall installation
Space-saving design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Size and Shape
Different IBCs sizes
Blending Type
Powders and granules
Industries
Pharmaceutical,Food,Chemical

Physical Characteristics


Machine footprint
Varies by model (CYCLOPS LAB to CYCLOPS MAXI)
Bin size
5–2,000 liters
Rotation axis
15° inclined
Dual blending inclination
Yes,inclined on the vertical plane
Installation method
Through-the-wall

Custom Options


Integration possibilities
Through-the-wall installation
Blending inclination
Dual blending inclination
Bin blocking system
Trigon System
Machine model
CYCLOPS LAB / MINIC / MIDIC / MAXIC
