Bin aeration system for silo and hopper material flow

Optimize the flow of your stored powders and granules with an efficient aeration system, ensuring consistent discharge and preventing material blockages in storage vessels.

Maintains Consistent Powder Flow through Aeration

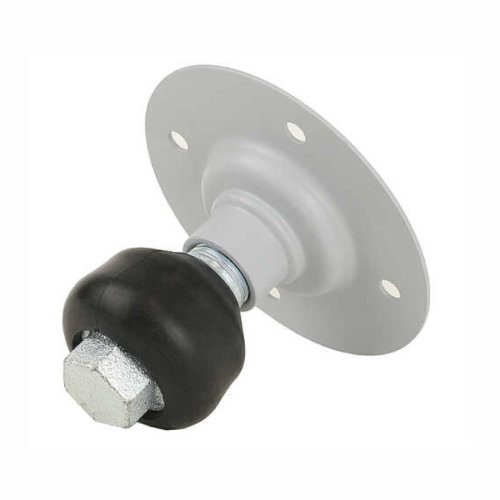

The Bin Aerators from Gericke are designed to prevent material compaction and ensure consistent flow in your storage systems. By introducing air directly into the stored powder mass, these aerators maintain optimal fluidization for applications in food, pharmaceuticals, chemicals, and heavy industries. These aerators operate with a typical effective radius of 300 mm and can easily be mounted using optional external plates. Available in cast iron or 316 stainless steel, they feature either a black Neoprene or optional white FDA-certified Neoprene boot for varied application needs. The aerators are compact and low-cost, requiring virtually no maintenance, making them an efficient choice for your production line. Whether you’re dealing with protein powder, cement, or pharmaceutical granules, Gericke’s Bin Aerators provide reliable performance and integration with existing processing, ensuring smooth operations from upstream feeding to downstream delivery.

Benefits

  • Ensures consistent material flow, reducing clogging and operational delays.
  • Minimizes maintenance costs due to durable construction and low-maintenance design.
  • Enhances product quality by maintaining uniform air-to-particle mixing ratio.
  • Adaptable to various industries with material options for specific compliance needs.
  • Improves production efficiency by integrating seamlessly into existing systems.

General


Applications
Animal and aqua feed,Water treatment,Flue gas treatment,Minerals,Battery production,Dairy,Animal food,Food,Chemicals,Energy,Biscuit and snacks,Textured vegetable proteins,Salt and seasoning,Pet,Pharmaceuticals,Beverages,Environmental,Heavy industry,Cement and fly ash
End products
Pharmaceutical granules,Wastewater treatment chemicals,Fly ash concrete additives,Protein powder,Industrial salt,Flue gas scrubber residues,Detergent powder,Granola bars,Animal feed supplements,Powdered seasoning mixes,Instant coffee,Textured protein chunks,Cement powder,Milk powder,Battery electrode materials,Gelatin capsules,Seasoned snack mix,Fish feed pellets,Pet kibble
Steps before
Conveying,Loading,Storage
Steps after
Packing,Transport,Distribution
Input ingredients
dry bulk materials,powder,aerated mixture of air and particulate
Output ingredients
fluidized material,air-to-particulate mixture
Market info
Gericke is known for engineering and manufacturing innovative powder processing equipment, including mixing, feeding, and conveying solutions, catering to various industries. Renowned for their quality and expertise in bulk material handling, they provide tailored solutions to optimize production processes.

Technical Specifications


Effective Radius
300 mm (12 inches)
Mounting Option
External mounting plate
Material
Cast iron / 316 stainless steel
Boot Material
Black Neoprene / White FDA Neoprene
Maintenance Requirement
Virtually no maintenance

Operating Characteristics


Working mechanism
Continuous air introduction
Air-to-particulate mixture control
Maintains flow of materials
Batch vs. continuous operation
Continuous
Effective radius
300 mm (12 inches)
Material fluidization
Non-damaging vibrations

Material Compatibility


Corrosive resistance (e.g. acids)
316 stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Cleanability
Black Neoprene boot or white FDA Neoprene boot
Biological compatibility
FDA compliant materials


FDA materials
Optional white FDA Neoprene boot

Physical Characteristics


Typical effective radius
300 mm (12 inches)
Mounting method
Easy to mount with optional external mounting plate
Material
Cast iron or 316 stainless steel
Boot type
Black Neoprene or optional white FDA Neoprene boot

Custom Options


Material Options
Cast iron / 316 stainless steel
Mounting Plate
Optional external mounting plate
Boot Material
Black Neoprene / White FDA Neoprene
