Batch weighers for large-volume powder and granulate weighing
Ensure precise ingredient dosing and streamline your production process with high-capacity batch weighers, designed to handle large volumes of powders and granulates efficiently.
Accurately Weighs and Doses Powders and Granules

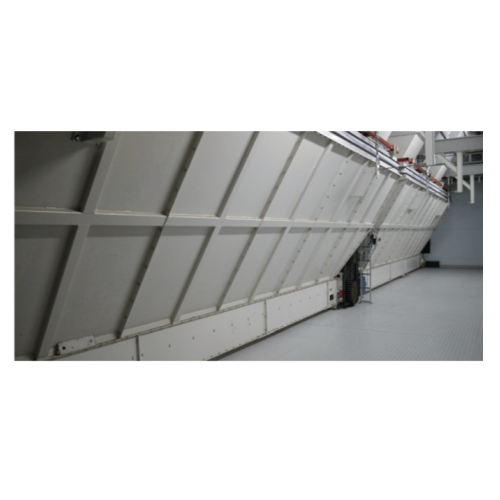

The Batch Weighers from Ottevanger Milling Engineers are precision-engineered solutions designed to efficiently handle the weighing and dosing of both powdered and granulated materials in various industrial settings. Key to its innovation is the rapid-discharge slide or chain conveyor, which facilitates swift material release, enhancing overall batch processing speed. Ideal for industries like animal feed, pet food, and oilseed processing, these weighers support accurate formulation of products such as poultry feed, dog kibble, and soybean meal.
With a weighing capacity ranging from 500 to 6,000 kg, these machines employ multiple load cells to ensure precise weight metrics. Integration into existing production lines is streamlined, supported by automated control systems for seamless operation. The equipment is constructed for durability and resistance to industrial wear, offering customizable options to meet specific user needs. Incorporating Ottevanger’s batch weighers can significantly improve process efficiency and product quality, making them a valuable asset in any processing facility.
Benefits
- Enhances production efficiency with rapid discharge capabilities, minimizing batch cycle times.
- Improves product consistency through precise weighing and dosing accuracy.
- Supports diverse industrial applications, accommodating both powders and granules across various production lines.
- Integrates seamlessly with existing systems, reducing installation and operational complexity.
- Customizable configurations allow for tailored solutions to specific processing demands.
- Applications
- Handling,Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Grain storage,Compound feed
- End products
- Canola meal,Dog kibble,Wheat grains,Soymeal,Mineral concentrates,Corn storage,Poultry feed pellets,Fish pellets,Barley handling,Soybean oil,Vitamin premix
- Steps before
- Storage,Product intake,Dosing,Conveying
- Steps after
- Mixing,Pelleting,Drying,Cooling
- Input ingredients
- large components,carrier materials,powders,granulated components
- Output ingredients
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Weighing Capacity
- 500 to 6,000 kg
- Load Cells
- Four or more
- Weighing Method
- Batch
- Discharge Method
- Rapid-discharge slide or discharge chain conveyor
- Dosing Equipment
- Screw feeders,grid-slide feeders,rotary discharge equipment
- Design Type
- Compact weighing bunker or long bunker weigher (max. 25 m)
- Working mechanism
- Batch Weighing
- Integrated steps
- Dosing and Weighing
- Batch vs. continuous operation
- Batch
- Automation level
- PLC-controlled
- Changeover time
- Minimal with rapid discharge
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material type
- Powders and granulated components
- Machine Footprint
- Compact/Suitable for silo interface
- Batch Size Capacity
- 500 to 6,000 kg
- Load Cells Used
- Four or more
- Discharge Method
- Rapid-Discharge Slide or Chain Conveyor
- Bunker Length
- Up to 25 m
- Dosing Equipment
- Screw Feeders,Grid-Slide Feeders,Rotary Discharge
- Compact Weighing Bunker
- With discharge slide
- Material Type
- Powders and Granulated Components
- Integration possibilities
- Can integrate with discharge bunker
- Discharge method
- Rapid-discharge slide or discharge chain conveyor
- Weighing capacity range
- 500 to 6,000 kg
- Bunker design
- Compact weighing bunker or long bunker (up to 25 m)
