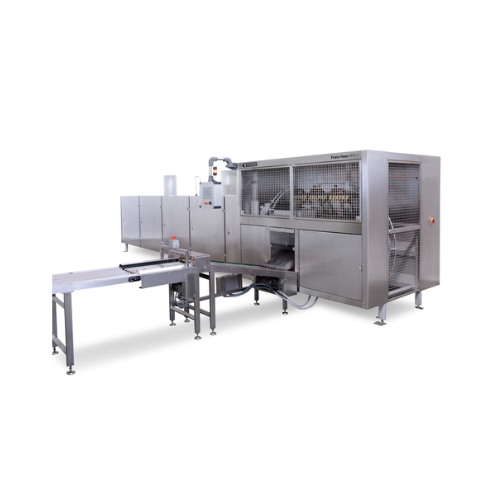

Baking oven for molded cones and cups

Effortlessly increase production efficiency with a high-capacity baking oven that delivers precision-molded cones and cups, optimizing your confectionery line’s performance while maintaining consistent quality through advanced temperature and combustion control.

Produces Consistent Molded Wafers and Cones

The Franz Haas MTA from Bühler Group is a state-of-the-art molded wafer baking oven, uniquely designed for continuous, high-speed production of sugar cones, wafer bowls, and confectionery wafer sticks. Its robust design features high-quality gray iron baking molds engineered in Austria, ensuring even baking with automatic temperature control. The oven’s innovative chain tensioning system compensates for thermal expansion, reducing downtime and prolonging lifespan. Capable of producing up to 21,100 cones or cups per hour, the MTA employs a WhirlWind gas mixing system to optimize combustion and lower energy consumption, ensuring efficient operations. The oven is perfect for bakery and confectionery manufacturers looking for a seamless integration into their existing production lines, with easy mold replacements allowing for flexible product variety. The system’s special nozzle burners and high-grade door insulation enhance energy efficiency, making it an economical solution for diverse applications across the food, confectionery, bakery, and ice cream manufacturing sectors.

Benefits

  • Increases output flexibility with interchangeable baking molds.
  • Minimizes energy costs with efficient WhirlWind gas system and insulation.
  • Enhances product quality through precise, uniform temperature control.
  • Reduces maintenance downtime with robust design and heat-stabilized components.
  • Supports product diversity with quick mold replacements for varied shapes.

General


Applications
Wafer cups,Ice cream cones,Baked goods,Molded wafers
End products
Confectionery wafer sticks,Wafer bowls,Sugar cones,Ice cream wafer cups
Steps before
Batter preparation,Raw material handling
Steps after
Cooling,Packing,Inspection
Input ingredients
batter,sugar (up to 10%)
Output ingredients
molded ice cream cones,wafer cups,molded wafers
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Production Capacity
21100 cones or cups per hour
Number of Baking Molds
Up to 48 molds
Material
High-quality gray iron
Baking Mold Size
Supports 11 cones each
Energy System
WhirlWind gas mixing system
Temperature Control
Automatic temperature control
Insulation
High-grade door insulation
Bearings
Heat-stabilized ball bearings with heat-resistant grease
Chain Tensioning System
Compensates different thermal expansions
Automation Level
Automatic baking process
Energy Efficiency
Lower energy consumption

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Continuous
Cleaning method
Manual
Energy efficiency
Lower energy consumption
Operating principle
Automatic temperature control
Output
Up to 21100 cones or cups per hour
Temperature management
Automatic temperature control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 μm

Product type Characteristics


Product variety
11 cone types

Physical Characteristics


Machine footprint
Compact
Baking mold material
High-quality gray iron
Baking molds
Up to 48 molds
Discharge method
Automatic stripping knife
Control panel type
PLC-controlled

Custom Options


Baking Mold Replacement
Yes
Oven Extension
Yes
Baking Mold Material
High-quality gray iron
