Bakery spraying system for accurate liquid application

Achieve precise and consistent liquid application across diverse culinary products, minimizing waste and enhancing product quality through advanced spraying and coating technology.

Applies Consistent Liquid Coatings

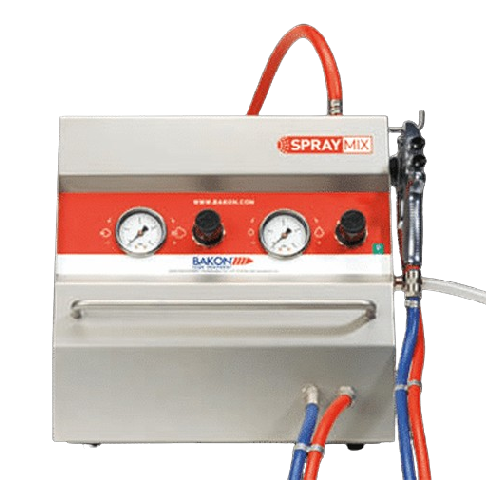

The Spraymix from BAKON is a versatile compact liquid spraying system designed for the precise application of various liquids in food production. This unit stands out for its direct suction capability, eliminating the need for a storage kettle, which reduces mess and product waste. Ideal for bakery and food applications, the Spraymix ensures a uniform coating for products such as egg wash-coated pastries and chocolate-glazed confections. With a medium capacity suitable for small artisan to large-scale manufacturers, it offers separate adjustments for air and liquid pressures, minimizing mist and overspray. As a stand-alone, table-top unit, the Spraymix is easily integrated into existing production lines or used independently, featuring stainless steel construction for enhanced durability and hygienic operation. Available with optional air compressors and trolleys, it adapts seamlessly to your existing setups while ensuring compliance with hygiene standards like HACCP.

Benefits

  • Enhances application precision, reducing waste and ensuring consistent product quality.
  • Saves time and resources with direct container suction, eliminating excess handling.
  • Supports hygienic production standards like HACCP with easy-to-clean stainless steel design.
  • Adapts effortlessly into existing production settings with compact, mobile design.
  • Offers adjustable pressure controls for tailored coating applications.

General


Applications
Dough products,Sauces,Mousses,Spreads,Ready-made meals,Quiches,Creams,Tapenades,Plant-based products,Pastry,Cakes,Confections,Food products,Dressings,Bakery products,Pastries,Dessert products
End products
Oil-sprayed doughnuts,Sauce-coated ready meals,Tapenade-topped bruschettas,Glazed quiches,Mousse-filled desserts,Cream-layered cakes,Egg wash-coated pastries,Fondant-covered confections,Dressings-sprayed salads,Milk-washed pastries,Plant-based spread-coated bread,Chocolate-glazed cakes
Steps before
Preparation of liquid mixtures,Filling the container with product,Connecting to compressed air system
Steps after
Coating,Decoration,Cooling
Input ingredients
egg wash,emulsion,oil,water,release agent,bun wash,milk,pan grease
Output ingredients
sprayed trays,sprayed moulds,consistent liquid coverage
Market info
Bakon is renowned for manufacturing high-quality industrial equipment tailored for the bakery sector, specializing in engineered-to-order solutions that enhance production efficiency and consistency across diverse baking operations globally.

Technical Specifications


Spray pressure
0.5 – 3.2 bar
Liquid pressure
0.5 – 3.2 bar
Dimensions (Standard model)
450 x 310 x 390 mm (l x w x h)
Dimensions (Including trolley)
480 x 400 x 990 mm (l x w x h)
Capacity
Medium
Material
Stainless steel and non-rusting materials
Automation
Manual
Spray types
Cold and thin liquids (e.g. egg wash,oil)
Control
Separate and stepless adjustment of air and liquid pressure

Operating Characteristics


Working Mechanism
Suction directly from the container
Integrated Steps
Separate adjustment of air and liquid pressure
Automation Level
Manual operation with adjustable settings
Cleaning Method
Easy to clean,move,and maintain
Batch vs. Continuous Operation
Stand-alone operation
Energy Efficiency
N/A
Changeover Time
Minimal setup required
Coverage Consistency
Minimum mist and overspray
Hygiene Standards
HACCP compliant

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel components
Cleanability
Easy to clean surfaces
Biological compatibility
Food-grade materials

Product type Characteristics


Application Surface
Baking trays and moulds

Physical Characteristics


Machine dimensions
450 x 310 x 390 mm (l x w x h)
Machine dimensions with trolley
480 x 400 x 990 mm (l x w x h)
Material construction
Stainless steel and non-rusting materials

Custom Options


Control panel type
Clear operating panel with 2 pressure gauges
Integration possibilities
Connectable to existing compressed air systems
Mobility options
Available with trolley for easy movement
Component protection
Protection of vital machine components
Machine variation
Supplied with or without an air compressor
