Automatic tubefiller for food and dairy products

Achieve precise dosing and seamless tube filling with high-speed efficiency, tailored for diverse liquid products ranging from facial creams to industrial adhesives.

Fills, Seals, and Processes Liquid Products

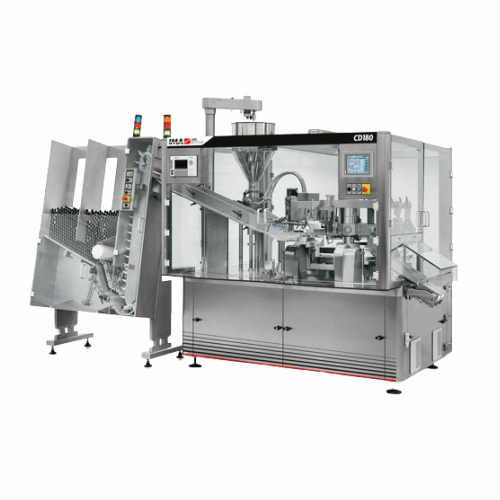

The CD150/CD180 from Co.Ma.Di.S. is a robust twin-nozzle tube filling machine renowned for its adaptability across various industries, including cosmetics, pharmaceuticals, and food manufacturing. This machine efficiently fills, seals, and processes liquid products such as facial creams, ointments, and yogurt, accommodating diverse production requirements from large volume to smaller batch operations. It features a servo-controlled diving nozzle with a positive shut-off valve for precise dosing and an easy-to-disassemble dosing pump for straightforward maintenance.

With a mechanical speed of up to 180 tubes per minute, the CD150/CD180 ensures high throughput while maintaining accuracy. Its automation capabilities include options for robotized tube feeders and a streamlined data collection system via USB, enhancing integration into modern production lines. The machine is engineered for quick changeover of size parts without tools, and its electrical cabinet is integrated within the machine’s footprint for space-efficient operation. Noise and vibration levels are minimized, promoting a comfortable working environment.

The CD150/CD180 is designed for ease of cleaning, with an open yet compact layout that provides ample room for operational activities. Available in customized configurations, this equipment meets the needs of demanding production environments, emphasizing value for money and flexibility.

Benefits

  • Achieves high production efficiency with a speed of up to 180 tubes per minute.
  • Enhances operational flexibility with quick, tool-free changeovers.
  • Minimizes maintenance time with easy-to-disassemble dosing components.
  • Promotes seamless integration into production lines with robotized and automated options.
  • Ensures precise product filling, reducing waste and improving yield.

General


Applications
Personal care,Cosmetics,Industrial products,Food products,Dairy products,Pharmaceuticals
End products
Toothpaste,Facial creams,Hand sanitizer,Industrial adhesives,Ointments,Mayonnaise,Yogurt
Steps before
Material preparation,Component cleaning,Tube pre-treatment
Steps after
Sealing,Batch data collection,Tube rejection
Input ingredients
tubes,bulk materials,liquids or pastes
Output ingredients
filled tubes,sealed tubes
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Mechanical speed
Up to 180 tubes/min
Filling volume
2-250 ml (on request up to 350 ml)
Tube diameter
10-50 mm
Tube length
60-250 mm
Working stations
15
Automation
Choice of automatic/robotized tube feeders
Batch data collection
Via USB port
Dosing pump
Easy-to-disassemble
Nozzle
Servo-controlled diving or stationary,with positive shut-off valve
Size parts change
Simplified and easy,without tools

Operating Characteristics


Automatic/robotized tube feeders
Choice available
Dosing pump
Easy-to-disassemble
Nozzle operation
Servo-controlled diving or stationary
Nozzle valve type
Positive shut-off
Nozzle cleaning
Air blow
Changeover
Quick and tool-free
Batch data collection
Via USB port
Integrated electrical cabinet
Within machine footprint

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact structure
Sturdy mechanical structure
Nozzle type
Servo-controlled diving or stationary
Tube diameter
10-50 mm
Tube length
60-250 mm
Working stations
15
Filling volume
2-250 ml (on request up to 350 ml)
Electrical cabinet
Integrated within machine footprint
Tube filling speed
Up to 180 tubes/min
Discharge method
Automatic tube rejection after filling

Custom Options


Automatic/Robotized Tube Feeders
Available
Servo-Controlled Diving Nozzle
Customizable with positive shut-off valve and cleaning by air blow
Designer Seals
Customized on request
Quick Interchangeability of Closing Heads
Without tools
Integration Possibilities
Electrical Cabinet Integrated Within Machine Footprint
