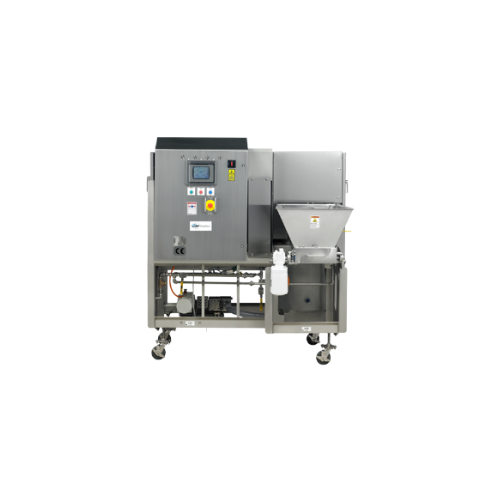

Automatic tempura batter mixer for poultry and seafood

Enhance the consistency and quality of your tempura coatings while maintaining precise batter ratios with this advanced mixing and transfer solution.

Proportions and Mixes Tempura Batter

The Stein TM Series from Stein is a suite of automatic tempura batter mixers engineered for food processing industries such as poultry, seafood, and ready-meal manufacturing. These mixers are uniquely designed to proportion, mix, and maintain consistent batter levels, facilitating the production of tempura-coated shrimp, battered chicken nuggets, and other similar products. Operating in a semi-continuous mode, the TM Series ensures precise mixing ratios and smooth batter transfer through an adjustable rotating and orbiting mixing cage, while the positive displacement transfer pump prevents shear action. With a mixing capacity of up to 2,000 lbs/hr, this equipment is built with durable stainless steel construction and features 60,000 BTU refrigeration coils embedded in the tank for optimal temperature control. Seamlessly integrating into existing production lines with PLC controls for the TM-4 model and hydraulic drives for the TM-3 model, these mixers provide reliable performance with minimal maintenance, bolstered by a remote sensor to sustain batter levels within applicators.

Benefits

  • Ensures precise batter consistency for high-quality coating results.
  • Minimizes labor intervention with automated proportioning and mixing features.
  • Enhances energy efficiency through integrated temperature control systems.
  • Reduces downtime with reliable semi-continuous operation.
  • Seamlessly integrates with existing production lines to optimize workflow.

General


Applications
Seafood,Ready meals,Meat,Fruits,Nuts,Poultry
End products
Breaded pork cutlets,Flash-fried calamari,Tempura-coated shrimp,Tempura vegetables,Battered chicken nuggets,Battered fish fillets,Breaded chicken tenders,Pre-fried vegetable croquettes,Ready-to-cook tempura mushrooms,Battered onion rings
Steps before
Preparation,Mixing,Powder Processing
Steps after
Battering,Coating,Frying,Packaging
Input ingredients
tempura batter mix,water,dry mix bags
Output ingredients
tempura batter
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Mixing Speed
Adjustable
Batter Mix Capacity
2,000 lbs/hr
Batter Tank Volume
31.5 gallons (approx. 120 liters)
Water Tank Volume
150 Liters
Refrigeration Coil Capacity
60,000 BTU
Dry Mix Hopper Capacity
50lbs or 100lbs mixes
Facility Requirements
Electric or Hydraulic Drives
Pump Type
Positive Displacement
Automation
PLC-Controlled/Electric Drives

Operating Characteristics


Mixing mechanism
Adjustable speed rotating and orbiting mixing cage
Batter transfer
Positive displacement transfer pump
Automation level
Automatic feed dry mix hopper
Batch operation
Semi-continuous batch mixer
Temperature control
60,000 BTU refrigeration coils
Batter level maintenance
Remote sensor in the tempura applicator
Batter ratio control
Highly accurate and repeatable mix batter ratios

Material Compatibility


Abrasion resistance
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Stainless steel compatibility
Yes
Biological compatibility
Suitable for food applications

Physical Characteristics


Tank size
31.5 gallon mixing tank
Material
All stainless steel construction
Mixing capacity
Approximately 2,000 lbs/hr

Custom Options


Control panel type
Push button / PLC controls
Drive type
Hydraulic / Electric
Batter transfer method
Positive displacement pump
