Automatic gummy manufacturing system
Efficiently streamline your candy production with a system capable of producing up to 120,000 gummies per hour, offering both batch and continuous processing to optimize throughput and versatility in end-product formulation.

Produces Gummy Confectioneries with Precision

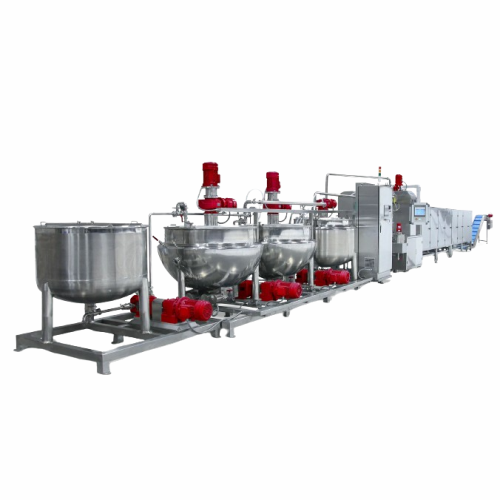

The GT1200 Gummy Production System from GummyTech is a sophisticated solution tailored for confectionery, food, and nutraceutical manufacturers. It excels in producing a wide range of gummy products, such as fruit-flavored, vitamin, and CBD-infused gummies. This system stands out due to its flexibility in processing one or two-color gummies through efficient mixing, molding, and drying stages. Capable of handling up to 120,000 gummies per hour, it supports both batch and continuous operations, adapting to medium-scale production needs seamlessly. Integration into existing lines is streamlined through its PLC-controlled automation, facilitating precise operation and remote monitoring. The GT1200’s energy-efficient design reduces energy consumption, while its robust construction, available in stainless steel, ensures durability and ease of maintenance. Additionally, it complies with industry standards, making it an ideal choice for those needing reliable and versatile gummy manufacturing capabilities.
Benefits
- Enhances production flexibility with both batch and continuous capabilities.
- Boosts operational efficiency, producing up to 120,000 gummies per hour.
- Reduces energy costs through optimized motor control.
- Adapts to diverse product requirements, accommodating various gummy formulations.
- Facilitates compliance with industry standards for safe and reliable production.
- Applications
- Confectionery,Gummies,Edible products,Candy production
- End products
- Cbd-infused gummies,Gelatin-based gummy bears,Vitamin gummies,Pectin-based gummy candies,Nutritional gummy supplements,Bi-color gummy worms,Vegan gummies,Fruit-flavored gummies,Allergen-free gummies
- Steps before
- Mixing,Heating,Coloring,Flavoring
- Steps after
- Cooling,Drying,Sorting,Packaging
- Input ingredients
- gummy ingredients,gelatin mix,sweeteners,flavoring agents,coloring agents
- Output ingredients
- gummies,one-color gummies,two-color gummies
- Market info
- Speed
- Up to 120,000 gummies per hour
- Production Type
- Batch or Continuous
- Color Production
- One or Two colors
- Power Requirements
- 220V/3PH/60HZ or 480V/3PH/60HZ
- Batch System Dimensions
- 56L x 8W x 9H (ft)
- Continuous System Dimensions
- 77L x 15W x 11H (ft)
- Gross Weight
- Approx. 15000 Kg
- Batch vs. continuous operation
- Batch / Continuous
- Automation level
- Automatic
- Production speed
- Up to 120,000 gummies per hour
- Color production capability
- One or two colors
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Color Capability
- One or Two Colors
- Machine Footprint
- 56L x 8W x 9H ft (Batch) / 77L x 15W x 11H ft (Continuous)
- Gross Weight
- Approx. 15000 Kg
- Production Speed
- Up to 120,000 gummies per hour
- Color Production
- Single or dual color options
- Power Requirement
- 220V/3PH/60HZ or 480V/3PH/60HZ
- Production mode
- Batch / Continuous
- Color options
- One / Two colors
- Power options
- 220V/3PH/60HZ or 480V/3PH/60HZ
