Automatic capsule checkweigher for statistical weight control

Ensure precise weight control of capsules with automatic sampling and reporting, vital for maintaining quality standards in production lines handling varied capsule formulations.

Ensures Accurate Capsule Weight Verification

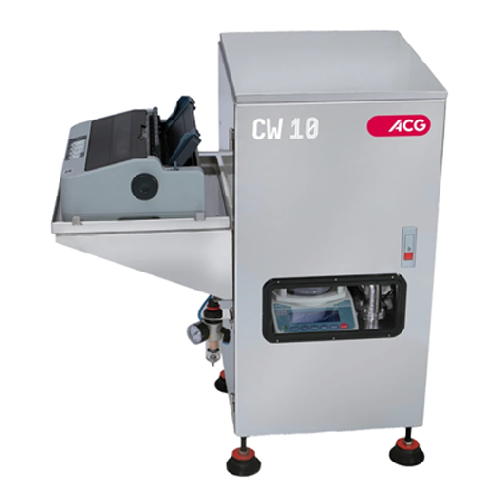

The Checkweigher CW 10 from ACG is a fully automatic online weight inspection system tailored for the pharmaceutical and nutraceutical industries. It specializes in accurately sampling and weighing filled capsules, with a precision of ±1 mg, ensuring consistency across batches. This checkweighing technology is vital for applications involving paracetamol, fish oil, multivitamins, herbal extracts, and probiotic capsules. Capable of processing up to 10 capsules per minute, the CW 10 integrates seamlessly into existing production lines, providing real-time data through timely statistical weight control reports. Its format-free design eliminates the need for manual intervention, while offering flexible sampling methods based on time intervals or stroke counts. Constructed to meet stringent industry standards, it supports comprehensive quality control, ensuring product compliance and customer satisfaction.

Benefits

  • Ensures product quality and regulatory compliance through precise weight control.
  • Eliminates manual intervention, reducing labor costs and error potential.
  • Adapts to various capsule formulations and doses without need for redesign.
  • Provides flexibility in production with multiple sampling methods.
  • Offers reliable performance with high accuracy of ±1 mg per capsule.

General


Applications
Pharmaceutical capsules,Supplements,Nutraceutical capsules,Capsules of any formulation
End products
Paracetamol capsules,Probiotic capsules,Herbal extract capsules,Multivitamin supplements,Fish oil softgel capsules
Steps before
Encapsulation,Liquid filling,Solid filling
Steps after
Tablet coating,Packing,Cartoning
Input ingredients
filled capsules
Output ingredients
timely reports on statistics,weight variation data,accurate weighing results
Market info
ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.

Technical Specifications


Accuracy
±1 mg
Output
Up to 10 capsules/min

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Batch
Sampling method
Time-interval or number of stroke/interval basis
Accuracy
±1 mg
Reporting
Timely reports on weight variation
Format compatibility
Format free design
Operation type
Online sample check weighing

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Control panel type
Touchscreen / HMI
Integration capabilities
SCADA / MES integration
