Automatic batter mixer for coating applications

Achieve consistent batter viscosity for precise coating in high-demand food processing lines, ensuring that each piece, from chicken nuggets to tempura vegetables, meets quality standards effortlessly.

Mixes and Controls Batter Viscosity

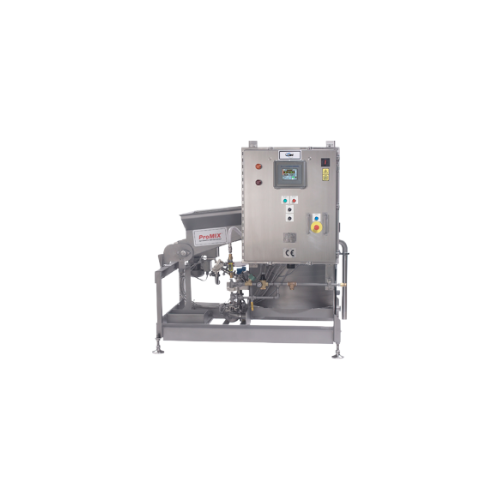

The Stein ProMix™ Batter Mixer from FoodTech Solutions is an automatic system designed to optimize the mixing and viscosity control of batters for poultry, meat, and seafood applications. This equipment is distinguished by its precise control of batter consistency, ensuring uniform coating on products like chicken nuggets, fish fillets, and tempura vegetables. It operates using a centrifugal style batter transfer pump and a pressure transducer for viscosity monitoring, allowing for continuous, efficient production. Capable of mixing approximately 3,000 lbs. per hour, it features a 55-gallon refrigeration-jacketed mixing tank, which helps maintain optimal temperature for batter quality. Integration into your production line is streamlined with PLC controls and automatic feeding systems for dry mix and water. Engineered for durability and reliability, it is constructed with special mixing tank baffles for enhanced cooling and quick mixing action. The ProMix ensures your operations meet high standards of efficiency and consistency, crucial for large-scale food processing operations.

Benefits

  • Ensures consistent product quality by maintaining precise batter viscosity.
  • Increases production efficiency with continuous, automatic operation.
  • Minimizes energy usage with integrated refrigeration for optimal batter temperature.
  • Enhances process flexibility with adjustable mix ratios for various batter types.
  • Simplifies integration with existing production lines through PLC-controlled automation.

General


Applications
Seafood,Batters,Meat,Coatings,Tempura-style batters,Poultry
End products
Chicken nuggets,Breaded chicken wings,Meatballs,Tempura chicken broccoli,Tempura vegetables,Battered chicken strips,Breaded shrimp,Fish fillets,Tempura prawns,Fish sticks
Steps before
Grinding,Mixing
Steps after
Coating
Input ingredients
dry batter mix,water,non-leavened batters,lightly leavened tempura style batter ingredients
Output ingredients
mixed batter,consistent batter mix for coating
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Automation
Fully automatic
Capacity
3,000 lbs./hour
Mixing Speed
1,800 RPM
Viscosity Control
Pressure transducer style
Refrigeration Capacity
60,000 BTU
Mixing Tank Volume
55 gallon
Mixing Method
Single impellor shaft driven
Transfer Pump Type
Centrifugal style
Control System
PLC Controls

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Continuous
Cleaning method
CIP (Clean-in-Place)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Batter type
Non-leavened and lightly leavened tempura

Physical Characteristics


Mixing Tank Size
55 gallon
Refrigeration Jacket
60,000 BTU
Mixing Method
Shaft driven,single impellor
Footprint
Compact
Baffles
Special tank baffles for efficient mixing
Transfer Pump
Centrifugal style
Mixing Capacity
3,000 lbs/hour

Custom Options


Control panel type
PLC Controls
Mix ratio control
Automatic viscosity control
Integration possibilities
Batter recirculation to multiple applicators
Refrigeration type
60,000 BTU refrigeration jacketed
Mixing method
Shaft driven 1,800 RPM single impellor
Batch operation capacity
Approximately 3,000 lbs./hour
