Automated quesadilla production system

Streamline your quesadilla production with a high-speed system designed to efficiently fill, fold, and form various ingredient combinations while ensuring consistent quality and taste across every batch.

Fills, Folds, and Forms Quesadillas

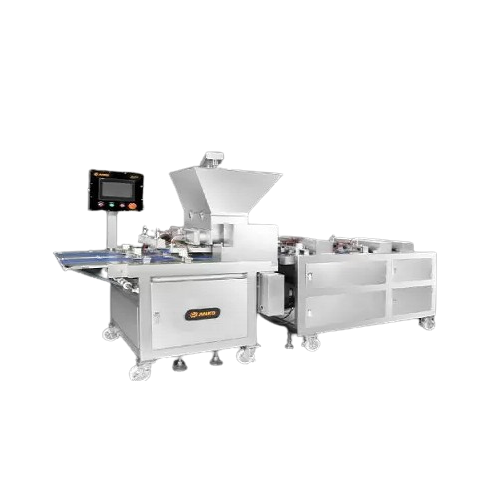

The QS-2000 Quesadilla Making Machine from ANKO is engineered to enhance food production efficiency with its dual-line system, capable of producing 2,000 quesadillas per hour. This equipment stands out with its process that conveys, fills, folds, presses, and forms tortillas into beautifully crafted quesadillas. It accommodates a variety of fillings, such as chicken, beef, vegetables, and cheese, without compromising texture, making it ideal for applications in snacks, sweets, frozen foods, and ethnic cuisines. Suitable for food factories and catering operations, the QS-2000 integrates seamlessly into high-speed, automated production lines. Its robust design features customizable folding molds and a unique pressing mechanism that ensures even filling distribution. With rigorous construction standards, the machine operates efficiently within a food manufacturing environment, aiding in labor-saving solutions and boosting product consistency, all while maintaining high sanitation standards for easy cleaning and maintenance.

Benefits

  • Increases production efficiency by outputting up to 2,000 quesadillas per hour.
  • Minimizes labor costs through fully automated filling and forming operations.
  • Ensures consistent product quality with dual roller pressing for even filling distribution.
  • Accommodates a wide range of filling ingredients while preserving their texture.
  • Customizable molds allow for adaptive production to meet specific product specifications.

General


Applications
Wraps,Ethnic foods,Snacks,Sweets,Frozen foods
End products
Beef and cheese quesadillas,Grilled chicken and veggie quesadillas,Spicy pork quesadillas,Chicken quesadillas,Vegetable and cheese quesadillas
Steps before
Tortilla Preparation,Ingredient Preparation,Ingredient Chopping,Tortilla Placement on Conveyor
Steps after
Quality Inspection,Cooling,Packaging,Labeling,Distribution
Input ingredients
tortillas,chicken,beef,vegetables,cheeses
Output ingredients
quesadillas,5-inch quesadillas,6-inch quesadillas
Market info

Technical Specifications


Capacity
2,000 pcs/hr
Product dimension
125–153 (L) x 62–77 (W) x 9.5–13 (H) mm
Suggested wrapper size (Dia.)
5–6 inches
Product weight
42–75 g (varies depending on ingredient of filling)
Filling hopper capacity
60 L
Air consumption
220 L/min (@ 5 kg/cm²)
Power
2.4 kW
Min. space required
3,260 (L) x 1,300 (W) x 1,920 (H) mm

Operating Characteristics


Working mechanism
Automated filling,folding,pressing,and forming system
Integrated steps
Dual-line production system
Batch vs. continuous operation
Inline Continuous
Automation level
Fully Automated with Safety Sensors
Cleaning method
Manual

Material Compatibility


Cleanability
Easy clean surfaces
Corrosive resistance (e.g. acids)
Stainless steel components
Density/particle size
Various food fillings
Abrasion resistance
Durable construction

Physical Characteristics


Machine footprint
3,260 (L) x 1,300 (W) x 1,920 (H) mm
Product dimension
125–153 (L) x 62–77 (W) x 9.5–13 (H) mm
Product weight
42–75 g
Tortilla size
5–6 inches
Filling hopper capacity
60 L
Net machine weight
1,200 kg

Custom Options


Customizable Folding Molds
Yes
Control Panel Type
Touch Screen / PLC-based
Integration Possibilities
IoT Applications / Production Line Integration
