Auto bakery tray depositor for creams and batters

Efficiently deposit precise quantities of creams and batters with high-speed accuracy, minimizing waste and maintaining consistency in your bakery production line.

Deposits Creams and Batters Efficiently

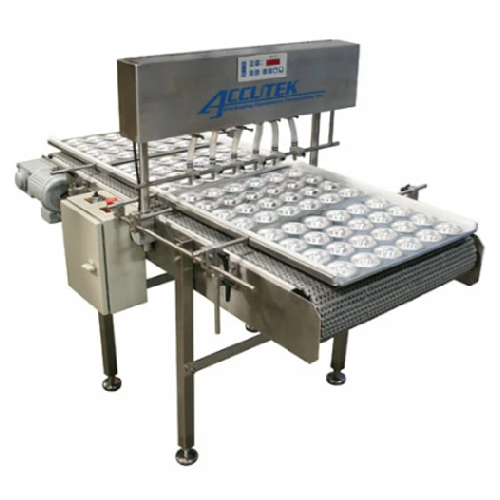

The Auto Bakery Tray Depositor from Accutek Packaging employs a timed flow volumetric filling principle that is designed to deposit creams and batters swiftly and precisely, handling up to 100 doses per minute. This machine is tailored for food manufacturers, commercial bakeries, and specialty food producers, offering a comprehensive solution for depositing a diverse range of products from cupcake batters to hollandaise sauce. Featuring six stainless steel filling heads, each with individual flow controls, it tackles the challenge of sanitary filling with minimal contact parts, ensuring ease of cleaning and maintenance.

Operators benefit from a microprocessor controller with job memory, allowing for adaptable operation across multiple tray sizes. Materials such as stainless steel nozzles and food-grade tubing reinforce its durability and food safety standards. Optional enhancements include additional filling heads, a gravity or pressurized tank, and a heated package for molten product filling, extending its versatility. The depositor’s positive displacement pump with pinch valves and quick exchange sanitary manifold support seamless integration into production lines while maintaining high throughput and operational efficiency.

Benefits

  • Enhances production speed with up to 100 doses per minute, maximizing operational efficiency.
  • Ensures sanitary processes with minimal contact parts, streamlining cleaning and maintenance routines.
  • Offers flexibility for multiple tray sizes, accommodating diverse product lines with ease.
  • Reduces labor costs with easy-to-operate microprocessor controls and job memory.
  • Supports the precise and consistent deposition of a wide range of food products, ensuring high-quality end results.

General


Applications
Specialty products,Creams,Food products,Batters
End products
Pancake batter,Fruit mousse,Whipped cream,Hollandaise sauce,Béchamel sauce,Dessert creams,Muffin batter,Flavored yogurt,Custard,Cupcake batter,Yogurt parfait fill,Cheesecake filling,Cake batter,Marshmallow cream,Chocolate ganache,Cream cheese frosting
Steps before
Mixing,Ingredient preparation
Steps after
Baking,Cooling,Packaging
Input ingredients
creams,batters
Output ingredients
deposited creams,deposited batters
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Product Speed
Up to 100 doses per minute
Dose Size
1oz – 16oz (30mL – 475mL)
Length
60” (83.8 cm)
Depth
37.5” (10.1 cm)
Height
51.5” (33 cm)
Weight
Approx. ~192 lbs. (20.4 kg)
Electrical
110 VAC or 220/240 VAC Single Phase,20 Amp
Air Requirements
80 PSI @ 1 CFM
Heated Product Capability
YES
Particulate Handling
YES (up to 1/8”)

Operating Characteristics


Working mechanism
Timed flow volumetric filling
Speed
Up to 100 doses per minute
Cleaning method
Easy clean,minimal contact parts
Automation level
Microprocessor controller with job memory
Adjustability
Adjustable to multiple tray sizes
Product handling
Heated package for molten product filling

Material Compatibility


Cleanability
Toolless sanitary stainless steel manifold
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Food grade tubing
Density/particle size
Particulates up to 1/8”

Product type Characteristics


Container size and shape adaptability
Adjustable to multiple tray sizes

Physical Characteristics


Machine footprint
Length
Height
51.5” (130.81 cm)
Weight
Approx. 192 lbs (87.09 kg)
Tank type
Gravity or pressurized tank
Mobility
Casters for mobility
Discharge method
Stainless steel nozzles
Customizable tray size
Adjustable to multiple tray sizes

Custom Options


Control panel type
Microprocessor with job memory
Integration possibilities
Fiber optic activation
Additional filling heads
Yes
Tank type
Gravity or pressurized
Heated package
For molten product filling
Mobile pump cart
With casters
