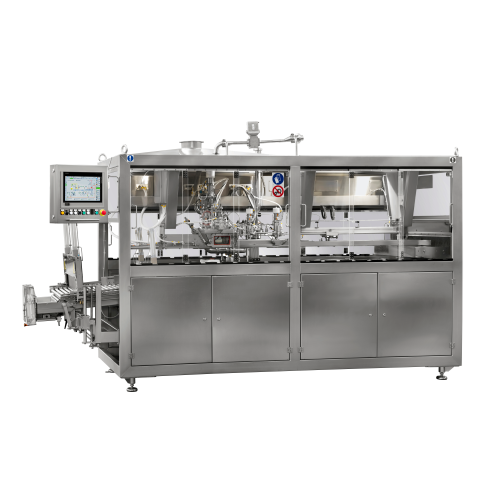

Aseptic filling system for bag-in-box packaging

Efficiently fill a range of liquid products into pre-sterilized bags while maintaining sterility and flexibility, catering to diverse packaging needs with its advanced aseptic technology.

Fills and Sterilizes Liquid Products Aseptically

The JET Aseptic Filler from FBR ELPO offers a fully automatic solution for aseptic filling in bag-in-box applications. Built entirely from stainless steel, it fills pre-sterilized bags ranging from 1.5 to 20 liters. This equipment is ideal for milk, cream, juices, and concentrates, ensuring sterility with minimal chemical use via a sealable sterilization tunnel. Achieving a throughput of up to 600 bags per hour, its flexible design accommodates various spout types and positions, enhancing compatibility with existing packaging systems. Integration with remote diagnostics allows real-time monitoring and support, while its energy-efficient operations maintain sterility with reduced air and steam usage, making it an asset for high-speed, continuous production lines in the food, beverage, and dairy industries.

Benefits

  • Enhances packaging line efficiency with high-speed filling up to 600 bags per hour.
  • Ensures product safety and quality with robust aseptic processing and minimal chemical use.
  • Accommodates a wide range of spout configurations for versatile packaging solutions.
  • Offers real-time monitoring and support via remote diagnostics, minimizing maintenance disruptions.
  • Reduces operational costs with energy-efficient sterilization processes.

General


Applications
Cream,Fruit juice concentrates,Natural fruit juices,Milk,Low acid liquids,Ice-cream basis,High acid liquids,Tea
End products
Heavy cream cartons,Green tea bags,Tomato juice,Apple juice concentrate pouches,Lemonade concentrate,Ice-cream mix packs,Orange juice boxes,Whole milk cartons,Herb-infused waters
Steps before
Pre-sterilization,Product preparation
Steps after
Sterilization,Packing
Input ingredients
milk,cream,ice-cream basis,natural fruit juices,fruit concentrates,tea,low acid products,high acid products
Output ingredients
sterilized filled bags,aseptic filled bags,filled bags with spouts
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Filling range
Bags of 1.5–20 litres
Operating speed
Up to 600 bags/h
Dimensions
Width
Filling accuracy
±0.5% of filled volume (min. ±30 ml)
Product Filling Temperature
From +5°C up to +45°C

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Continuous
Cleaning method
CIP / SIP with steam
Changeover time
Flexible with various spouts
Energy efficiency
Low consumption of steam and chemicals

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Yes
Cleanability
Yes

Product type Characteristics


Product type
Milk,cream,ice-cream base,fruit juices,tea
Container shape
Bags with spouts positioned centrally or in a corner

Physical Characteristics


Material
Stainless steel
Machine footprint
1.300 mm x 3.700 mm
Height
2.870 mm
Bag size compatibility
1.5 – 20 L
Bag type
BAG IN BOX
Spout type
Short neck / Long neck

Custom Options


Control panel type
PLC-controlled
Sterilization method
Chemical/Steam
Spout compatibility
Short neck / Long neck
Bag size compatibility
1.5 L to 20 L
Automation level
Fully automatic
Remote assistance
Internet connectivity for diagnostics
