Ampoule washing, filling, and sealing line

Streamline your ampoule production with an integrated washing, filling, and sealing solution designed to handle multiple small volume injections efficiently, ensuring optimal sterility and product integrity.

Processes Ampoules from Washing to Sealing

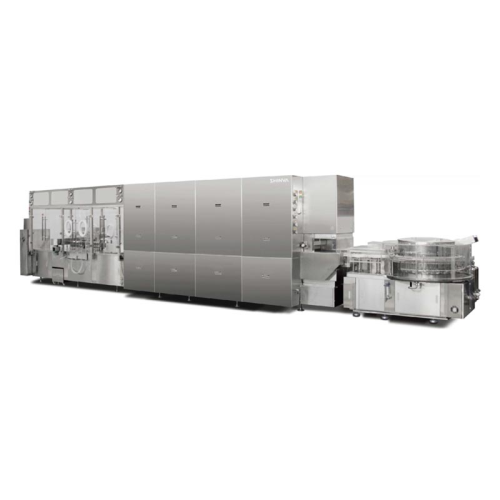

The AQCL series vertical ultrasonic washer, ASMR tunnel hot air sterilization oven, and AGF series vertical filling and sealing machine are integrated into Shinva’s Ampoule Washing, Filling, and Sealing Linkage Line. This sophisticated system, ideal for pharmaceutical and biotech industries, automates the entire process chain from washing to sealing ampoules and vials. Utilizing precise ultrasonic washing, efficient hot air sterilization, and high-accuracy filling and sealing, it caters specifically to small volume injections like ampicillin and saline ampoules. It supports operations in injection workshops with its high-speed automatic processes. Capable of functioning independently or as a continuous line, it features PLC control for seamless operation integration, ensuring high throughput and reduced contamination risk. The equipment supports various pharmaceutical products while maintaining GMP compliance, offering material options in corrosion-resistant finishes. Its design promotes efficient cleaning and maintenance, integral to sustaining production uptime. Additionally, customization options and engineering support are available to match specific production needs.

Benefits

  • Streamlines production with continuous, high-speed processing to maximize throughput.
  • Ensures contamination-free ampoule preparation with precise ultrasonic washing and hot air sterilization.
  • Reduces labor costs through fully automated PLC-controlled operations.
  • Supports a wide range of pharmaceutical applications, enhancing production versatility.
  • Maintains compliance with GMP standards for quality assurance in pharmaceutical manufacturing.

General


Applications
Small volume injection,Ampoule injection,Pharmaceutical products,Antibiotics bottle injection
End products
Norepinephrine ampoules,Lidocaine ampoules,Vitamin b12 vials,Multivitamin ampoules,Gentamicin vials,Ampicillin ampoules,Sterile water ampoules,Erythromycin antibiotic vials,Penicillin vials,Saline ampoules
Steps before
Water spraying,Ultrasonic washing,Preheating
Steps after
Cooling,Sealing,Automatic light inspection,Automatic packaging
Input ingredients
ampoule,antibiotics bottle,small volume injection solutions,water,air
Output ingredients
sterilized ampoule,filled ampoule,sealed ampoule,sterilized antibiotics bottle,filled antibiotics bottle,sealed antibiotics bottle
Market info
Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.

Technical Specifications


Capacity
1–20 ml ampoule
Automation
Automatic production and conveying
Filling speed
More than 20 procedures in a linked line
Washing method
Water spraying,ultrasonic washing
Drying and sterilizing type
Hot air sterilization oven
Operating independence
Areas can work independently
Production type
Ampoule injection and antibiotics bottle injection
Air handling for filling
Front and back air filling
Packaging type
Automatic packaging of ampoule products

Operating Characteristics


Automation level
Automatic
Process steps
Washing,drying,sterilizing,filling,sealing
Batch vs. continuous operation
Batch
Cleaning method
Ultrasonic washing
Integrated steps
Water spraying,ultrasonic washing,bottle clamping
Linked operation
Linked compact line for more than 20 procedures

Material Compatibility


Abrasion resistance
Suitable for glass ampoules
Biological compatibility
Pharmaceutical grade
Cleanability
CIP (Clean-in-Place) compatible
Corrosive resistance (e.g. acids)
Compatible with sterilizing agents
Density/particle size
N/A for liquid injections

Physical Characteristics


Footprint
Compact design for space efficiency
Machine Configuration
Vertical assembly
Tank Size
Suitable for 1-20ml ampoule
Bottle Size Compatibility
1-20 ml ampoules and antibiotic bottles
Conveyor Type
Automatic conveying
Sections and Components
Washing area,drying and sterilizing area,filling and sealing area

Custom Options


Control panel type
HMI / Touch screen / PLC
Integration possibilities
Linked compact line / Stand-alone operation
Process customization
Washing,drying,filling,sealing
Volume accommodation
1-20 ml ampoule injections
