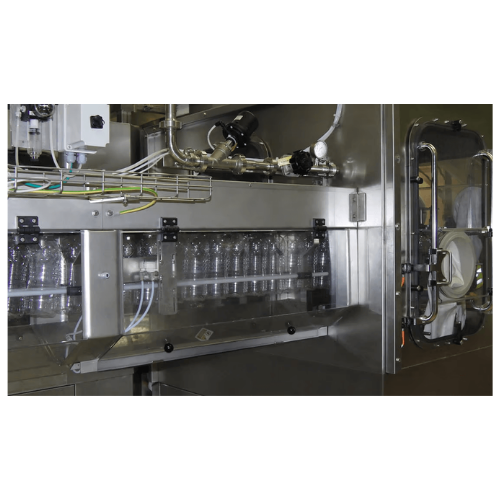

Air conveyor for empty Pet bottles

Optimize your bottling line with an advanced air conveyor that reduces energy consumption by 30% and minimizes bottle jams, ensuring seamless handling from blowing to filling, even for sensitive beverages.

Transports and Sterilizes Bottles Efficiently

The Convair 2000 from GEA is an air conveyor designed for the efficient transport and sterilization of PET and HDPE bottles in high-speed beverage and dairy production lines. Utilizing GEA’s unique blowing system, it features precise air jets directed at bottle neck rings, generating an air cushion that substantially reduces friction. This results in a 30% reduction in energy consumption and minimizes the incidence of bottle jams. The conveyor’s design includes closely spaced inspection windows for manual cleaning, with an optional fully automated CIP system for aseptic applications. Suitable for a variety of end-products including mineral water, milk, and juice bottles, the Convair 2000 supports continuous and automated operations. It integrates seamlessly with existing line setups, offering different operational speeds controlled by frequency converters. Available in three versions—BASIC, PROCLEAN, and ASEPTIC—it allows for various filtration levels to match your specific hygiene requirements. With low friction material guides and options for pneumatic guide adjustments, maintenance is straightforward and efficient.

Benefits

  • Lowers operational costs with a 30% reduction in energy use.
  • Enhances productivity by minimizing bottle jams and downtime.
  • Ensures product safety with optional aseptic configurations.
  • Eases integration with quick changeover options for diverse bottle sizes.
  • Simplifies maintenance through accessible design and optional automated cleaning systems.

General


Applications
Beverages,Milk-based drinks,Sensitive beverages,Pet containers,Hdpe containers,Dairy products
End products
Plant-based beverage bottles,Protein shake bottles,Mineral water bottles,Soft drink pet bottles,Flavored milk bottles,Juice bottles,Milk bottles,Yogurt drink bottles
Steps before
Bottle Blowing,Decontamination,Sterilization
Steps after
Filling,Capping,Packing,Sterilization
Input ingredients
empty PET bottles
Output ingredients
filled PET bottles
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Power Consumption Reduction
30%
Blowing Station Frequency
1 every 14 meters
Bottle Neck Size Compatibility
28 mm to 38 mm
Automation
PLC-controlled
Air Cushion Design
Reduces friction and bottle jams
Filter Class (BASIC Model)
G3 (UNI 779)
Filter Class (PROCLEAN Model)
H11 (UNI 779) after basic filter
Filter Class (ASEPTIC Model)
Triple (G3,H11,H13) achieving 99.99% DOP
Speed Settings
Nominal,fast recovery,accumulation
Material of Construction
Stainless Steel (ASEPTIC Model)
Integrated CIP System
Optional high pressure nozzles

Operating Characteristics


Working mechanism
Air cushion design
Integrated steps
Blowing to filling process
CIP/SIP
Optional CIP system with high pressure nozzles
Batch vs. continuous operation
Inline Continuous
Automation level
PLC with intelligent air flow modulation
Changeover time
Quick neck guide change with clip-on guides
Energy efficiency
Reduces power consumption by 30%
Cleaning method
Manual and automated CIP system

Material Compatibility


Abrasion resistance
Low friction bottle guides
Biological compatibility
Aseptic applications
Cleanability
Easy to clean
CIP system available
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Handling a wide range of bottle sizes (28 mm to 38 mm)

Product type Characteristics


Container size
28 mm to 38 mm neck sizes

Physical Characteristics


Machine footprint
Compact design
Blowing slots
Unique design for reduced friction
Frame type
Open or closed frame depending on model
Neck guide size
28 mm to 38 mm
AIR conveyor versions
BASIC,PROCLEAN,ASEPTIC

Custom Options


Blowing slots configuration
Customizable air cushion design
Bottle neck guide size
28 mm to 38 mm ('clip-on guides')
Blowing chamber cleaning
Manual access / Automated CIP system
Frame type
Open / Closed stainless steel
Filtration system
Basic / Double / Triple (G3,H11,H13)
Speed control
Frequency converters for modulation
Neck guide change
Quick change (clip-on guides)
Pneumatic guides
Optional for automatic format change-over
