Air classifier for fine to medium-fine separation
In industries where precise particle separation is critical, achieving high fineness with minimal energy consumption and wear can be challenging. Traditional systems often fail to deliver the required performance within acceptable energy and maintenance costs.
Classifies particles with high precision and reduced energy

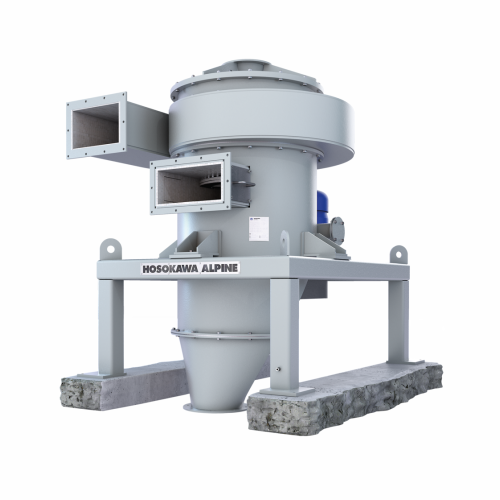

The Stratoplex ASP II by Hosokawa Alpine is a highly efficient air classifier designed for fine to medium-fine particle separation. This classifier offers reduced wear and lower energy requirements thanks to an optimized design. It operates with an air volume flow ranging from 2,500 to 64,000 Nm³/h and handles particle sizes down to d97 = 10 μm. By utilizing ceramic coatings and improving the separator wheel, this system lowers operating speeds by up to 20%, resulting in less wear and energy consumption. The Stratoplex ASP II is particularly effective for applications involving feldspar, quartz, nepheline, and wollastonite, among others.
Benefits
- Lower energy consumption due to optimized design
- Reduced wear with ceramic coatings
- High precision separation at fine particle sizes
- Efficient air volume flow up to 64,000 Nm³/h
- Suitable for various materials such as feldspar and quartz
