Advanced lollipop forming system

Craft diverse lollipop shapes with precision and efficiency, reducing downtime with rapid changeovers and integrated cleaning systems, making it perfect for boosting production capabilities and product variety in high-speed confectionery lines.

Forms and Shapes Diverse Lollipop Varieties

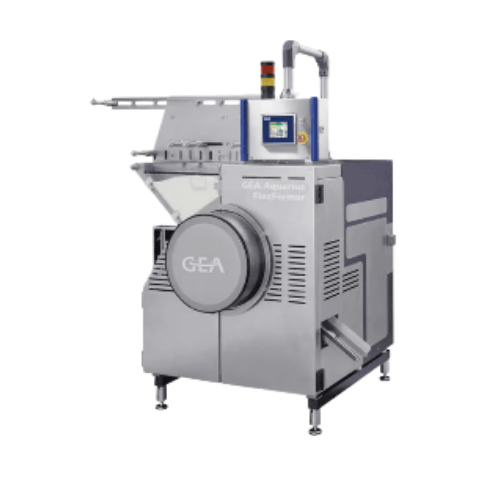

The GEA Aquarius FlexFormer is a versatile lollipop forming machine ideal for confectionery manufacturers seeking precision and efficiency in producing diverse lollipop styles. This equipment stands out for its capability to form and shape ball, 3D, and center-filled lollipops using a sugar rope detection system that ensures perfect formation with minimal waste. Applications include producing perfectly shaped ball lollipops and gourmet 3D designs, making it essential for food and confectionery industries.

The FlexFormer seamlessly integrates into your production line with its easy exchange format parts, allowing quick transitions between sizes and shapes, minimizing downtime to less than an hour. With automated high-speed operations, the machine supports continuous processing, supported by a PLC system that enhances operational control and integration. Maintenance is simplified by the Clean-In-Place (CIP) system, reducing cleaning time to approximately 20 minutes, ensuring hygiene and efficiency.

The robust construction includes an auto-lubrication system and machine damage protection package, ensuring reliability and less downtime. By preserving the integrity of lollipop designs, the FlexFormer guarantees high-quality output, ready for immediate cooling and wrapping in various styles. Overall, the GEA Aquarius FlexFormer offers confectionery producers an engineering solution that combines flexibility, precision, and efficiency, making it a key component in modern lollipop production.

Benefits

  • Minimizes downtime with quick changeover between lollipop sizes and shapes.
  • Enhances production efficiency through continuous, high-speed operation.
  • Ensures hygienic production with a fast, effective Clean-In-Place system.
  • Protects product quality with precise shaping and filling capabilities.
  • Lowers maintenance needs with robust machine protection and auto-lubrication.

General


Applications
Sweets,Ball lollipops,Center-filled lollipops,3d lollipops
End products
Center-filled fruit-flavored lollipops,Perfectly shaped ball lollipops,Fancy shaped lollipops,Gourmet 3d lollipops
Steps before
Sugar rope preparation,Ingredient mixing
Steps after
Cooling (PopCooler B SC or HC),Lollipop wrapping
Input ingredients
sugar rope,center filling,stick
Output ingredients
ball lollipop,3D lollipop,fancy lollipop,center filled lollipop
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
PLC-controlled
Changeover time
Less than 1 hour
CIP availability
Optional
Cleaning time
20-30 minutes
Heating requirement
95°C

Operating Characteristics


Working mechanism
Sugar rope detection
Automation level
PLC
Changeover time
< 1 hour
CIP/SIP
Optional CIP
Cleaning method
CIP
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Control panel type
PLC with touch screen
Machine housing
Closed
Shape formation
Ball,Flat,3D lollipops
Exchange set time
Less than 1 hour
Cleaning system
CIP (Clean-In-Place)
CIP Time
Approximately 20 minutes

Custom Options


Control panel type
PLC and touch screen
Integration possibilities
Remote service (optional)
Changeover time
Less than 1 hour
CIP (Clean-In-Place) unit availability
Optional
