X-ray food inspection system for loose products
Ensure contaminant-free loose products by integrating a versatile inspection system capable of detecting metals, bone, glass, and dense plastics with precision, maintaining high production efficiency and food safety standards.
Detects and Rejects Contaminants in Loose Products

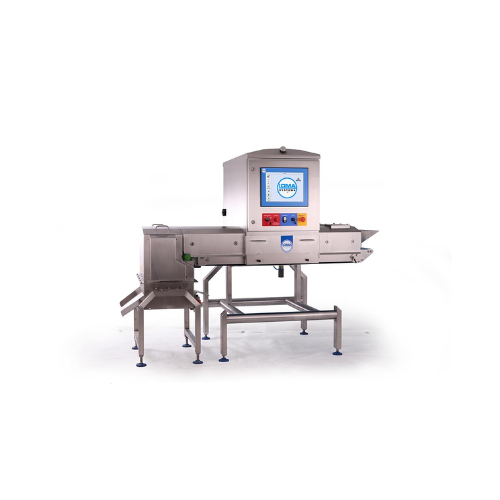

The X5 Bulk Flow X-ray Inspection System from Loma Systems is designed for food manufacturers seeking to improve product safety by detecting and rejecting contaminants in loose products. Utilizing a 0.4mm detector array coupled with Loma’s Adaptive Array Technology (AAT), this system offers unparalleled detection accuracy for bone, metal, glass, stone, dense plastics, and ceramics. Capable of inspecting products ranging from cereals and grains to snacks and jerky, the X5 Bulk Flow supports continuous, high-speed processing environments. With multiple reject options like single-flap, multi-flap, and carriage retraction, it minimizes waste during contaminant rejection. The IP66-rated stainless steel construction ensures durability and hygiene, while features such as a quick-release belt and 15” touchscreen facilitate easy cleaning and operation. Seamlessly integrates into existing production lines with variable line height options, offering supply voltages from 85 to 265 V, and supports data retrieval via USB or Ethernet for robust reporting and monitoring.
Benefits
- Enhances product quality and safety by accurately detecting a wide range of contaminants.
- Minimizes product waste with customizable reject options tailored to your production needs.
- Saves time and labor with easy-to-clean components like the quick-release belt and removable reject station.
- Fits seamlessly into your production environment, thanks to its compact size and variable line height options.
- Ensures high-speed operation efficiency with an IP66-rated design that withstands demanding production conditions.
- Applications
- Grains,Food to go,Snacks,Convenience food,Confectionery,Meat,Egg,General industries,Cereals,Nuts,Dairy,Vegetables,Dried foods,Poultry,Fish,Fruit
- End products
- Oatmeal,Jelly beans,Potato chips,Dehydrated fruits,Chicken nuggets,Powdered egg products,Cheese slices,Fish fillets,Quinoa,Cornflakes,Beef jerky,Granola,Rice,Chocolate-coated snacks,Cashews,Almonds,Muesli base flakes,Ready-to-eat meals,Pre-packaged salads,Trail mix,Mixed nuts,Raisins
- Steps before
- Sorting,Cleaning
- Steps after
- Packing,Quality Assurance
- Input ingredients
- cereals,grains,loose products,free flowing products,dried foods,fruit,vegetables,nuts
- Output ingredients
- contaminant-free cereals,contaminant-free grains,contaminant-free loose products,contaminant-free free flowing products,contaminant-free dried foods,contaminant-free fruit,contaminant-free vegetables,contaminant-free nuts
- Market info
- Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.
- Speed Range
- Up to 80 m/min
- System Length
- 2087 mm
- Line Height Option
- 750 | 800 | 850 | 900 | 950 | 1000 mm (+50/ - 25 adjustment)
- Product Height
- 60 mm (recommended max)
- Belt Width
- 500 mm
- Belt Type
- PU Anti-static
- X-Ray Output
- 200 W (40kV 5 mA)
- IP Rating
- IP66
- Supply Voltages
- 85 to 265 V,single phase 50/60Hz,neutral,Earth
- Operating Environment
- 10 to 35°C,2 to 10°C with automatic cabinet warm-up enabled
- Cooling
- Vortex
- Detection Type
- X-ray
- X-Ray Safety
- Leakage less than 1 μSv/h
- Data Retrieval
- Via USB,Ethernet
- Automation level
- PLC
- Cleaning method
- Quick Release Belt
- Cleaning method
- Manual / Easy Removal
- IP Rating
- IP66
- Batch vs. continuous operation
- Inline Continuous
- Reject options
- Single-flap / Dual-flap / Multi-flap / Carriage Retract
- Hygiene focus
- High
- Quick access for maintenance
- Yes,Quick Release Belt
- Abrasion resistance
- Yes
- Cleanability
- Quick release belt for easy cleaning
- Corrosive resistance (e.g. acids)
- 304 Brushed stainless steel
- Biological compatibility
- Designed for food safety
- Density/particle size
- Various loose food products
- Compatibility with Loose Products
- Cereals,Grains,Nuts
- Contaminant Detection
- Bone,Metal,Glass,Stone,Dense Plastics
- Free Flowing Product Suitability
- true
- Reject Option Flexibility
- Single-flap,Dual-flap,Multi-flap,Carriage retracting band
- Hygiene Compatibility
- IP66 Ingress Rating
- Size Compatibility
- Small Compact Footprint
- FDA compliance
- Likely,for food safety
- Compact footprint
- Small,optimized for space savings
- Control panel type
- 15” touchscreen
- Discharge method
- Carriage retract,multi-flap reject options
- Belt type
- PU Anti-static
- Belt width
- 500 mm
- System length
- 2087 mm
- Line height option
- 750 | 800 | 850 | 900 | 950 | 1000 mm(+50/ - 25 adjustment)
- Material of construction
- 304 Brushed stainless steel
- Control panel type
- 15” touchscreen
- Discharge method
- Removable reject station
- Footprint
- Small compact footprint
- Reject options
- Single-flap,dual-flap,multi-flap,carriage retract
