Wine tank agitator for homogeneous mixing

Achieve precise mixing and uniform temperature distribution in your wine production with a side-entry agitator designed for maintaining suspension consistency and facilitating efficient gasification processes.

Mixes, Blends, and Homogenizes Wine Efficiently

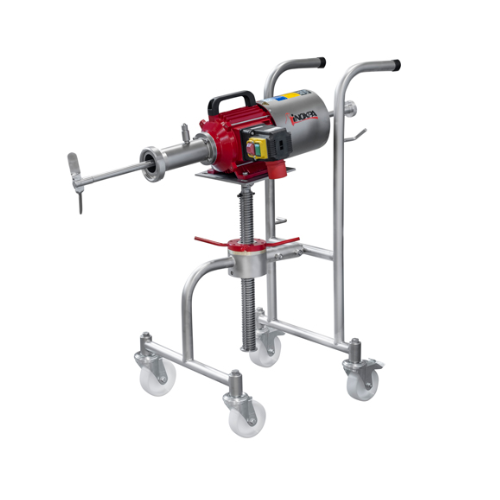

The CPG Side-entry Agitator by INOXPA is designed for winemaking facilities and the broader beverage industry. This equipment facilitates essential processes such as mixing, blending, gasification, and homogenization, crucial for producing consistent high-quality wines, including red, white, sparkling, and fruit-infused varieties. Its side-entry design allows for efficient integration into wine tanks, minimizing product loss with a full bore valve. Operating with a folding propeller mechanism, it seamlessly blends ingredients and maintains wine quality across various production phases. Capable of both manual and continuous operations, the agitator supports high-speed processing, ensuring rapid and uniform mixing. Constructed from 1.4404 (AISI 316L) stainless steel, it offers corrosion resistance, while the optional stainless steel trolley ensures flexibility in operations. Compliance with EC standards for control panel and protection further positions this agitator as a reliable choice for modern winemaking needs. Customizable features such as different shaft lengths and connection types provide tailored solutions for diverse production requirements.

Benefits

  • Enhances product consistency with efficient mixing and homogenization.
  • Minimizes product loss through full bore valve integration.
  • Offers flexibility for diverse operations with variable shaft lengths and connections.
  • Ensures durability and corrosion resistance with stainless steel construction.
  • Supports continuous high-speed operation, increasing productivity.

General


Applications
Beverages,Wine
End products
Rosé wine,Cabernet sauvignon,Non-alcoholic wine,Chardonnay,Wine blends,Red wine,Sauvignon blanc,Pinot noir,Fruit-infused wines,Merlot,White wine,Sparkling wine
Steps before
Grapes Crushing,Must Fermentation,Juice Extraction
Steps after
Aging,Bottling,Wine Quality Control
Input ingredients
wine,SO2,CO2
Output ingredients
blended wine,gasified wine,homogenised wine
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Operating Speed
1450 rpm (50 Hz),1700 rpm (60 Hz)
Motor Voltage
3 ph,230 V,400 V,460 V
Motor Protection
IP 55
Surface Finish
Matt
Material of Construction (Contact Parts)
1.4404 (AISI 316L)
Mechanical Seal
C/StSt/EPDM,TuC/TuC/FPM
Connection Standard
DIN 11851.CLAMP OD
Shaft Type
Folding Propeller

Operating Characteristics


Working mechanism
Shaft with folding propeller
Automation level
Manual / PLC
CIP/SIP
Manual or CIP compatible
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual

Material Compatibility


Corrosive resistance (e.g. acids)
1.4404 (AISI 316L)

Product type Characteristics


Container compatibility
Tanks with full bore valve
Mixing efficiency
Efficient maintenance of solids in suspension

Custom Options


Control panel type
Compliant with EC standards
Motor connection type
CLAMP OD
Propeller type
Folding propeller type 12
Material contact parts
1.4404 (AISI 316L)
Shaft length
Special shaft length option
Trolley type
Stainless steel trolley
Seal type
Mechanical seal TuC/TuC/FPM
Valve type
Valve for product injection,drainage or sampling
