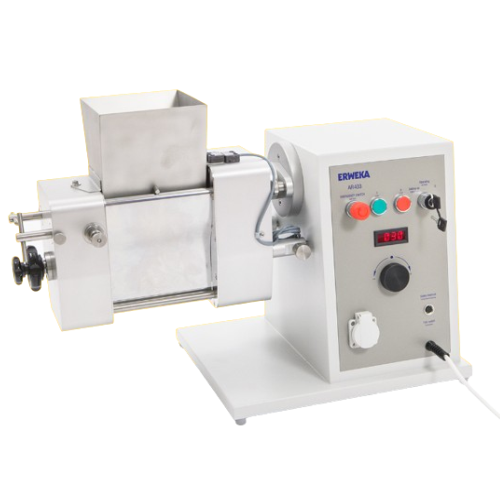

Wet granulator for pharmaceutical applications

Achieve precise granule consistency with advanced oscillating rotor technology, enhancing tablet formulation and supplement production efficiency.

Processes Wet Granules for Consistent Particle Size

The Wet Granulator FGS II from ERWEKA GmbH enhances pharmaceutical and chemical production by ensuring precise granule size through its oscillating rotor design. This granulator is ideal for creating uniform effervescent tablets and vitamin granules, accommodating a variety of material sieves from 0.315 mm to 3.15 mm to achieve desired particle sizes. Capable of processing up to 30 kg/h, the equipment integrates smoothly into manual or batch processing lines, suitable for pilot operations. Constructed with stainless steel components, it guarantees durability and compliance with industry standards. Safety features, like the emergency stop function, and optional specialized sieves allow for customization to meet specific production needs.

Benefits

  • Ensures consistent product quality with precise granule size control.
  • Enhances flexibility in production lines with multiple sieve size options.
  • Increases safety with built-in emergency stop features.
  • Offers durability and compliance in corrosive environments with stainless steel construction.
  • Facilitates customizable production solutions with a range of specialized sieves available.

General


Applications
Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Granules,Pharmaceuticals
End products
Multivitamin granules,Antioxidant tablets,Vitamin c granules,Probiotic capsules,Effervescent tablets,Amino acid tablets,Calcium tablets,Protein supplement capsules,Coated aspirin tablets,Herbal supplement granules
Steps before
Mixing,Pelletisation,Grinding,Coating
Steps after
Drying,Tablet Pressing,Filling,Dosing,Polishing
Input ingredients
raw materials,substances for wet granulation,powder mix,material for granulating
Output ingredients
wet granules,granulated product,pellets,granules of varying sizes
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Granulation type
Wet
Rotor type
Oscillating
Material
Stainless steel
Capacity
Max 30 kg/h
Mesh size
0.315,0.63,0.8,1.0,1.25,1.6,2.0,2.5,3.15 mm
Emergency stop
Yes

Operating Characteristics


Working mechanism
Oscillating rotor
Batch vs. continuous operation
Batch
Granule size control
Sieve mesh
Safety features
Emergency stop

Material Compatibility


Cleanability
Stainless steel

Physical Characteristics


Footprint
Compact design
Material
Stainless steel
Capacity
Max. 30 kg/h
Mesh sizes
0.315 mm to 3.15 mm
Emergency stop
Yes

Custom Options


Sieve mesh size
0.315,0.63,0.8,1.0,1.25,1.6,2.0,2.5,3.15 mm
Material
Stainless steel
Emergency stop option
Available
Working capacity
Max 30 kg/h
Additional sieves
Available on request
