Wafer cone cooling table

Need consistent cooling and alignment of ice cream cones and wafers? This solution provides seamless integration into your production line, ensuring precise handling and optimal preparation for downstream processes like sleeving or stacking. Perfect for high-speed operations seeking efficiency and product quality.

Cools and Aligns Cones for Further Processing

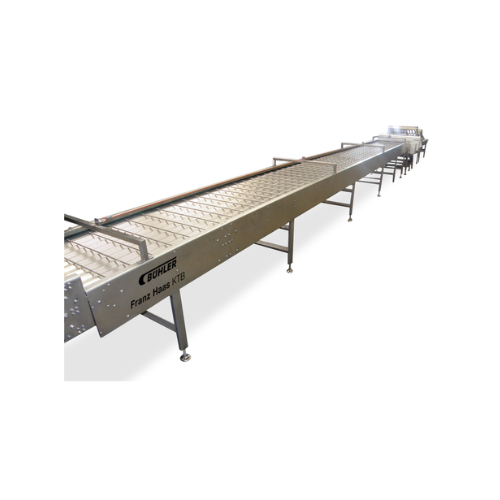

The Franz Haas KTB Wafer Cone Cooling Table by Bühler Group is designed for food processing companies looking to optimize their confectionery production lines. This equipment excels in cooling and aligning ice cream cones, wafer rolls, and more, making them ready for sleeving or packaging. Utilizing ambient temperature cooling, it operates continuously and efficiently with multiple transportation lanes, ranging from four to fourteen, to match production speed. Integration with automated sleeving machines is seamless, enhancing throughput without additional labor. Its precise lane alignment allows for immediate detection of any missing products, ensuring consistent quality. Constructed from robust materials for durability in high-speed operations, the KTB cooling table caters to ice cream manufacturers and baked goods producers requiring reliable and efficient final conditioning solutions.

Benefits

  • Enhances production efficiency with multi-lane operation, adapting to varying output requirements.
  • Ensures product quality and consistency through precise alignment and immediate detection of missing cones.
  • Reduces labor needs by seamlessly integrating with automatic sleeving machines.
  • Optimizes space and energy use by cooling at ambient temperature without additional energy input.
  • Supports high-speed production lines in food and confectionery industries efficiently.

General


Applications
Wafers,Confectionery,Baked goods,Ice cream cones
End products
Wafer biscuits,Cake cones,Sugar cones,Wafer sheets,Wafer rolls
Steps before
Baking,Cooking
Steps after
Sleeving,Packing
Input ingredients
ice cream cones
Output ingredients
cooled ice cream cones,sleeved ice cream cones
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Lane Options
4 to 14 lanes
Cooling Temperature
Ambient temperature
Automation
Can be combined with automatic sleeving machine
Monitoring
Guiding rails for easy monitoring

Operating Characteristics


Cooling method
Ambient temperature cooling
Lane configuration
4 to 14 transportation lanes
Monitoring capability
Easy monitoring with guiding rails
Integration capability
Compatible with automatic sleeving machine
Positioning system
Horizontal guiding rails for alignment

Material Compatibility


Biological compatibility
Food-grade materials
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
N/A for cones

Product type Characteristics


Product type
Ice cream cones

Physical Characteristics


Footprint
Customizable with 4 to 14 lanes
Transportation Lanes
4–14 lanes
Cooling Method
Ambient Temperature
Control Panel Type
Manual monitoring via guiding rails
Discharge Method
Guiding rails align cones for discharge
Cooling Table Size
Variable,depends on number of lanes

Custom Options


Transportation lanes
4 to 14 lanes
Sleeving integration
Automatic sleeving machine compatibility
Guiding rails alignment
Precise lane alignment for easy monitoring
