Volumetric single-screw feeder for fine dosing

Achieve precise and consistent dosing of fine powders and granules with a compact, volumetric single-screw feeder, designed for seamless integration into bench-top operations and manual processes.

Dispenses Powders and Granulates with Precision

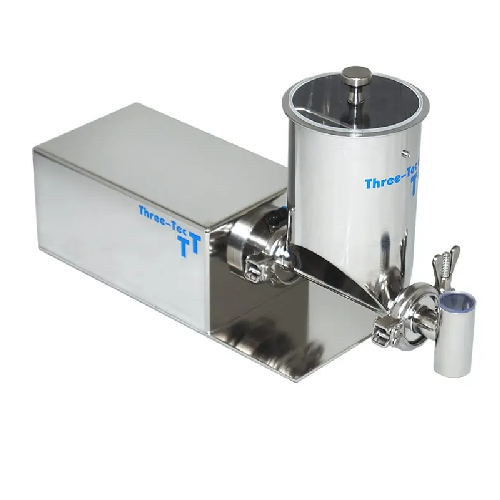

The ED 12 from Three-Tec is a volumetric single-screw feeder designed for precision dosing of small, free-flowing particles such as powders, flakes, and granulates. This feeder excels in applications requiring fine dosing, commonly used in the pharmaceuticals, fine chemicals, and food industries. It supports both horizontal and vertical discharge, addressing different spatial setups within a line. With a capacity of 2.4 to 35 liters per hour, depending on the motor type, it is adaptable for varying production needs.

Specialized for bench-top operations, the ED 12 is well-suited for laboratory and small-scale production environments. It features a streamlined design without a bridge breaker, ideal for products with particle sizes up to 2 mm. The system is reliable and easy to integrate, making it perfect for manual operations. Available with either an AC three-phase motor or a stepper motor, it provides flexibility in operation speeds, aiding in precise control over process requirements. Additionally, its compact build allows seamless incorporation into existing setups, ensuring efficient process management without extensive modifications.

Benefits

  • Ensures precise dosing, minimizing waste and maximizing material efficiency.
  • Integrates easily into existing systems, reducing setup time and costs.
  • Compact design supports bench-top operations, ideal for labs and small-scale productions.
  • Flexibility in operation speeds accommodates varied material types and processing requirements.
  • Reliable performance with minimal maintenance needs, enhancing operational uptime.

General


Applications
Supplements,Fine chemicals,Fibers,Agglomerates,Nutraceuticals,Granulates,Powders,Flakes,Pharmaceuticals
End products
Omega-3 fish oil capsules,Vitamin c granules,Instant coffee granules,Iron fortification granules,Microcrystalline cellulose flakes,Protein supplement powders,Collagen peptides,Alginates,Fumed silica agglomerates,Calcium carbonate powder
Steps before
Grinding,Purification,Drying
Steps after
Packing,Coating
Input ingredients
powders,flakes,fibers,granulates,agglomerates
Output ingredients
fine dosing,small,free-flowing products
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Throughput with AC three-phase motor
2.4-35 l/h
Throughput with stepper motor
0.05-31 l/h
Ø Metering tools
12 mm
Dosing hopper content with AC three-phase motor
3 l
Dosing hopper content with stepper motor
1 l
Weight
≈ 6 kg (without control)
Speed with AC three-phase motor
up to 560 min-1 (depending on gearbox)
Speed with stepper motor
1-500 min-1
Particle size limitation
2 mm
Dosing type
Volumetric

Operating Characteristics


Working Mechanism
Single Screw Feeding
Intervention Protection
Yes
Discharge Orientation
Horizontal/Vertical
Automation Level
Manual / Motor-driven
Fine Dosing Capability
Suitable for small,free-flowing products
Throughput Control
Adjustable by motor type
Batch vs. Continuous Operation
Batch
Particle Size Limit
Up to 2 mm
Material Compatibility
Powders,Flakes,Fibers,Granulates,Agglomerates

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material type
Powders,flakes,fibers,granulates,agglomerates

Physical Characteristics


Machine footprint
Compact design
Discharge method
Horizontal or vertical
Weight
≈ 6 kg (without control)
Metering tools diameter
12 mm
Dosing hopper capacity
3 l (AC motor) / 1 l (stepper motor)

Custom Options


Discharge method
Horizontal or vertical discharge
Control panel type
Intervention protection
