Vibratory bottom discharge system for bulk materials

Ensure consistent flow of challenging bulk materials with a vibratory bottom discharge system, optimizing energy efficiency and maintaining reliable discharge from storage silos and vessels.

Activates and Discharges Bulk Materials

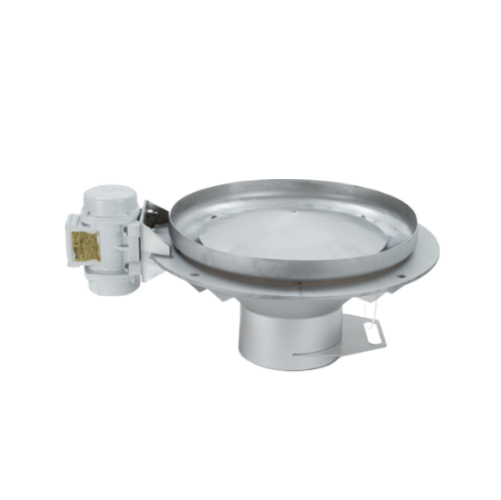

The VB Vibratory Discharge Bottom from Zeppelin Systems is engineered to optimize material flow for industries managing challenging bulk materials. This equipment excels in activating the discharge of non-fluidizable substances from silos and vessels through its robust vibration mechanism. It’s ideal for applications in the plastics, rubber, tire, food, and chemical industries, handling end-products like polypropylene and rubber pellets, snack food powders, and chemical powder compounds. The device integrates seamlessly into continuous processing operations and complements dosing units such as downstream rotary feeders.

Constructed from 1.4307 stainless steel, it offers temperature resistance from -10°C to 80°C and boasts a low-maintenance design. The solid structure, incorporating a welded relief cone and vertical buffering suspension rings, ensures consistent load absorption and vibration. Its compliance with ATEX standards for explosion protection enhances operational safety. The VB Discharge Bottom connects to other system components via a sleeve and connecting nozzles, creating a closed, freely vibrating system that guarantees reliable material handling. Customization options like the vibratory hopper without a relief cone and various connection kits provide flexibility for specific operational needs.

Benefits

  • Ensures reliable bulk material flow, minimizing blockages and downtime.
  • Integrates seamlessly with downstream dosing equipment for precise material handling.
  • Low maintenance requirements reduce operational costs and improve system uptime.
  • Provides robust performance in explosive environments, meeting ATEX standards.
  • Offers customization flexibility, accommodating diverse operational and material needs.

General


Applications
Food industry,Chemical industry,Bulk materials,Tire industry,Plastics,Rubber,Non-fluidizable materials
End products
Snack food powders,Chemical powder compounds,Dry paint pigments,Rubber pellets,Tire granules,Sugar granules,Polypropylene pellets,Detergent powders
Steps before
Material Storage,Weighing,Feeding
Steps after
Dosing,Material Distribution,Emergency Slide Valve Activation
Input ingredients
bulk materials,poorly-flowing materials,non-fluidizable materials
Output ingredients
discharged materials,material flow from silos,material flow from vessels
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Temperature resistance
-10° to 80°C
Material
1.4307 stainless steel
Output size options
180 and 250
Explosion proof
Up to 1.5 bar (g)
Vibration method
Uniform vibration via support ring

Operating Characteristics


Working Mechanism
Vibration activation
Integrated Steps
Emergency slide valve
Discharge Device Type
Vibratory bottom
Batch vs. Continuous
Continuous
Automation Level
Manual
Temperature Resistance
-10° to 80°C
Explosion-proof Rating
Up to 1.5 bar (g)

Material Compatibility


Corrosive resistance (e.g. acids)
1.4307 stainless steel

Physical Characteristics


Discharge method
Vibratory bottom
Material
1.4307 stainless steel
Temperature resistance
-10° to 80°C
Output sizes
180 and 250
Motor type
Unbalanced motor
Sleeve material
Woven composite material
Explosion-proof rating
Up to 1.5 bar (g)
Buffering suspension type
Vertical buffering suspension rings
Connection method
Bored support ring (mating flange)
System configuration
Closed and freely vibrating

Custom Options


Discharge method
Vibration-activated
Material of construction
1.4307 stainless steel
Temperature resistance
-10° to 80°C
Explosion-proof rating
Up to 1.5 bar (g)
Mounting system
Bored support ring (mating flange)
Output sizes
180 mm and 250 mm
Buffer suspension
Vertical buffering suspension rings
