Vial inspection system for pharmaceutical industry
Ensure vial integrity by detecting and rejecting contaminants, glass defects, and dosage errors with precise optical and X-ray inspection, safeguarding pharmaceutical quality and safety.

Inspects and Detects Defects in Vials

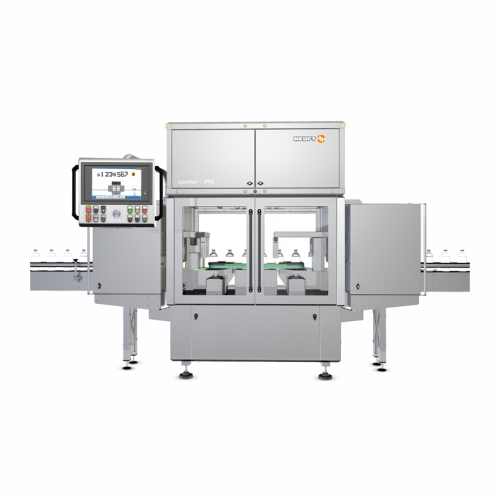

The HEUFT spotter II PHL is a sophisticated inspection system designed by HEUFT SYSTEMTECHNIK for pharmaceutical and biotech applications, ensuring safety and integrity in vial packaging. This system distinguishes itself with a combination of superior optics and pulsed X-ray technology, providing comprehensive defect and foreign matter detection in vials ranging from 20 ml to 1000 ml. It efficiently identifies issues like glass splinters, closure leaks, and dosage deviations in products such as vaccines, antibiotics, and lyophilized powders. With the capacity to inspect up to 250 vials per minute, this highly automated system integrates seamlessly into existing production lines, featuring a user-friendly interface and remote monitoring capabilities. Meeting stringent FDA and GMP standards, the system offers both operational reliability and minimal maintenance requirements, with features like a servo-controlled conveyor for easy brand changes and self-explanatory audiovisual guidance through HEUFTNaVi. Optional modules and configurations are available to tailor the system to specific inspection needs, ensuring both high performance and adaptability in high-speed manufacturing environments.
Benefits
- Ensures product safety by reliably detecting foreign matter and defects, reducing recall risks.
- Increases production efficiency with the ability to inspect up to 250 vials per minute.
- Minimizes labor costs with automated brand changeovers and intuitive user guidance.
- Complies with FDA and GMP standards for trusted quality assurance.
- Lowers maintenance expenses with straightforward program changes and no wear-prone parts.
- Applications
- Parenteral drugs,Chemicals,Liquid formulations,Pharmaceutical powder,Biopharmaceuticals
- End products
- Insulin vials,Vaccines,Nutritional supplements,Liquid emulsions,Chemical reagents,Antibiotics,Protein biologics,Lyophilized injectable powders,Oncology drugs,Iv solutions
- Steps before
- Filling,Vial Preparation
- Steps after
- Sterilization,Packing
- Input ingredients
- vials,primary packaging material,liquid products,powder,granules,lyophilised products,emulsions,suspensions,parenteral drugs,APIs,glass containers
- Output ingredients
- inspected vials,faulty vials,clean vials,correctly filled vials,safe packaging,contaminated vials
- Market info
- HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.
- Capacity
- 250 full vials/min,20 ml - 1000 ml each
- Detection type
- X-ray / Optical
- Automation
- Highly automated,PLC-controlled
- Filling volume
- 20 ml – 1000 ml
- Filling accuracy
- ± specific guidelines not provided
- Foreign object detection
- Glass splinters,metal pieces
- Efficiency
- Space-saving straight-through construction
- Radiation technology
- Pulsed X-ray with minimal radiation
- Inspection coverage
- 360° All-around inspection
- Rejection system
- Single-segment and multi-segment
- Automation Level
- Highly Automated
- Batch vs. Continuous Operation
- Inline Continuous
- Changeover Time
- Automatic,Fast
- CIP/SIP
- Not Applicable
- Energy Efficiency
- Optimized
- Fault Rejection System
- Single-segment and Multi-segment Rejection
- Inspection Coverage
- 360° All-around Inspection
- X-ray Technology
- Pulsed X-ray Technology
- Cleaning Method
- Designed for Hygiene
- Product Monitoring and Self-tests
- Regular Self-tests and Product Monitoring
- Network Technologies
- Real-time Data Transmission
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container size
- 20 ml - 1000 ml
- Container material
- Glass
- Product type
- Liquid,powder,granules,lyophilised products
- Closure type
- Flip off closures,crimp caps
- Inspection type
- 360° closure inspection,filling quantity check
- Defect type
- Foreign matter,glass defects,dosing errors
- Detection type
- X-ray,optical
- Filling accuracy
- Precise fill level detection
- Capability
- Detection of glass splinters,metal pieces
- Footprint
- Space-saving straight-through construction
- Vial size range
- 20 ml to 1000 ml
- Inspection capacity
- Up to 250 vials per minute
- Control panel type
- Touchscreen user interface
- Control panel type
- Self-explanatory audiovisual interface
- Integration possibilities
- Network connection for remote diagnosis
- Automation level
- Highly automated with AI capabilities
- Adaptability
- Automatic adjustment for brand changes
- Footprint
- Compact,space-saving straight-through construction
