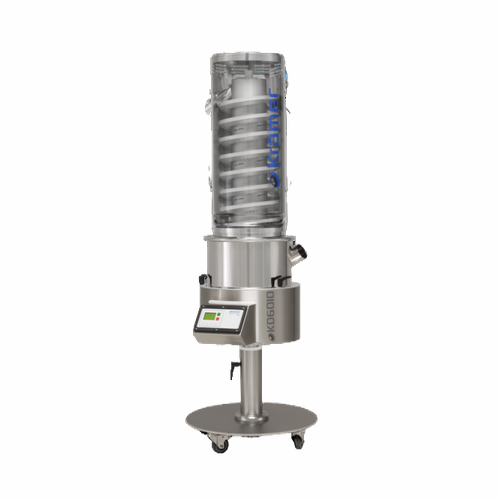

Vertical vibratory tablet deduster for pharmaceutical tablets
Ensure optimal cleanliness and quality assurance for tablets and capsules by effectively removing dust and burrs during production, enhancing the reliability and efficacy of the final product.
Dedusts and Conveys Tablets and Capsules
The KD70A Series from Krämer AG is designed for efficient dedusting and conveying of tablets and capsules in the pharmaceutical, nutraceutical, and vitamin industries. This vertical vibratory deduster integrates seamlessly into your production line, using a gentle vibratory mechanism to remove excess dust while maintaining product integrity. Suitable for a wide range of tablet sizes, from standard aspirin and vitamin C tablets to micro-tablets, the KD70A Series ensures compliance with industry standards, including GMP and SMEPAC certification, and meets ATEX guidelines for dust containment. Its continuous operation capability, paired with an automatic control system, enhances throughput while minimizing manual intervention. Constructed from high-grade stainless steel, this equipment offers excellent corrosion resistance, ensuring longevity and reliability. The system supports quick cleaning protocols and easy maintenance to minimize downtime. Flexible integration options and engineering support allow customization to match specific production requirements, making it an indispensable addition to your facility.
Benefits
- Ensures high product quality by effectively removing dust and debris.
- Increases production efficiency with continuous operation and minimal manual intervention.
- Enhances safety and compliance by meeting GMP, SMEPAC, and ATEX standards.
- Offers flexibility and scalability through customizable integration options.
- Minimizes maintenance costs with robust construction and easy cleaning processes.
- Applications
- Vitamins,Nutraceuticals,Tablets,Capsules,Pharmaceuticals
- End products
- Ibuprofen tablets,Effervescent vitamin d tablets,Multivitamin capsules,Vitamin c tablets,Herbal supplement capsules,Probiotic capsules,Fish oil capsules,Calcium tablets,Omega-3 capsules,Aspirin tablets
- Steps before
- Tablet Compression,Capsule Filling
- Steps after
- Sterilization,Packaging,Coating,Inspection
- Input ingredients
- tablets,mini/micro-tablets,effervescent tablets,capsules,special shapes,Ø 3-35 mm tablets,Ø 1.5-3 mm mini/micro-tablets,Ø 25-35 mm effervescent tablets,size 4-00 capsules
- Output ingredients
- dedusted tablets,polished capsules,deburring tablets,conveyed tablets,conveyed capsules
- Market info
- Kraemer is known for designing and manufacturing customized engineered-to-order equipment for industrial applications, leveraging advanced engineering expertise to deliver high-quality, reliable solutions tailored to meet specific client needs in various sectors.
- Deduster Capacity
- Up to 10,000 tablets/min
- Capsule Polisher Capacity
- Up to 420,000 capsules/hr
- Conveyor Type
- Horizontal and Upward
- Tablet Sizes
- Ø 3-35 mm
- Mini/Micro-tablet Sizes
- Ø 1.5-3 mm
- Effervescent Tablet Sizes
- Ø 25-35 mm
- Capsule Sizes
- 4-00
- Compliance
- SMEPAC Certified
- ATEX Certification
- Yes
- Automation
- Manual/Automatic Control
- Metal Detection
- Optional
- Working mechanism
- Vertical vibratory dedusting
- Integrated steps
- Dedusting,deburring,upwards conveying
- Automation level
- Manual / PLC
- Cleaning method
- Manual / CIP
- Batch vs. continuous operation
- Batch
- CIP/SIP
- Optional CIP
- Changeover time
- Quick
- Energy efficiency
- High
- Compatibility with high containment environments
- Yes
- SMEPAC certification
- Yes
- ATEX guidelines compliance
- Yes
- Customer-specific systems
- Available
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- ATEX certification
- Yes
- SMEPAC certification
- Yes
- Machine footprint
- Compact
- Feed method
- Horizontal and upward conveying
- Discharge method
- Upwards conveying
- Basket size
- For tablet sizes Ø 3-35 mm
- Cone size
- For capsule sizes 4-00
- Control panel type
- PLC-controlled
- Integration possibilities
- Compatible with tablet press,capsule filling,and packaging lines
- Compact footprint
- Space-saving design
- Discharge method
- Manual / Automatically controlled distribution
